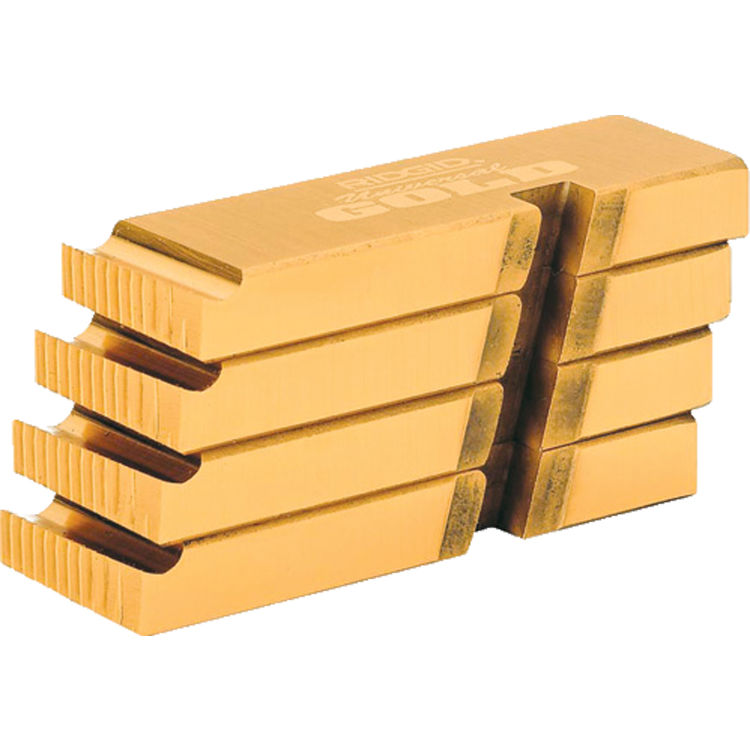

RIDGID 57082 BSPP GOLD HS SS RH cut 1/2 to 3/4 inch 14 TPI Universal Dies

SKU: 96795

$179.57/ea
Save 26% · Retail: $243.70

  Available to Ship in 1-2 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 1-2 weeks
$179.57/ea

About the Ridgid 57082

RIDGID 57082 one half to three quarter inch BSPP (Nominal Pipe Size) - 14 TPI (Threads Per Inch) Titanium Nitride Coated Gold High Speed Right Hand Cut dies are compatible RIDGID British Universal Die Heads (Nos. 504A, 811A, 815A, 816, 817, 856, 911 and 913). The Die Heads can be mounted onto several different threading machines also from RIDGID The Dies in the head can be easily changed and if the Die Head is mounted to a machine the Die Head does not need to be removed from the machine for die changes. Dies have notches designed into them that will click into position inside the die head with its spring balls that catch the die and allow the operator to easily know when the dies are correctly installed in the Universal Die Head. And the die blades are designed with a two-step cut method which provides a very stable bite into the pipe, allowing any external coating to be removed as the pipe is cut at the same time. Dies from RIDGID are marked for easy identification of the type of pipe and the sizes they are designed to cut for easy identification. Dies are crafted from tool steel and designed for right hand cutting of threads.

Product Details

Manufacturer: Ridgid
Trade Tools: Plumbing
Style: Die Set
Product: Parts and Accessories
Mpn # 57082
Weight 1.45 lbs.

Product Features

  • With 27 mm-wide profiling dies, the load is reduced, which makes it easy on the motor of a threading machine
  • Notches in the dies click into position against spring balls in the die head for easy confirmation the dies are installed correctly
  • 1/2 - 3/4 Inch Pipe Size
  • Oil-Less Gold Dies
  • For use With 1210 Oil-Less Threading Machine
  • Right Hand Thread
  • Universal
  • BSPT and BSPP
  • Not for use With any other Ridgid Equipment
  • Full Lifetime Warranty
  • 14 Threads per Inch
  • Requires British Model Die Head
  • Threading size, thread length, and microfine adjustment of thread diameter can all be adjusted easily
  • Dies can be changed without removing the die head from the machine
  • Dies are crafted from tool steel and coated with Titanium Nitride
  • Marked for easy identification of the type of pipe and the sizes they are designed to cut for easy identification
  • Two-step blade provides a stable bite allowing you to remove any external coating and cut the pipe at the same time
