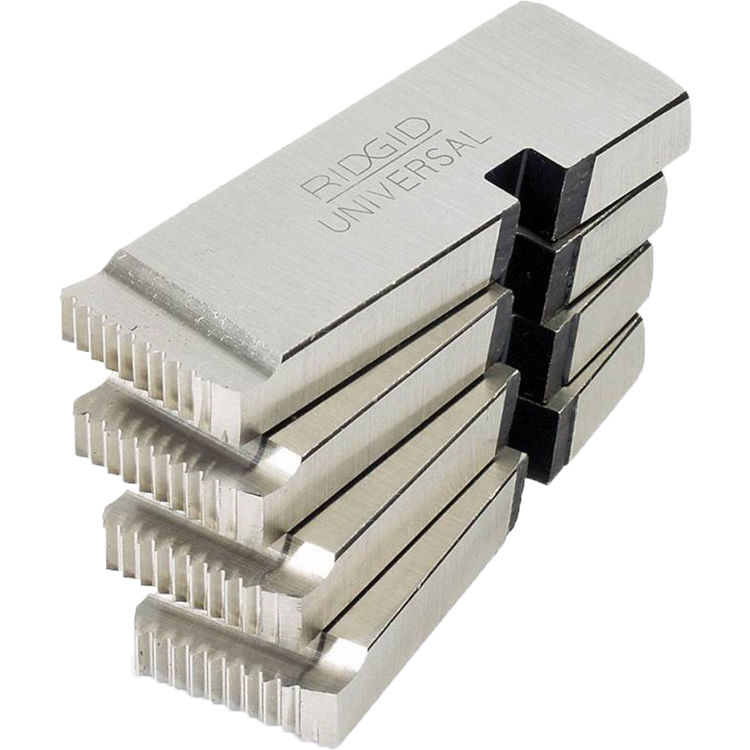

RIDGID 67915 Rod Size 3/4 inch 10 TPI, BSW, RH, High Speed Universal Dies

SKU: 96858
$ 233.11 / ea
Save 26% · Retail: $316.35

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 1-2 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 1-2 weeks
$233.11/ea

About the RIDGID 67915 Rod Size 3/4 inch 10 TPI, BSW, RH, High Speed Universal Dies

RIDGID 67915 Rod Size of three quarter inch BSW (British Standard Whitworth and Imperial based screw thread standard) - 10 TPI (Threads Per Inch) Right Hand Cut, High Speed dies are designed as Bolt dies and are compatible with RIDGID Universal Die Heads (Nos. 504A, 711, 811A, 816, 817 and 911 Die Heads). The Die Heads can be mounted onto several different threading machines also from RIDGID The Dies in the head can be easily changed and if the Die Head is mounted to a machine the Die Head does not need to be removed from the machine for die changes. Dies have notches designed into them that will click into position inside the die head with its spring balls that catch the die and allow the operator to easily know when the dies are correctly installed in the Universal Die Head. And the die blades are designed with a two-step cut method which provides a very stable bite into the pipe, allowing any external coating to be removed as the pipe is cut at the same time. Dies from RIDGID are marked for easy identification of the type of pipe and the sizes they are designed to cut for easy identification. Dies are crafted from tool steel and designed for right hand cutting of threads.

Manufacturer: Ridgid
Trade Tool Type: Plumbing
Style: Die Set
Product: Parts and Accessories
Mpn # 67915
Weight 1.43 lbs.
  • 3/4 Inch Rod Size
  • 10 Threads Per Inch
  • Right Hand Thread
  • BSW (British Standard Whitworth)
  • High-Speed
  • Bolt Dies for Universal Die Heads (Nos. 504A, 711, 811A, 815A, 816, 817 and 911 Die Heads)
  • Requires British Model Die Head
  • Full Lifetime Warranty
  • Same Dies available from Wheeler Rex
  • With 27 mm-wide profiling dies, the load is reduced, which makes it easy on the motor of a threading machine
  • Dies can be changed without removing the die head from the machine
  • Marked for easy identification of the size bolts they are designed to cut for easy identification
  • Notches in the dies click into position against spring balls in the die head for easy confirmation the dies are installed correctly
