36X14 White Return Air Grille – Shoemaker 1075

SKU: 128474

$63.74/ea

In Stock and Ready to Ship! (May quick-ship direct from manufacturer)

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

36X14 White Return Air Grille – Shoemaker 1075

SKU: 128474
$63.74/ea


Ships From Price Qty
Order From Manufacturer
Available to Ship in 8-10 days
$63.74/ea

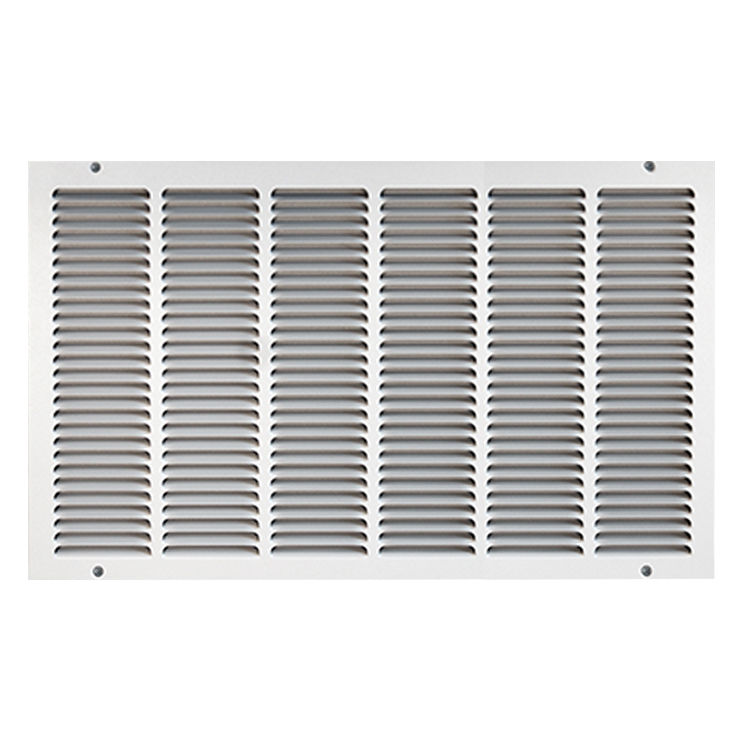

About the Shoemaker 1075-36X14

This White 36" x 14" Shoemaker 1075 Series Heavy-Duty Return Air Grille is designed to fit and cover a 36" wide by 14" high opening. This is the heavy-duty version of the Shoemaker 1050. Shoemaker has a complete line of products designed for homes, offices, stores, and many other commercial applications. The quality and simplicity of this return air grille are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. The Shoemaker 1075 Series Heavy-Duty Return Air Grille is built from cold roll steel. Its angular louvers are spaced a half-inch apart. For extra durability, gussets are fully welded to the back of the mullions. For best duct concealment, the louvers are installed in up or down position. Multiple sizes of the grille are available to match the desired dimensions. The standard color of this grille is soft white but it is also available in driftwood tan. Optional designer colors and plated metal finishes are also available. The Shoemaker 1075 Series Baseboard Return Air Grille can be ordered with “F” Torx center pin tamper-proof screws for added security. Be sure to measure the hole opening size instead of measuring the face plate of your old grille. This grille is designed to cover a 36" x 14" existing hole or duct. Refer to the Specification Sheet for more information.

Product Details

Product: Vents and Terminations
Manufacturer: Shoemaker
Use: Ducting and Venting
Mpn # 1075-36X14
Weight 20.16 lbs.

Product Features

  • Optional tamper-proof screws
  • Optional designer colors: almond, black velvet, bronze, Camaro silver, coffee tan, Navajo white, vanilla.
  • Optional plated metal finishes: antique brass, black nickel, oil rub bronze, pewter, polished brass, polished chrome, satin nickel
  • Standard colors are soft white and driftwood tan
  • 1/2 Inch Spacing Dual Angular Louvers
  • Countersunk Mounting Holes For Flush Appearance With Color Matching Phillips Posi-Drive Screws
  • For Applications Where Greater Air Volume Is Required
  • Install With Louvers In the Up or Down Position For Best Duct Concealment
  • Mullions Are Reinforced With Stiffeners For Greater Strength

Reviews

4.5 out of 5 rating is our rating for PlumbersStock, we got that rating because we have lots of experience and great people with expertise in plumbing. BUT WE WANT YOUR HELP. This product doesn't have any reviews yet, and we don't want to write our own reviews. It is more valuable to us that the customers get to share their experience with our products. Please, if you have any experience with this product, take a moment to share and help someone else who is trying to make a decision. Thank you!

Questions & Answers

*PLUMBERSSTOCK EXPERT* responded:

We are glad to know about your interest in the Shoemaker 1075. According to Shoemaker, the OD of their FG series will be nominal plus 2 3/4. For reference, please check this Series Submittal Sheet. They do not have a filter grille with a 1/2" frame. So an FG-36" X 14" will have an OD of 38 3/4" X 16 3/4". You may want to check out the Shoemaker 905FG1. To know more about this model, please check this Submittal Sheet. For additional information, Shoemaker provides a filter grille for a duct size of 36" X 14". The size of the filter to fit this will determine if it fits or not. That makes it dependent on where it is made. Some filters are undersized to fit a 36" X 14" filter grille or will not fit at all. If this is what you're looking for, feel free to click "Add to Cart" and put your postal code and you're ready to go. The Shoemaker 905FG1 is not yet in our system but updating of information is ongoing. Just have the product number ready and call one of our customer support specialists at 435-868-4020 or send a message by pressing the "Contact Us" tab found on the bottom right part of your screen. Have a fantastic day!
