32X32 White Vent Cover (Steel) – Shoemaker 1560 Series

SKU: 141138

 Free Shipping!

Manufacturer stocks, ships quickly!

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

32X32 White Vent Cover (Steel) – Shoemaker 1560 Series

SKU: 141138

Ships From Price Qty
Order From Manufacturer
Manufacturer stocks, ships quickly!

About the Shoemaker 1560-32X32

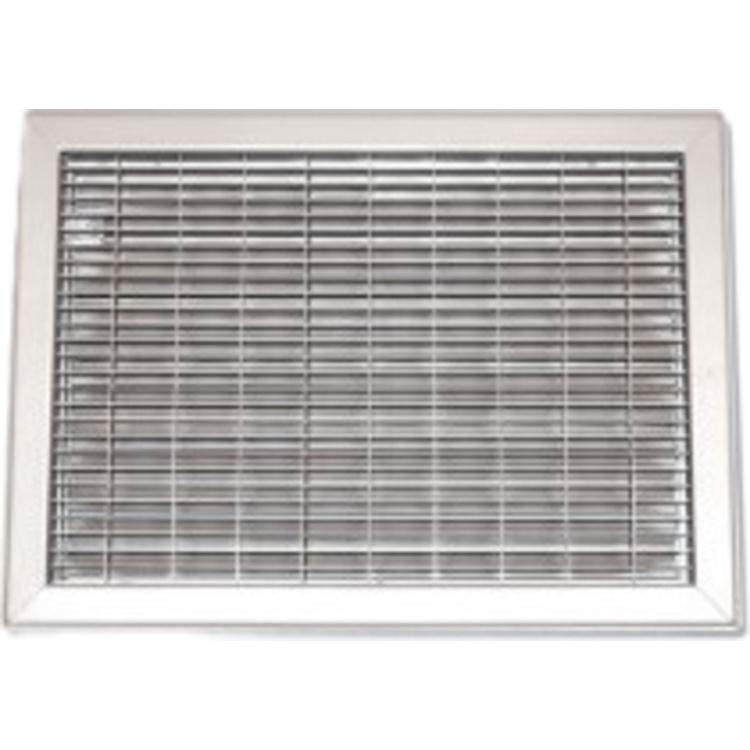

This Soft White 32" x 32" Shoemaker 1560 Series Vent Cover is designed to fit and cover a 32" wide by 32" high opening. Shoemaker has a complete line of products designed for homes, offices, stores, and many other commercial applications. The quality and simplicity of this bar register are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. The Shoemaker 1560 Series Gym Grade Bar Register (0° deflection) is of gym-grade construction, with extra bar supports and a welded core for heavy-duty applications. For added durability, it is also designed with a honeycomb construction that has an anti-shock property, giving it optimum weight-to-load bearing capacity and bending strength that helps support foot traffic. This register has fixed bars at 0° deflection. The blades on this bar register run parallel to the longest dimension. For a smooth appearance, it has countersunk mounting holes with Phillips posi-drive screws with colors that match the vent cover. The Shoemaker 1560 Series Gym Grade Bar Register (0° deflection) comes with a recessed screwdriver-operated opposed blade damper. It is used to regulate the airflow through linked sections of adjacent blades that rotate in the opposite direction. Compared to other damper types, an opposed blade damper maintains a more even airflow. It also provides better control over the airflow in all operating positions. A recessed screwdriver-operated damper prevents any unnecessary adjustments of the damper setting. The standard color of this grille is soft white, but it is also available in driftwood tan and designer colors. The Shoemaker 1560 Series Gym Grade Bar Register (0° deflection) can be ordered with "F" Torx center pin tamper-proof screws for added security. Be sure to measure the hole opening size instead of measuring the face plate of your old grille. This grille is designed to fit over a 32" x 32" existing hole or duct. Refer to the Specification Sheet for more information.

Product Details

Product: Air Grille and Registers
Manufacturer: Shoemaker
Use: Ducting and Venting
Mpn # 1560-32X32
Weight 40.96 lbs.

Product Features

  • Optional tamper-proof screws are available
  • Optional no mounting holes for floor applications
  • Optional short blades-blades parallel to shortest dimension
  • Optional designer colors: almond, black velvet, bronze, Camaro silver, coffee tan, Navajo white, vanilla
  • Mounting holes for sidewall and ceiling application
  • Heavy-duty steel
  • Honeycomb construction
  • Gym-grade construction
  • Recessed screwdriver-operated opposed blade damper
  • Blades run parallel to largest dimension
  • Standard colors: Soft white, Driftwood tan
