Shoemaker 2502-32X10 Shoemaker 2502 32

Shoemaker 2502 32"x10" Thin-line Frame 1 ½ Hour Curtain-Type Spring-Actuated Fire Damper

SKU: 133001

This product is not currently available for purchase.

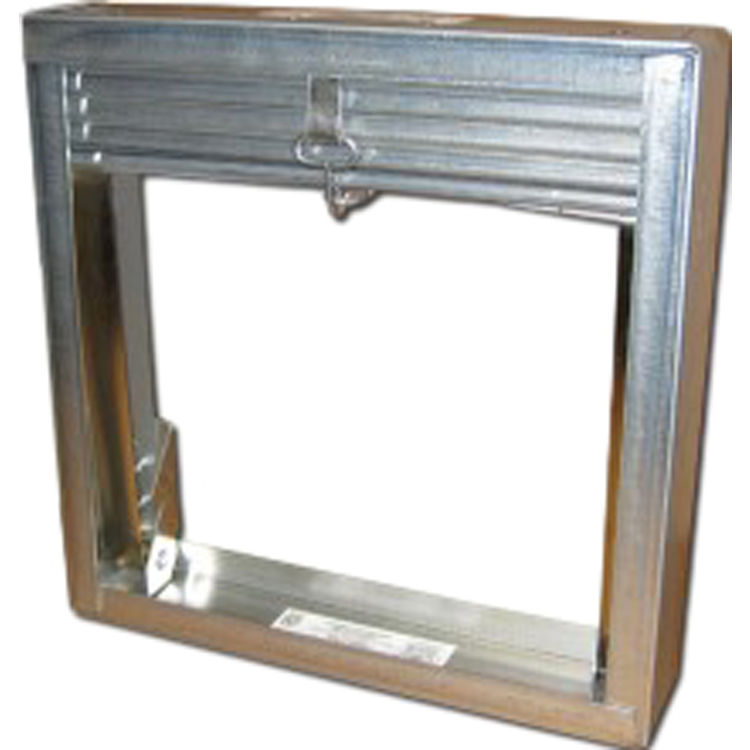

About the Shoemaker 2502 32"x10" Thin-line Frame 1 ½ Hour Curtain-Type Spring-Actuated Fire Damper

This 32"x 10" Shoemaker 2502 Spring-Actuated Fire Damper is designed to fit and cover a 32" wide by 10" high opening. Shoemaker has a complete line of products designed for homes, offices, stores, and many other commercial and residential applications. The quality and simplicity of this fire damper are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. The Shoemaker 2502 Thin-line Frame 1 1/2 Hour Curtain-Type Damper is manufactured from corrosion-tested galvanized mild steel (G-90). It has interlocking steel roll-formed blades with a blade lock. This fire damper is available in square or rectangular sizes with maximum dimensions of 41" W, 36" H. It has a 2" thin-line roll-formed frame. Be sure to measure the hole opening size instead of measuring the face plate of your old grille. This grille is designed to fit over a 32"x 10" existing hole or duct. It is approved by UL and California State Fire Marshall and proudly made in USA. Refer to the Specification Sheet for more information.

Product: Vents and Terminations
Manufacturer: Shoemaker
Use: Heating and A/C
  Ducting and Venting
Style: Fire Damper
Mpn # 2502-32X10
Weight 12.80 lbs.
  • 165 Degree Replaceable Fusible Link
  • Sleeve Options
  • UL And California State Fire Marshall Accepted
  • UL Accepted Installation Instructions
  • 2 Inch Thinline Frame
  • 2501 -Square or Rectangular For Vertical Mount Only. Max. Dimension 48W, 49H.
  • 2502 - Square Or Rectangular Spring Actuated (6) For Horizontal Or Vertical Mount. Maximum Dimension 41W, 36H.
  • Blade Lock (5)
  • Damper Built From Corrosion Tested Galvanized Mild Steel G-90
  • Fractional And Odd Dimension Sizes Available
  • Interlocking Steel Roll-Formed Blade (3) With Roll-Formed Frames (1)
  • 4 Self Locking Corner
