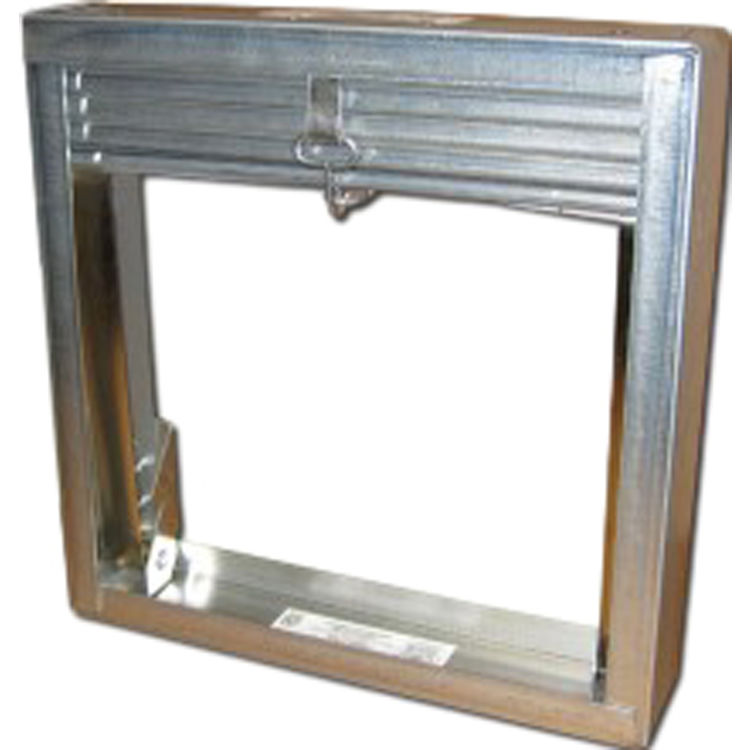

Shoemaker 2502 32"x32" Thin-line Frame 1 ½ Hour Curtain-Type Spring-Actuated Fire Damper

SKU: 136535

 Free Shipping!

Manufacturer stocks, ships quickly!

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

Shoemaker 2502 32"x32" Thin-line Frame 1 ½ Hour Curtain-Type Spring-Actuated Fire Damper

SKU: 136535

Ships From Price Qty
Order From Manufacturer
Manufacturer stocks, ships quickly!

About the Shoemaker 2502-32X32

This 32"x32" Shoemaker 2502 Spring-Actuated Fire Damper is designed to fit and cover a 32" wide by 32" high opening. Shoemaker has a complete line of products designed for homes, offices, stores, and many other commercial applications. The quality and simplicity of this fire damper are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. The Shoemaker 2502 Thin-line Frame 1 1/2 Hour Curtain-Type Damper is manufactured from corrosion-tested galvanized mild steel (G-90). It has interlocking steel roll-formed blades with a blade lock. This fire damper is available in square or rectangular sizes with maximum dimensions of 41" W, 36" H. It has a 2" thin-line roll-formed frame. Be sure to measure the hole opening size instead of measuring the face plate of your old grille. This grille is designed to fit over a 32"x32" existing hole or duct. It is approved by UL and California State Fire Marshall and proudly made in USA. Refer to the Specification Sheet for more information.

Product Details

Product: Vents and Terminations
Manufacturer: Shoemaker
Use: Ducting and Venting
Style: Fire Damper
Mpn # 2502-32X32
Weight 40.96 lbs.

Product Features

  • Blade lock
  • Maximum dimensions 41 W, 36 H
  • Square or rectangular spring-actuated curtain-type fire damper
  • Fractional O.D. sizes available (optional)
  • Call us for optional sleeves
  • Call us for stainless steel option
  • 2 thin-line roll formed frame
  • Designed for horizontal or vertical mount (not for ceiling application, see 2700 Series)
  • U.L. listed and California State Marshall approved
  • Interlocking steel roll-formed blade
  • Damper manufactured from corrosion tested galvanized mild steel (G-90)
  • Self-locking corner
  • 165 replaceable fusible link
  • 1 1/2 Hour Curtain-Type Damper
  • Made in USA
