Shoemaker 2502-36X10 Shoemaker 2502 36

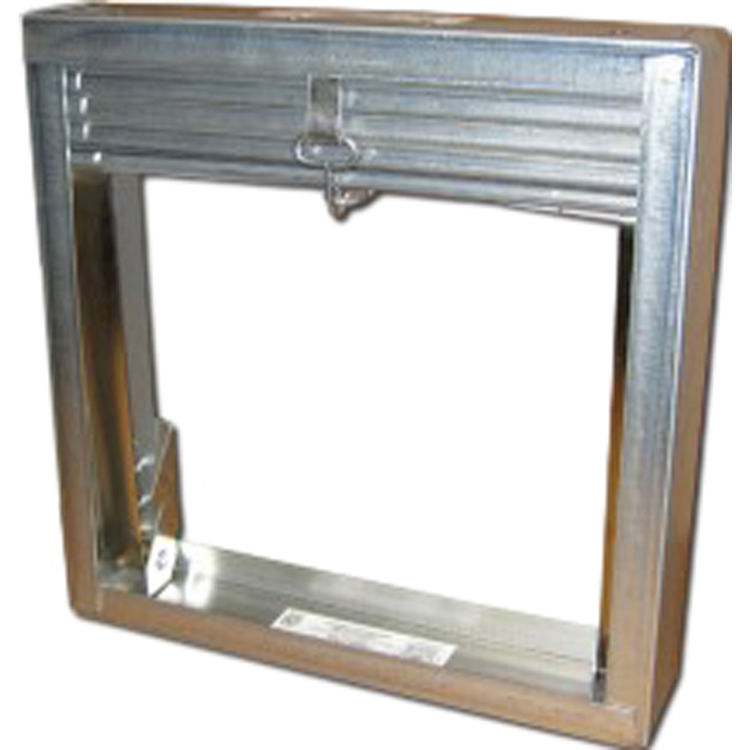

Shoemaker 2502 36"x10" Thin-line Frame 1 ½ Hour Curtain-Type Spring-Actuated Fire Damper

SKU: 133434

This product is not currently available for purchase.

About the Shoemaker 2502 36"x10" Thin-line Frame 1 ½ Hour Curtain-Type Spring-Actuated Fire Damper

This 36"x10" Shoemaker 2502 Spring-Actuated Fire Damper is designed to fit and cover a 36" wide by 10" high opening. Shoemaker has a complete line of products designed for homes, offices, stores, and many other commercial applications. The quality and simplicity of this fire damper are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. The Shoemaker 2502 Thin-line Frame 1 1/2 Hour Curtain-Type Damper is manufactured from corrosion-tested galvanized mild steel (G-90). It has interlocking steel roll-formed blades with a blade lock. This fire damper is available in square or rectangular sizes with maximum dimensions of 41" W, 36" H. It has a 2" thin-line roll-formed frame. Be sure to measure the hole opening size instead of measuring the face plate of your old grille. This grille is designed to fit over a 36"x10" existing hole or duct. It is approved by UL and California State Fire Marshall and proudly made in USA. Refer to the Specification Sheet for more information.

Product: Vents and Terminations
Manufacturer: Shoemaker
Use: Heating and A/C
  Ducting and Venting
Style: Fire Damper
Mpn # 2502-36X10
Weight 14.40 lbs.
  • Blade lock
  • Maximum dimensions 41” W, 36” H
  • Square or rectangular spring-actuated curtain-type fire damper
  • Fractional O.D. sizes available (optional)
  • Call us for optional sleeves
  • Call us for stainless steel option
  • 2” thin-line roll formed frame
  • Designed for horizontal or vertical mount (not for ceiling application, see 2700 Series)
  • U.L. listed and California State Marshall approved
  • Interlocking steel roll-formed blade
  • Damper manufactured from corrosion tested galvanized mild steel (G-90)
  • Self-locking corner
  • 165° replaceable fusible link
  • 1 1/2 Hour Curtain-Type Damper
  • Made in USA
