24X14 Fire Damper – Shoemaker 2533 Series

SKU: 131979


Manufacturer, ships quickly!

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

24X14 Fire Damper – Shoemaker 2533 Series

SKU: 131979

Ships From Price Qty
Order From Manufacturer
Manufacturer, ships quickly!

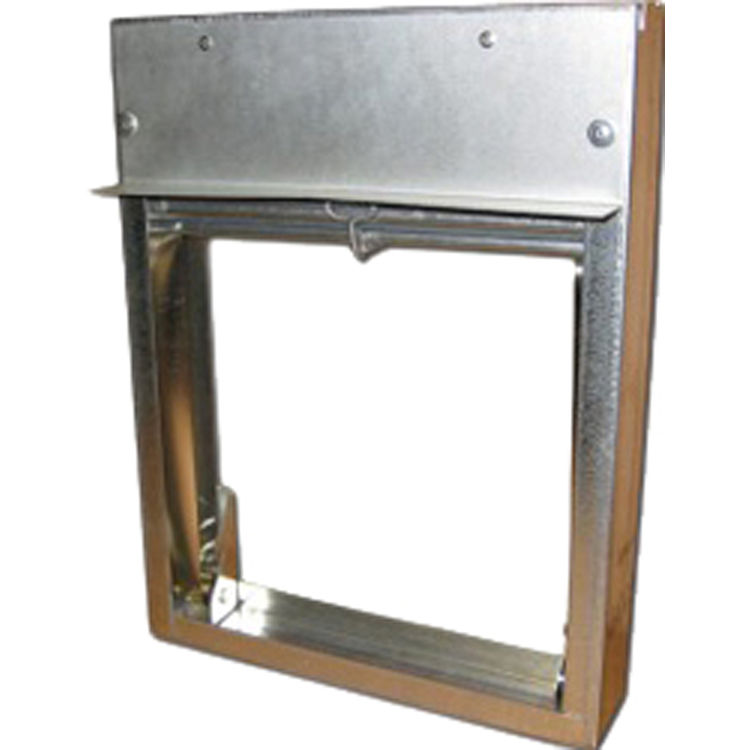

About the Shoemaker 2533-24X14

This 24" x 14" Shoemaker 2533 Series Fire Damper is designed to fit and cover a 24" wide by 14" high opening. Shoemaker has a complete line of products designed for homes, offices, stores, and many other commercial and residential applications. The quality and simplicity of this fire damper are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. The Shoemaker 2533 Thinline Frame 1 ½ Hour Curtain-Type Fire Damper Out-of-Airstream features a 2-inch thinline frame and is equipped with interlocking steel roll-formed blades and frames. It is also designed with a self-locking corner. This fire damper is available in square or rectangular standard sleeves (maximum dimension 48" wide by 41" high). It can only be mounted in a vertical position. This fire damper is manufactured from galvanized mild steel (G-90) which is corrosion-tested. The safety features and quality of this fire damper meet UL standards and it is also approved by the California State Fire Marshall. The Shoemaker Manufacturing Company leads the field in innovative air-grille design and it guarantees that its products are free from defective materials. Be sure to measure the hole opening size instead of measuring the face plate of your old grille. This fire damper is designed to fit over a 24" x 14" existing hole or duct. Refer to the Specification Sheet for more information.

Product Details

Product: Vents and Terminations
Manufacturer: Shoemaker
Use: Ducting and Venting
Style: Fire Damper
Mpn # 2533-24X14
Weight 13.44 lbs.

Product Features

  • 165 Degree Replaceable Fusible Link
  • Sleeve Options
  • UL And California State Fire Marshall Accepted
  • UL Accepted Installation Instructions
  • 2 Inch Thinline Frame
  • 2533 - Square Or Rectangular For Vertical Mount Only. Maximum Dimension 48W, 41H.
  • 2534 - Square Or Rectangular Spring Actuated (6) For Horizontal Or Vertical Mount. Maximum Dimension 41W, 29H.
  • Blade Lock (5)
  • Damper Built From Corrosion Tested Galvanized Mild Steel G-90
  • Fractional And Odd Dimension Sizes Available
  • Interlocking Steel Roll-Formed Blade (3) With Roll-Formed Frames (1)
  • 4 Self Locking Corner
