Shoemaker 2550-28 Shoemaker 2550 28

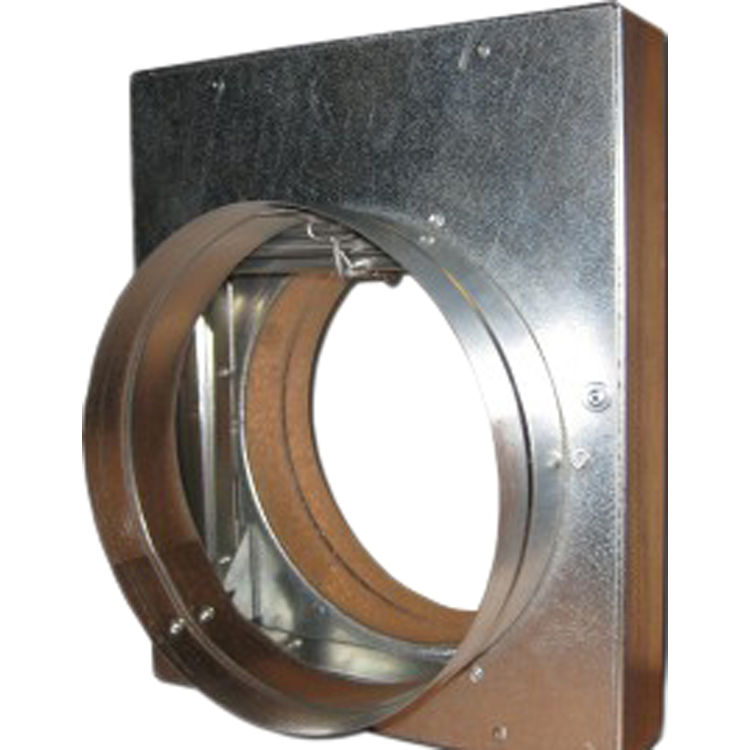

Shoemaker 2550 28" Round Curtain Fire Damper Horizontal/Vertical Mount 1.5 Hour

SKU: 137209

This product is not currently available for purchase.

About the Shoemaker 2550 28" Round Curtain Fire Damper Horizontal/Vertical Mount 1.5 Hour

Shoemaker 2550-28 Return Air Grille offers simple installation, countersunk mounting holes for smooth appearance, and a versatility for applications where greater air volume is required.

Product: Vents and Terminations
Manufacturer: Shoemaker
Use: Heating and A/C
  Ducting and Venting
Style: Fire Damper
Mpn # 2550-28
Weight 3.36 lbs.
  • Size shown above is vent opening size not actual grille dimensions
  • Many Shoemaker images are Stock Photos and may not represent exact product listed. See description for more product details
  • 2-way Diffusers and Registers incorporate Vent Louvers that run parallel to first grille dimensions EX: 4x10 grille has 4" louvers; Return Air Grilles however have louvers that run Perpendicular to the first measurement
  • 1 1/2 Hour Rated Fire Damper
  • Sleeve Options
  • UL And California State Fire Marshall Accepted
  • UL Accepted Installation Instructions
  • 165 Degree Replaceable Fusible Link
  • 2 Inch Thinline Frame
  • 2549 - Round Damper For Vertical Mount Only. Available 4" Thru 40" Round.
  • 2550 - Round Spring Actuated (6) Damper For Vertical Or Horizontal Mount. Available 4" Thru 28" Round.
  • Blade Lock (5)
  • Damper Built From Corrosion Tested Galvanized Mild Steel G-90
  • Interlocking Steel Roll-Formed Blade (3) With Roll-Formed Frames (1)
  • 4 Self Locking Corner
