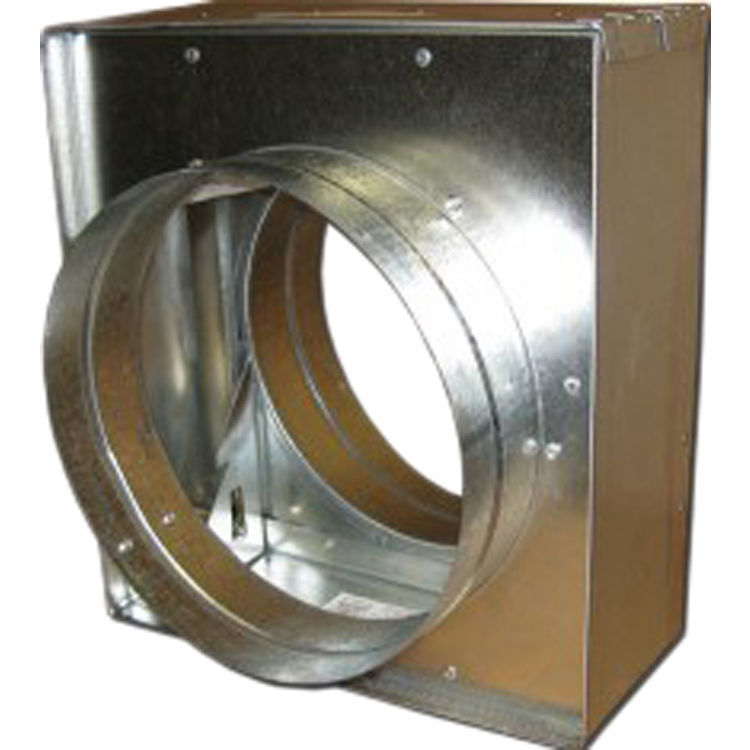

Shoemaker 2650 40" Round Curtain Fire Damper Horizontal/Vertical Mount 1.5 Hour
SKU: 139116
This product is not currently available for purchase.
About the Shoemaker 2650-40
About the Shoemaker 2650 40" Round Curtain Fire Damper Horizontal/Vertical Mount 1.5 Hour
Shoemaker 2650-40
Product Details
Product:
Vents and Terminations
Manufacturer:
Shoemaker
Use:
Heating and A/C
Ducting and Venting
Style:
Fire Damper
Mpn #
2650-40
Weight
4.80 lbs.
Product Features
Size shown above is vent opening size not actual grille dimensions
Many Shoemaker images are Stock Photos and may not represent exact product listed. See description for more product details
2-way Diffusers and Registers incorporate Vent Louvers that run parallel to first grille dimensions EX: 4x10 grille has 4" louvers; Return Air Grilles however have louvers that run Perpendicular to the first measurement
165 Degree Replaceable Fusible Link
UL And California State Fire Marshall Accepted
UL Accepted Installation Instructions
2649 - Round Damper For Vertical Mount Only. Available 4" Thru 52" Round.
2650 - Round Spring Actuated (6) Damper For Vertical Or Horizontal Mount. Available 4" Thru 52" Round.
304 Stainless Steel Build
4-1/4 Inch Standard Frame Style
Blade Lock (5)
Damper Built From Corrosion Tested Galvanized Mild Steel G-90
Interlocking Steel Roll-Formed Blade (3) With Roll-Formed Frames (1)
