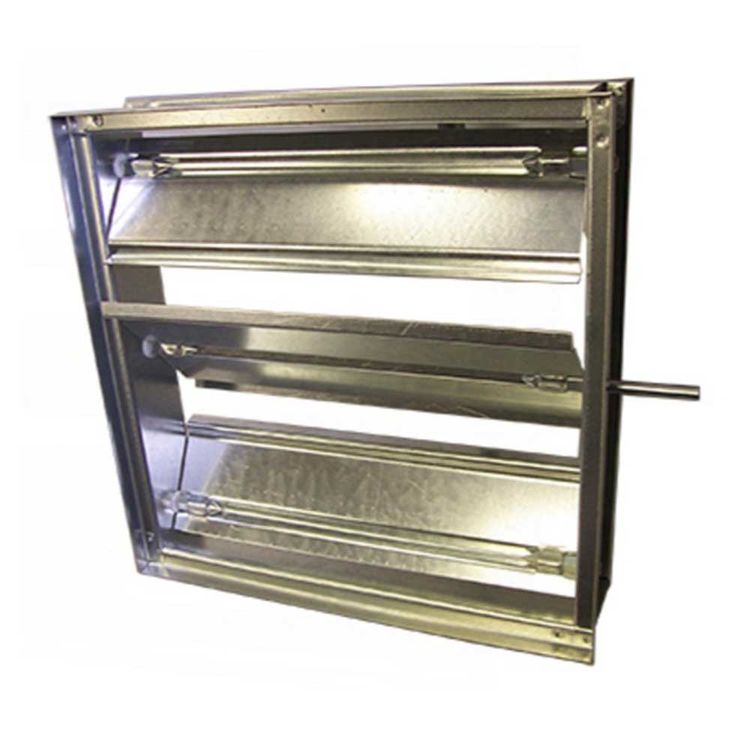

Shoemaker 3000-0BD-32X14 32X14 Opposed Blade Air Control Damper- Shoemaker 3000-OBD
View 2 of Shoemaker 3000-0BD-32X14 32X14 Opposed Blade Air Control Damper- Shoemaker 3000-OBD
View 3 of Shoemaker 3000-0BD-32X14 32X14 Opposed Blade Air Control Damper- Shoemaker 3000-OBD
View 4 of Shoemaker 3000-0BD-32X14 32X14 Opposed Blade Air Control Damper- Shoemaker 3000-OBD

32X14 Opposed Blade Air Control Damper- Shoemaker 3000-OBD

SKU: 138634

This product is not currently available for purchase.

About the 32X14 Opposed Blade Air Control Damper- Shoemaker 3000-OBD

This 32"x 14" Shoemaker 3000-OBD is designed to fit and cover a 32" wide by 14" high opening. The quality and functionality of this damper are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. The Shoemaker 3000-OBD Series has a complete line of products designed for homes, offices, stores, and many other commercial and residential applications. The Shoemaker Manufacturing Company leads the field in innovative air-grille design and it guarantees that its products are free from defective materials. This Shoemaker Opposed Blade Air Control Damper 3000-OBD Series has a 16-gauge galvanized channel frame. It features opposed blade operation for accurate air flow control. The blades are of galvanized material and are vee-stiffened for added strength and stability. Additionally, the blades pivot on high temperature nylon bushings. This damper has 1/2” square zinc-plated steel pivot pins and a 1/2” square zinc-plated steel adjustable operating shaft that extends up to 4” beyond the air control frame. This opposed blade air control damper comes with a mill finish. Its blades, which run parallel to the first dimension given, must be operated on a horizontal plane. This damper is available from a minimal size of 8"x 8" to a maximum size of 48"x 48". Please measure the opening size instead of measuring the face plate of your old damper. Please note that this damper is designed to fit over a 32"x 14" existing hole or duct. Please refer to the Specification Sheet for more information about this product.

Product: Vents and Terminations
Manufacturer: Shoemaker
Use: Heating and A/C
  Ducting and Venting
Style: Opposed Blade Air Damper
Mpn # 3000-0BD-32X14
Weight 17.92 lbs.
  • 1/2 Inch Square Zinc Plated Steel Adjustable Operating Shaft Extending Up To 4 Inch Beyond The Air Control Frame
  • Extended Square Operating Shaft (Extending 7-1/2" Beyond The Air Control Frame)
  • Flat Head And Sill Frame Build
  • Fractional And Odd Dimension Sizes Available
  • Mill Finish
  • Oil Impregnated Bronze Bushings
  • Opposed Blade Movement For Precise Volume Control
  • Outside Mounting Flange
  • Round Operating Shaft (1/2" Diameter)
  • Isolated Blades On Dampers With A Height of 12 Inch OR Less
  • Sleeve Options
  • 1/2 Inch Square Zinc Plated Steel Pivot Pins
  • Spring Closed or Spring Open Dampers
  • 12 Ga. Galvaneal Construction
  • 16 Ga. Galvanized Channel Frame
  • 3000 Obdll - Low Leak Air Control Damper. Jamb Seals (Stainless Steel), Blade To Blade Neoprene Seals, 3% Maximum Leakage With A Pressure Differential 3" W.C.
  • 3100 Series - Face And By-Pass Dampers
  • Blades Are Vee Stiffened 16 Ga. Galvanized For Strength And Stability
  • Blades Pivot On Non-Metallic Celcon Bushings
  • Direct Mount Damper Motors
