46X42 Opposed Blade Low Leak Air Control Damper- Shoemaker 3000-OBDLL

SKU: 142910
$2,027.00/ea Free Shipping!

   Available to Ship in 8-10 days

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

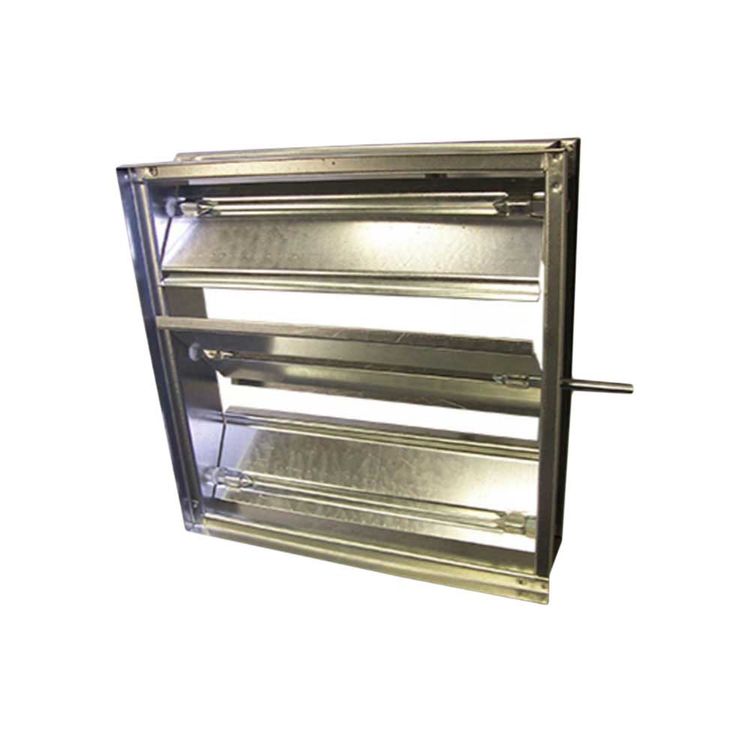

46X42 Opposed Blade Low Leak Air Control Damper- Shoemaker 3000-OBDLL

SKU: 142910

Ships From Price Qty
Order From Manufacturer
Available to Ship in 8-10 days

About the Shoemaker 3000-0BDLL-46X42

This 46"x42" Shoemaker 3000-OBDLL is designed to fit and cover a 46" wide by 42" high opening. The quality and functionality of this damper are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. The Shoemaker 3000-OBDLL Series has a complete line of products designed for homes, offices, stores, and many other commercial applications. The Shoemaker Manufacturing Company leads the field in innovative air-grille design and it guarantees that its products are free from defective materials. This Shoemaker Opposed Blade Low Leak Air Control Damper 3000-OBDLL Series has a 16-gauge galvanized channel frame. It features opposed blade operation for accurate air flow control. The blades are of galvanized material and are vee-stiffened for added strength and stability. Additionally, the blades pivot on high temperature nylon bushings. This damper has ½” square zinc-plated steel pivot pins and a ½” square zinc-plated steel adjustable operating shaft that extends up to 4” beyond the air control frame. It features single blades on dampers with a height of 12” or less. This damper comes equipped with stainless steel jamb seals and blade-to-blade neoprene seals. The maximum leakage of this low leak damper is only 3% with a pressure differential of 3” water column. This opposed blade low leak air control damper comes with a mill finish. Its blades must be operated on a horizontal plane. This damper is available from a minimal size of 8"x8" to a maximum size of 48"x48". Please measure the opening size instead of measuring the face plate of your old damper. Please note that this damper is designed to fit over a 46"x42" existing hole or duct. Please refer to the Specification Sheet for more information about this product.

Product Details

Product: Vents and Terminations
Manufacturer: Shoemaker
Use: Ducting and Venting
Style: Opposed Blade Air Damper
Material: Galvanized
Mpn # 3000-0BDLL-46X42
Weight 77.28 lbs.

Product Features

  • 1/2 Inch Square Zinc Plated Steel Adjustable Operating Shaft Extending Up To 4 Inch Beyond The Air Control Frame
  • Extended Square Operating Shaft (Extending 7-1/2" Beyond The Air Control Frame)
  • Flat Head And Sill Frame Build
  • Fractional And Odd Dimension Sizes Available
  • Mill Finish
  • Oil Impregnated Bronze Bushings
  • Opposed Blade Movement For Precise Volume Control
  • Outside Mounting Flange
  • Round Operating Shaft (1/2" Diameter)
  • Isolated Blades On Dampers With A Height of 12 Inch OR Less
  • Sleeve Options
  • 1/2 Inch Square Zinc Plated Steel Pivot Pins
  • Spring Closed or Spring Open Dampers
  • 12 Ga. Galvaneal Construction
  • 16 Ga. Galvanized Channel Frame
  • 3000 Obdll - Low Leak Air Control Damper. Jamb Seals (Stainless Steel), Blade To Blade Neoprene Seals, 3% Maximum Leakage With A Pressure Differential 3" W.C.
  • 3100 Series - Face And By-Pass Dampers
  • Blades Are Vee Stiffened 16 Ga. Galvanized For Strength And Stability
  • Blades Pivot On Non-Metallic Celcon Bushings
  • Direct Mount Damper Motors
