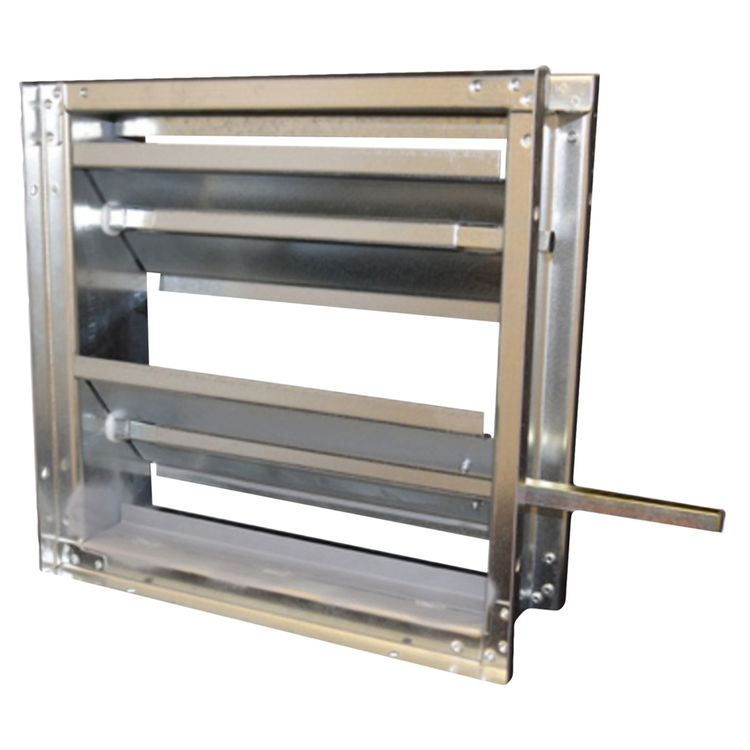

Shoemaker 3000P-18X44 18X44 Parallel Blade Air Control Damper- Shoemaker 3000-P
View 2 of Shoemaker 3000P-18X44 18X44 Parallel Blade Air Control Damper- Shoemaker 3000-P
View 3 of Shoemaker 3000P-18X44 18X44 Parallel Blade Air Control Damper- Shoemaker 3000-P
View 4 of Shoemaker 3000P-18X44 18X44 Parallel Blade Air Control Damper- Shoemaker 3000-P
View 5 of Shoemaker 3000P-18X44 18X44 Parallel Blade Air Control Damper- Shoemaker 3000-P

18X44 Parallel Blade Air Control Damper- Shoemaker 3000-P

SKU: 139701

This product is not currently available for purchase.

About the 18X44 Parallel Blade Air Control Damper- Shoemaker 3000-P

This 18"x44" Shoemaker 3000-P is designed to fit and cover an 18" wide by 44" high opening. The quality and functionality of this damper are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. The Shoemaker 3000-P Series has a complete line of products designed for homes, offices, stores, and many other commercial applications. The Shoemaker Manufacturing Company leads the field in innovative air-grille design and it guarantees that its products are free from defective materials. This Shoemaker Parallel Blade Air Control Damper 3000-P Series has a 16-gauge galvanized channel frame. Its blades, which are parallel to the first dimension given, are designed to control air flow. The blades are of galvanized material and are vee-stiffened for added strength and stability. Additionally, the blades pivot on high temperature nylon bushings. This damper has ½” square zinc-plated steel pivot pins and a ½” square zinc-plated steel adjustable operating shaft that extends up to 4” beyond the air control frame. It features single blades on dampers with a height of 10” or less and double blades on dampers with a height of 8" or 10" (i.e. 3000-P-8x8 DB). Its blades must be operated on a horizontal plane. It is available from a minimal size of 6"x6" to a maximum size of 48"x48". This parallel blade air control damper comes with a mill finish. Please measure the hole opening size instead of measuring the face plate of your old damper. Please note that this damper is designed to fit over a 18"x44" existing hole or duct. Please refer to the Specification Sheet for more information about this product.

Product: Vents and Terminations
Manufacturer: Shoemaker
Use: Heating and A/C
  Ducting and Venting
Style: Parallel Blade Air Damper
Mpn # 3000P-18X44
Weight 31.68 lbs.
  • 16-gauge galvanized channel frame
  • Parallel blades are vee-stiffened 16-gauge galvanized for strength and stability
  • Blades pivot on non-metallic celcon bushings
  • ½ inch square zinc-plated steel pivot pins
  • ½ inch square zinc-plated steel adjustable operating shaft extending up to 4 inches beyond the air control frame
  • Single blades on dampers with a height of 12 inches or less
  • Mill finish
  • Optional 12-gauge galvaneal construction
  • Optional Flat head and sill frame construction
  • Optional extended square operating shaft (extending 7-1/2 inches beyond the air control frame)
  • Optional round operating shaft (1/2 inch diameter)
  • Optional spring opening damper
  • Optional spring closing damper
  • Optional oil impregnated bronze bushings
  • Optional outside mounting flange
  • Optional direct mount damper motor
  • Optional Low Leak Package: features stainless steel jamb seals, blade to blade neoprene seals, and 3% maximum leakage with a pressure differential 3inches W.C. (3000-PLL)
  • Call us, if desired, to order optional 3000 Series Sleeves
  • Call us, if desired, to order optional fractional and odd sizes available
  • Call us, if desired, to order optional double blades on dampers with a height of 8 inches or 10 inches (i.e. 3000-P-8x8 DB.)
