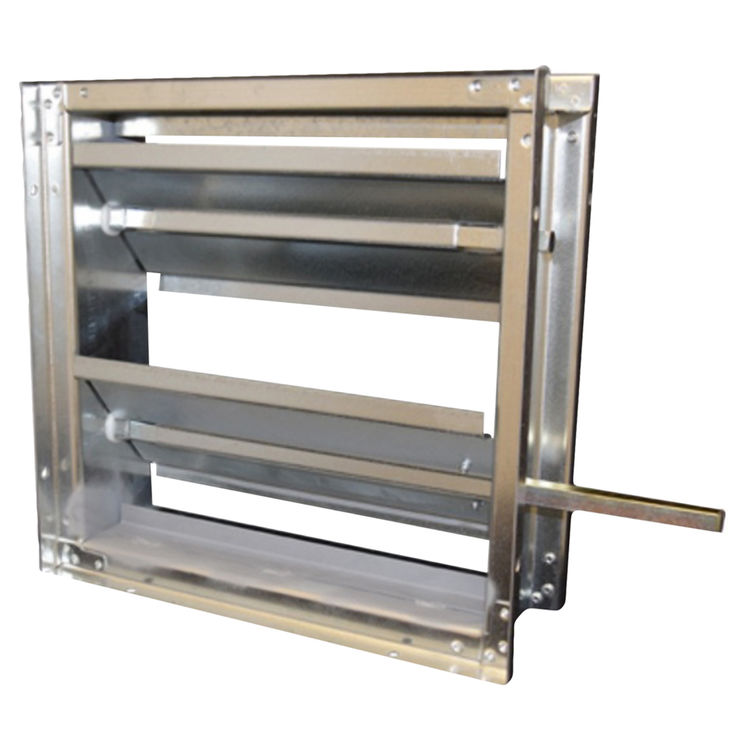

46X36 Parallel Blade Air Control Damper- Shoemaker 3000-P

SKU: 141292

This product is not currently available for purchase.

About the Shoemaker 3000P-46X36

This 46"x 36" Shoemaker 3000-P is designed to fit and cover a 46" wide by 36" high opening. The quality and functionality of this damper are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. The Shoemaker 3000-P Series has a complete line of products designed for homes, offices, stores, and many other commercial applications. The Shoemaker Manufacturing Company leads the field in innovative air-grille design and it guarantees that its products are free from defective materials. This Shoemaker Parallel Blade Air Control Damper 3000-P Series has a 16-gauge galvanized channel frame. Its blades, which are parallel to the first dimension given, are designed to control air flow. The blades are of galvanized material and are vee-stiffened for added strength and stability. Additionally, the blades pivot on high temperature nylon bushings. This damper has ½” square zinc-plated steel pivot pins and a ½” square zinc-plated steel adjustable operating shaft that extends up to 4” beyond the air control frame. It features single blades on dampers with a height of 10” or less and double blades on dampers with a height of 8" or 10" (i.e. 3000-P-8 x 8 DB). Its blades must be operated on a horizontal plane. It is available from a minimal size of 6"x 6" to a maximum size of 48"x 48". This parallel blade air control damper comes with a mill finish. Please measure the hole opening size instead of measuring the face plate of your old damper. Please note that this damper is designed to fit over a 46"x 36" existing hole or duct. Please refer to the Specification Sheet for more information about this product.

Product Details

Product: Vents and Terminations
Manufacturer: Shoemaker
Use: Ducting and Venting
Style: Parallel Blade Air Damper
Mpn # 3000P-46X36
Weight 66.24 lbs.

Product Features

  • 1/2 Inch Square Zinc Plated Steel Adjustable Operating Shaft Extending Up To 4 Inch Beyond The Air Control Frame
  • Flat Head And Sill Frame Build
  • Fractional And Odd Dimension Sizes Available
  • Mill Finish
  • Oil Impregnated Bronze Bushings
  • Outside Mounting Flange
  • Parallel Blades Are Cee Stiffened 16 Ga. Galvanized For Strength And Stability
  • Round Operating Shaft (1/2" Diameter)
  • Isolated Blades On Dampers With A Height of 12 Inch OR Less
  • Sleeve Options
  • Spring Closed or Spring Open Dampers
  • 1/2 Inch Square Zinc Plated Steel Pivot Pins
  • 12 Ga. Galvaneal Construction
  • 16 Ga. Galvanized Channel Frame
  • 3000 Pll - Low Leak Air Control Damper. Jamb Seals (Stainless Steel), Blade To Blade Neoprene Seals, 3% Maximum Leakage With A Pressure Differential 3" W.C.
  • 3100 Series - Face And By-Pass Dampers
  • Blades Pivot On Non-Metallic Celcon Bushings
  • Direct Mount Damper Motors
  • Extended Square Operating Shaft (Extending 7-1/2" Beyond The Air Control Frame)
