66X58 Parallel Blade Low Leak Air Control Damper- Shoemaker 3000-PLL

SKU: 143362
Minimum Quantity: 1

$2,941.00/ea Cargo Shipping Only

In Stock and Ready to Ship!

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

66X58 Parallel Blade Low Leak Air Control Damper- Shoemaker 3000-PLL

SKU: 143362
$2,941.00/ea


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$2,941.00/ea

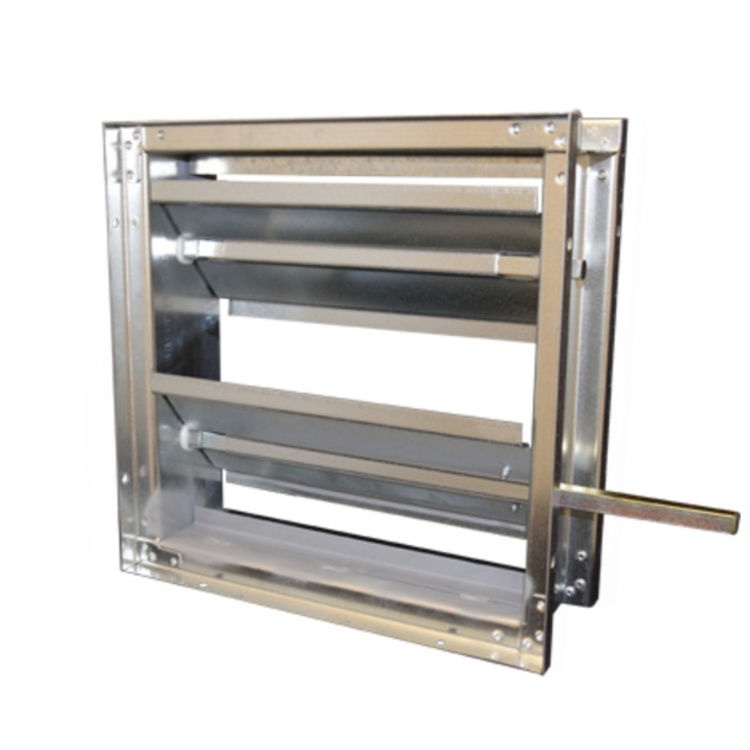

About the Shoemaker 3000PLL-66X58

This 66"x58" Shoemaker 3000-PLL is designed to fit and cover a 66" wide by 58" high opening. The quality and functionality of this damper are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. The Shoemaker 3000-PLL Series has a complete line of products designed for homes, offices, stores, and many other commercial applications. The Shoemaker Manufacturing Company leads the field in innovative air-grille design and it guarantees that its products are free from defective materials. This Shoemaker Parallel Blade Low Leak Air Control Damper Series has a 16-gauge galvanized channel frame. Its blades, which are parallel to the first dimension given, are designed to control air flow. The blades are of galvanized material and are vee-stiffened for added strength and stability. Additionally, the blades pivot on non-metallic celcon bushings. This damper has ½” square zinc-plated steel pivot pins and a ½” square zinc-plated steel adjustable operating shaft that extends up to 4” beyond the air control frame. It features single blades on dampers with a height of 12” or less. This damper comes equipped with stainless steel jamb seals and blade-to-blade neoprene seals. The maximum leakage of this low leak damper is only 3% with a pressure differential of 3” water column. This parallel blade air control damper comes with a mill finish. Please measure the hole opening size instead of measuring the face plate of your old damper. Please note that this damper is designed to fit over a 66"x58" existing hole or duct. Please refer to the Specification Sheet for more information about this product.

Product Details

Product: Vents and Terminations
Manufacturer: Shoemaker
Use: Ducting and Venting
Type:
Style: Parallel Blade Air Damper
Material: Galvanized
Mpn # 3000PLL-66X58
Weight 153.12 lbs.

Product Features

  • 16-gauge galvanized channel frame
  • Parallel blades are vee-stiffened 16-gauge galvanized for strength and stability
  • Blades pivot on non-metallic celcon bushings
  • inch square zinc-plated steel pivot pins
  • inch square zinc-plated steel adjustable operating shaft extending up to 4 inches beyond the air control frame
  • Stainless steel jamb seals
  • Blade-to-blade neoprene seals
  • 3% maximum leakage with a pressure differential 3 inches w.c.
  • Mill finish
  • Single blades on dampers with a height of 12 inches or less
  • Optional 12-gauge galvaneal construction
  • Optional Flat head and sill frame construction
  • Optional extended square operating shaft (extending 7-1/2 inches beyond the air control frame)
  • Optional round operating shaft (1/2 inch diameter)
  • Optional Spring closed or spring open dampers
  • Optional oil impregnated bronze bushings
  • Optional outside mounting flange
  • Optional Direct mount damper motors (Field installed.) Mounts on operating shaft. Standard operating shaft position is bottom right, back side of damper blades when viewed from face of the product.
  • Call us, if desired, to order optional 3000 Series Sleeves
  • Call us, if desired, to order optional fractional and odd sizes available
  • Call us, if desired, to order optional 3100 Series Face and By-pass Air Control Dampers
