18X14 Vertical Mount Pressure Relief Damper (Aluminum) - Shoemaker 3510

SKU: 133337

This product is not currently available for purchase.

About the 18X14 Vertical Mount Pressure Relief Damper (Aluminum) - Shoemaker 3510

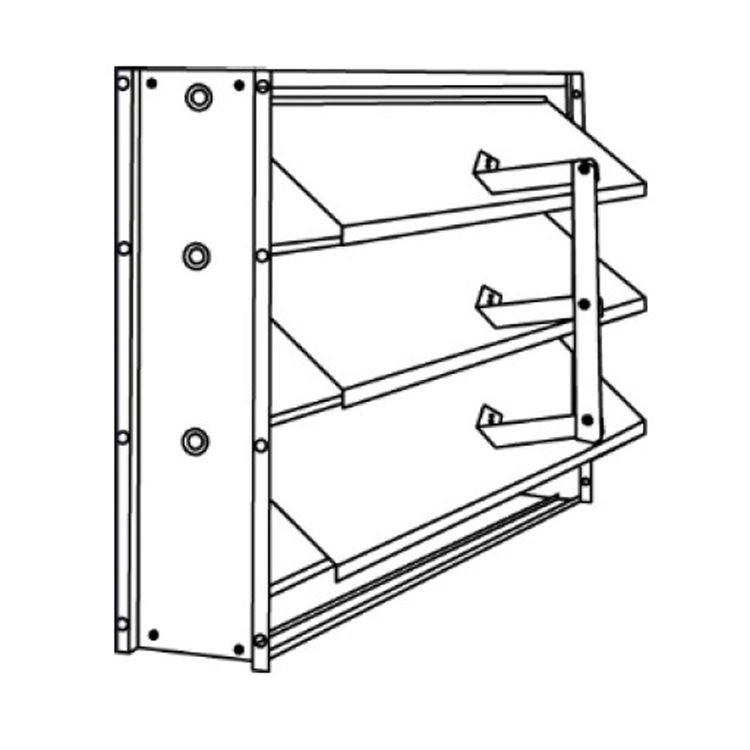

This 18"x14" Shoemaker vertical mount pressure relief damper 3510 Series is designed to open with negative or positive pressures for intake or exhaust air. It is built with an all-aluminum construction. It features blade-to-blade linkage. Its blades are parallel to the first dimension given. It is available in single blades on dampers 10 inches high or less. Dampers with multiple blades feature adjustable counter balance arms mounted to the center of the blades, with adjustable weights that can be positioned along the length of the arm for different opening pressures. It comes equipped with ΒΌ inch pivot pins in nylon bearings and foam blade edges to reduce noise. It is available from a minimal size of 6"x6" and a maximum size of 24"x24". This pressure relief damper comes with a mill finish. This Shoemaker 3510 is designed to fit and cover an 18" wide by 14" high opening. The quality and functionality of this damper are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative design for real world applications. The Shoemaker 3510 Series has a complete line of products designed for homes, offices, stores, and many other commercial applications. Unlike other products, Shoemaker products have a baked-on textured polyester powder coat that can resist scratches and does not wear or fade out easily. Please measure the hole opening size instead of measuring the face plate of your old grille. Please note that this damper is designed to fit over an 18"x14" existing hole or duct. Refer to the Specification Sheet for more information.

Product: Vents and Terminations
Manufacturer: Shoemaker
Use: Heating and A/C
  Ducting and Venting
Style: Pressure Relief Damper
Color: Aluminum
Mpn # 3510-18X14
Weight 10.08 lbs.
  • 1/4 Inch Pivot Pins In Nylon Busings
  • Max. Size 24 X 24
  • Mill Finish
  • Mounting Flange
  • Sleeve Options
  • 3510 - Vertical Mount
  • 3520 - Horizontal Mount Air Up
  • 3530 - Horizontal Mount Air Down
  • Adjustable Counter Balance To Adjust Various Opening Pressures
  • Aluminum Build
  • Blade To Blade Linkage
  • Designed To Open With Negative Or Positive Pressures For Intake Or Exhaust Air
  • Felt Edge Blades To Hold Noise To A Min.
