44X16 Driftwood Tan Stationary Outside Air Louver (Aluminum) - Shoemaker 4500

SKU: 140725

This product is not currently available for purchase.

About the Shoemaker 4500-44X16

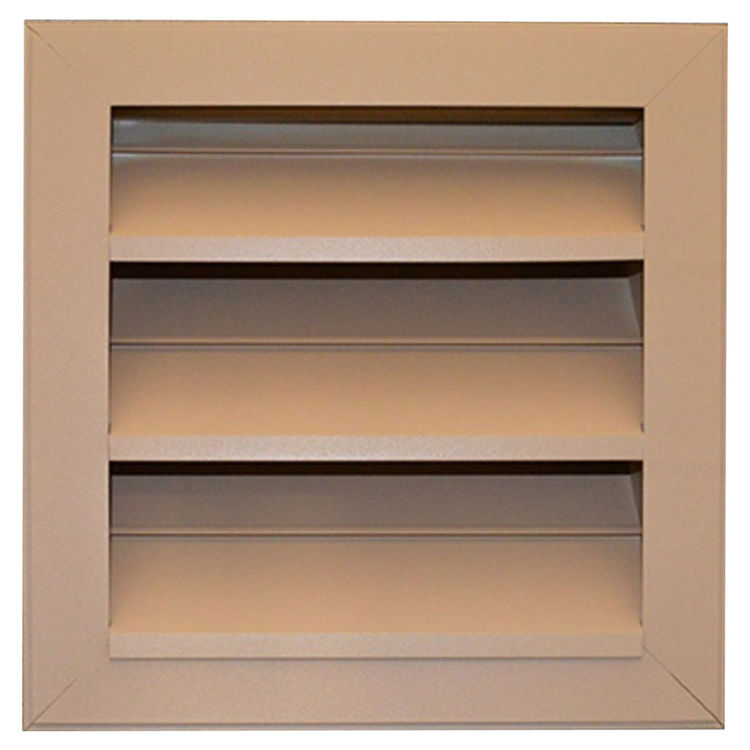

This driftwood tan 44"x16" Shoemaker Stationary Outside Air Louver 4500 Series is of extruded aluminum construction. It has louvers that are fixed at a 45° angle on 4" centers. It is designed with blades parallel to the first dimension given. Its air louvers have storm bends that help prevent water from entering the back of the louver. It comes equipped with a flange frame and a bird screen. A removable bird screen is also available (4500-RS). It is available from a minimal size of 6"x6" and a maximum one piece size of 96"x60". The standard color of this grille is driftwood tan but it is also available in soft white. Optional designer colors, satin anodized and mill finishes are also available. This Shoemaker 4500 is designed to fit and cover a 44" wide by 16" high opening. The quality and simplicity of this air-grille are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. This Shoemaker 4500 Series has a complete line of products designed for homes, offices, stores, and many other commercial applications. The Shoemaker Manufacturing Company leads the field in innovative air-grille design and it guarantees that its products are free from defective materials. Unlike other products, Shoemaker grilles have a baked-on textured polyester powder coat that can resist scratches and does not wear or fade out easily. Please measure the hole opening size instead of measuring the face plate of your old grille. Please note that this grille is designed to fit over a 44"x16" existing hole or duct. Refer to the Specification Sheet for more information.

Product Details

Product: Vents and Terminations
Manufacturer: Shoemaker
Use: Ducting and Venting
Color: White
Mpn # 4500-44X16
Weight 28.16 lbs.

Product Features

  • .060 Thickness Aluminum
  • Aluminum Build
  • Galvaneal Steel Build
  • IS - Insect screen
  • Mounting Flange & Bird Screen
  • Of - Offset Flange Frame, Must Specify Placement
  • Rs - Removable Bird Screen
  • Standard Flange Frame
  • Storm Bend In Blades To Keep Water From Entering
  • 4500 - 4" Depth
  • 4500 6 - 6" Depth Galvaneal Steel
  • 4500 M - Marine 12 Gauge Galvaneal, Fully Welded Steel Blades and Frame
  • 4550 - 2" Depth
  • 4700 - Gable Louvers And Triangle Louvers
  • Cf - Flush Mount Channel Frame
  • Color or Mill Finish Available On This Product
  • Driftwood Tan Finish
