62X16 Driftwood Tan Stationary Outside Air Louver (Aluminum) - Shoemaker 4500

SKU: 141513
Minimum Quantity: 1

$1,049.00/ea Free Shipping!

In Stock and Ready to Ship!

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

62X16 Driftwood Tan Stationary Outside Air Louver (Aluminum) - Shoemaker 4500

SKU: 141513

Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks

About the Shoemaker 4500-62X16

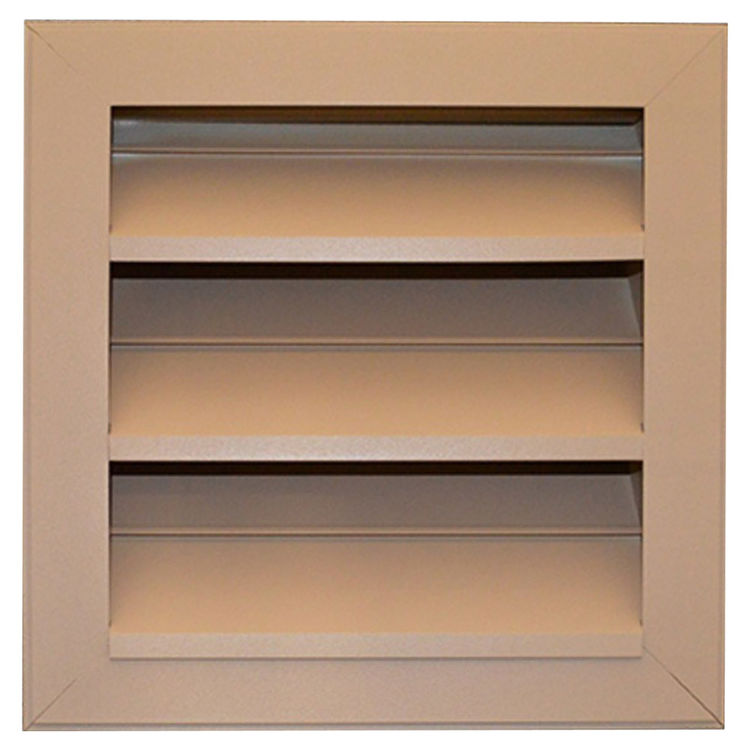

This driftwood tan 62"x16" Shoemaker Stationary Outside Air Louver 4500 Series is of extruded aluminum construction. It has louvers that are fixed at a 45° angle on 4" centers. It is designed with blades parallel to the first dimension given. Its air louvers have storm bends that help prevent water from entering the back of the louver. It comes equipped with a flange frame and a bird screen. A removable bird screen is also available (4500-RS). It is available from a minimal size of 6"x6" and a maximum one piece size of 96"x60". The standard color of this grille is driftwood tan but it is also available in soft white. Optional designer colors, satin anodized and mill finishes are also available. This Shoemaker 4500 is designed to fit and cover a 62" wide by 16" high opening. The quality and simplicity of this air-grille are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. This Shoemaker 4500 Series has a complete line of products designed for homes, offices, stores, and many other commercial applications. The Shoemaker Manufacturing Company leads the field in innovative air-grille design and it guarantees that its products are free from defective materials. Unlike other products, Shoemaker grilles have a baked-on textured polyester powder coat that can resist scratches and does not wear or fade out easily. Please measure the hole opening size instead of measuring the face plate of your old grille. Please note that this grille is designed to fit over a 62"x16" existing hole or duct. Refer to the Specification Sheet for more information.

Product Details

Product: Vents and Terminations
Manufacturer: Shoemaker
Use: Ducting and Venting
Type: Outside Air Louver
Material: Aluminum
Color: Tan
Mpn # 4500-62X16
Weight 39.68 lbs.

Product Features

  • Extruded aluminum construction
  • Standard flange frame
  • 4 inches depth
  • Louvers set at 45 on 4 inches centers
  • Storm bend on louvers to minimize water from entering behind louver
  • Bird screen
  • Blades run parallel to first dimension given
  • Minimum size 6 inches x 6 inches
  • Maximum one piece size 96 inches x 60 inches
  • Standard color is driftwood tan and soft white
  • 6 inches depth flange frame (4500-6)
  • Flush mount channel frame (4500-CF)
  • Offset flange frame, must specify flange placement (4500-OF)
  • Galvanneal steel construction, available on 4 inches depth only
  • Marine 12 gauge galvanneal construction with fully welded steel frame and louvers, available on 4 inches depth only
  • Insect Screen (4500-IS)
  • Removable bird screen (4500-RS)
  • Fractional I.D. and O.D. sizes available
  • Call us, if desired, to order optional colors-Almond- Black Velvet- Bronze- Camaro Silver- Coffee tan- Navajo White- Vanilla- Satin Anodized and Mill Finishes .
