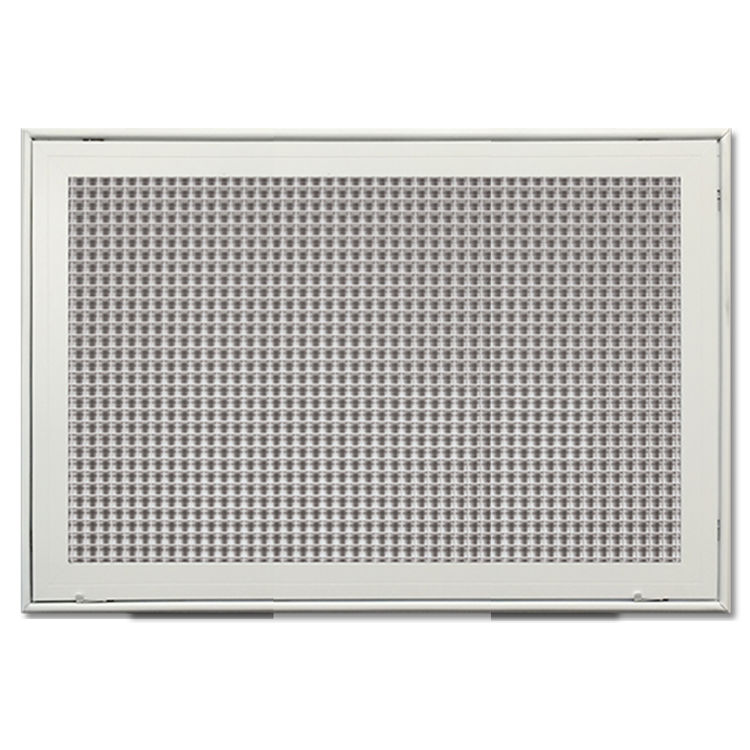

22x16 Soft White Lattice Filter Grille (Aluminum) - Shoemaker 600FG

SKU: 133982
Minimum Quantity: 1

$165.00/ea Free Shipping!

In Stock and Ready to Ship!

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

22x16 Soft White Lattice Filter Grille (Aluminum) - Shoemaker 600FG

SKU: 133982
$165.00/ea


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$165.00/ea

About the Shoemaker 600FG-22X16

This Soft White 22"x16" Shoemaker 600FG Lattice Return Air Grille is designed to fit and cover a 22" wide by 16" high opening. The standard color of this grille is soft white but it is also available in driftwood tan. Optional designer colors and anodized finishes are also available. Shoemaker has a complete line of products designed for homes, offices, stores, and many other commercial applications. The quality and simplicity of this Filter Grille are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. This Shoemaker 600FG grille is typically mounted in ceilings and walls. It has an extruded aluminum surface mount frame with signature line marks. Unlike other products, Shoemaker grilles have a baked-on textured polyester powder coat that can resist scratches and does not wear or fade out easily. The Shoemaker Manufacturing Company leads the field in innovative filter-grille design and it guarantees that its products are free from defective materials. The Shoemaker 600FG is designed to conceal duct work. This grille allows for the installation of thicker filters which can minimize pressure drop on the overall system, improving air flow through the heat exchanger and extending the time between filter changes. It features a 2-way reversible door on rectangular sizes and a 4-way reversible door on square sizes. This filter grille has a 1/2" x 1/2" x 1/2" aluminum lattice. Two other lattice sizes are also available, 1/2” x 1/2” x 1” and 1” x 1” x 1”. This filter grill can hold a filter with a maximum thickness of 1". It is manufactured 3/16” undersized compared to the nominal duct's outside dimension for easy installation. The air filter (not included) should be ¼” to ½” undersized. Please verify with the air filter manufacturer for air specifications. Please note that this grille is designed to fit over a 22"x16" existing hole or duct. Refer to the Specification Sheet for more information.

Product Details

Product: Vents and Terminations
Manufacturer: Shoemaker
Use: Ducting and Venting
Type: Filter Grille
Material: Aluminum
Color: White
Mpn # 600FG-22X16
Weight 14.08 lbs.

Product Features

  • Extruded aluminum surface mount frame with signature line marks
  • Standard colors Soft White color and Driftwood Tan
  • Hinged removable face with hinges parallel to longest side
  • Hand operated lever for easy filter access
  • 4-way reversible door on square sizes
  • 2-way reversible door on rectangular sizes
  • Concealed mounting holes
  • Holds up to a 1 inch filter (not included)
  • Filter retention tabs
  • Available in T-Bar application (600TFG)
  • Call us, if desired, to order 2 inches Filter capacity (600FG2)
  • Call us, if desired, to order alternative hinge and latch
  • Call us, if desired, to order optional colors Almond- Black Velvet- Bronze- Camaro Silver- Coffee Tan- Navajo White- Vanilla Anodized Finishes
