20x48 Soft White Perforated Return Air Grille (Aluminum) - Shoemaker 600P

SKU: 137314

$309.00/ea Free Shipping!

In Stock and Ready to Ship!

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

20x48 Soft White Perforated Return Air Grille (Aluminum) - Shoemaker 600P

SKU: 137314
$309.00/ea


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$309.00/ea

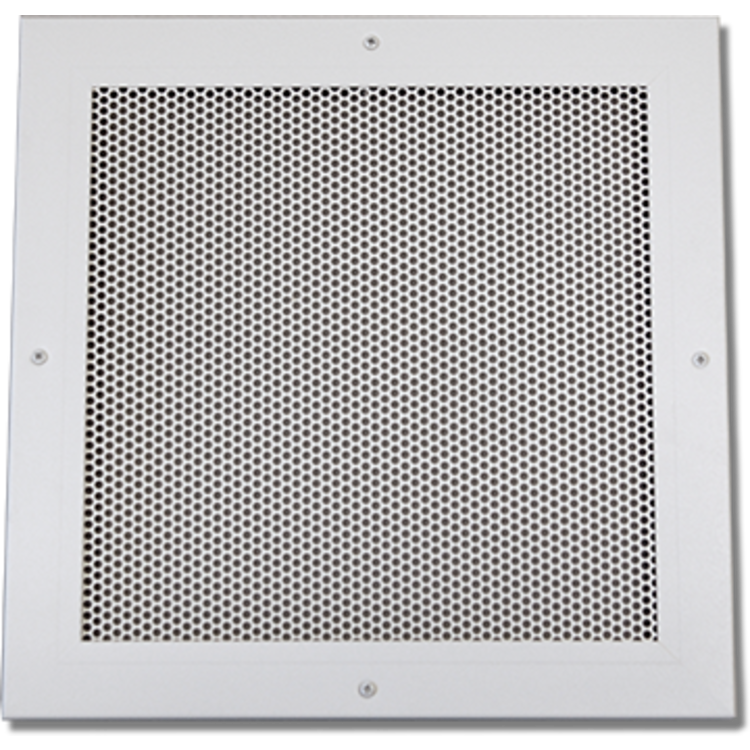

About the Shoemaker 600P-20X48

This Soft White 20"x48" Shoemaker 600P Perforated Return Air Grille is designed to fit and cover a 20" wide by 48" high opening. The quality and simplicity of this Return Air Grille are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. This Shoemaker 600P grille is typically mounted in ceilings and walls. It has an extruded aluminum surface mount frame with signature line marks. This return air grille has a perforated surface with a fifty-eight percent free area. It has 3/16” holes on 1/4" staggered centers. The Shoemaker 600P is designed to conceal ductwork. The standard color of this grille is soft white but it is also available in driftwood tan. Optional designer colors are also available. Shoemaker has a complete line of products designed for homes, offices, stores, and many other commercial applications. The Shoemaker Manufacturing Company leads the field in innovative air-grille design and it guarantees that its products are free from defective materials. Unlike other products, Shoemaker grilles have a baked-on textured polyester powder coat that can resist scratches and does not wear or fade out easily. Please measure the hole opening size instead of measuring the face plate of your old grille. Please note that this grille is designed to fit over a 20"x48" existing hole or duct. Refer to the Specification Sheet for more information.

Product Details

Product: Vents and Terminations
Manufacturer: Shoemaker
Use: Ducting and Venting
Type: Air Grille
Material: Aluminum
Size:
Color: White
Mpn # 600P-20X48
Weight 38.40 lbs.

Product Features

  • Extruded aluminum surface mount frame with signature line marks
  • 58% free area
  • Countersunk mounting holes for flush appearance with color matching Phillips posi-drive screws
  • Standard colors Soft White color and Driftwood Tan
  • Perforated face return air grille
  • Available in T-Bar application (600PT)
  • Optional tamper proof screws (F Torx center pin) are available
  • Square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead (600-NLC), available in square sizes only
  • Call us, if desired, to order Recessed screwdriver operated Opposed Blade Damper (600P-0)
  • Call us, if desired, to order Insect Screen (600-IS)
  • Call us, if desired, to order optional colors Almond- Black Velvet- Bronze- Camaro Silver- Coffee Tan- Navajo White- Vanilla Satin Anodized Finishes
