16-inch Soft White Perforated Return Air Grille T-Bar (Aluminum) - Shoemaker 600PTFG

SKU: 136595


Manufacturer, ships quickly!

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

16-inch Soft White Perforated Return Air Grille T-Bar (Aluminum) - Shoemaker 600PTFG

SKU: 136595

Ships From Price Qty
Order From Manufacturer
Manufacturer, ships quickly!

About the Shoemaker 600PTFG-16

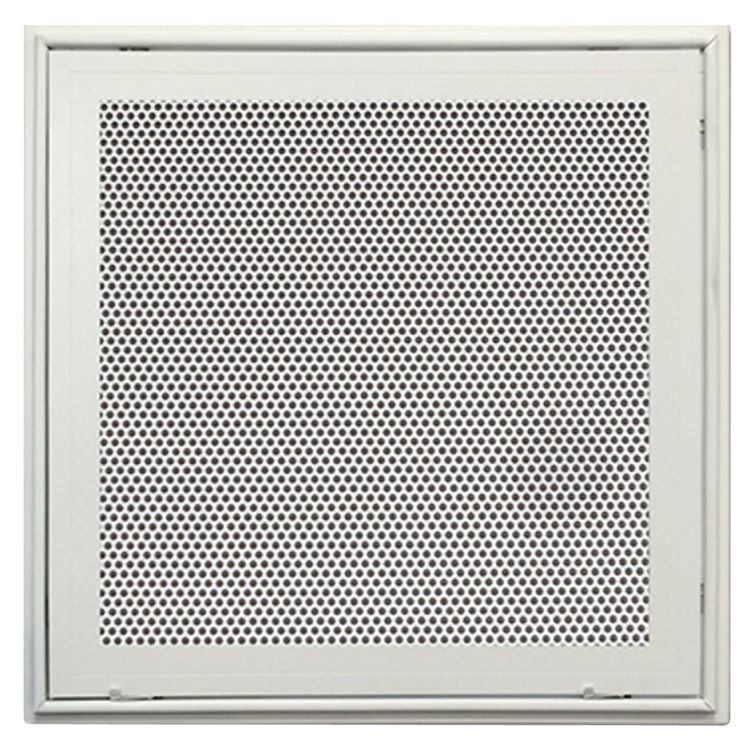

This Soft White 16"x16" Shoemaker 600PTFG Perforated Return Air Grille is designed to fit and cover a 16" wide by 16" high opening. The quality and simplicity of this Return Air Grille are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. This Shoemaker 600PTFG grille has an extruded aluminum surface mount frame with signature line marks installed in an outer T-bar filter grille frame. This return air grille has a perforated hinged removable surface. It has 3/16" holes on 1/4" staggered centers. It has seismic support holes to fit the grille securely. It can hold a filter with a maximum thickness of 2" (purchase separately). A hand-operated lever is provided for easy access to the filter. The Shoemaker 600PTFG Series is designed to conceal ductwork and to ensure a stable and controlled room temperature. The standard color of this grille is soft white but it is also available in driftwood tan color. A square collar design is available for 20" x 20" duct. Shoemaker has a complete line of products designed for homes, offices, stores, and many other commercial applications. The Shoemaker Manufacturing Company leads the field in innovative air-grille design and it guarantees that its products are free from defective materials. Unlike other products, Shoemaker grilles have a baked-on textured polyester powder coat that can resist scratches and does not wear or fade out easily. Please measure the hole opening size instead of measuring the face plate of your old grille. Please note that this grille is designed to fit over a 16"x16" existing hole or duct. Refer to the Specification Sheet for more information.

Product Details

Product: Vents and Terminations
Manufacturer: Shoemaker
Use: Ducting and Venting
Color: White
Mpn # 600PTFG-16
Weight 10.24 lbs.

Product Features

  • Extruded aluminum face frame with signature line marks set in an outer T-Bar filter grille frame
  • Standard color soft white and driftwood tan
  • Perforated hinged removable face
  • 3/16 inch holes on inch staggered centers
  • Hand operated lever for easy filter access
  • Square collar designed for 20 inches x 20 inches duct
  • Seismic support holes
  • Holds up to a 2 inches filter (not included)
  • Square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead (600PTFG-NLC)
  • Call us, if desired, to order 1x2 T-Bar (8 inches x 20 inches duct), 2x4 T-Bar (20 inches x 44 inches duct)
  • Call us, if desired, to order Fiber glass back plenum: preformed, contour molded fiberglass back with a foil barrier backing designed with a 20 inches x 20 inches x 1 inch filter (601PTFG)
  • Call us, if desired, to order optional colors Almond- Black Velvet- Bronze- Camaro Silver- Coffee Tan- Navajo White- Vanilla Satin Anodized Finishes
