10-Inch Soft White Lattice Filter Grille T-Bar (Aluminum) - Shoemaker 600TFG

SKU: 136599
$264.00/ea Free Shipping!

   Available to Ship in 8-10 days

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

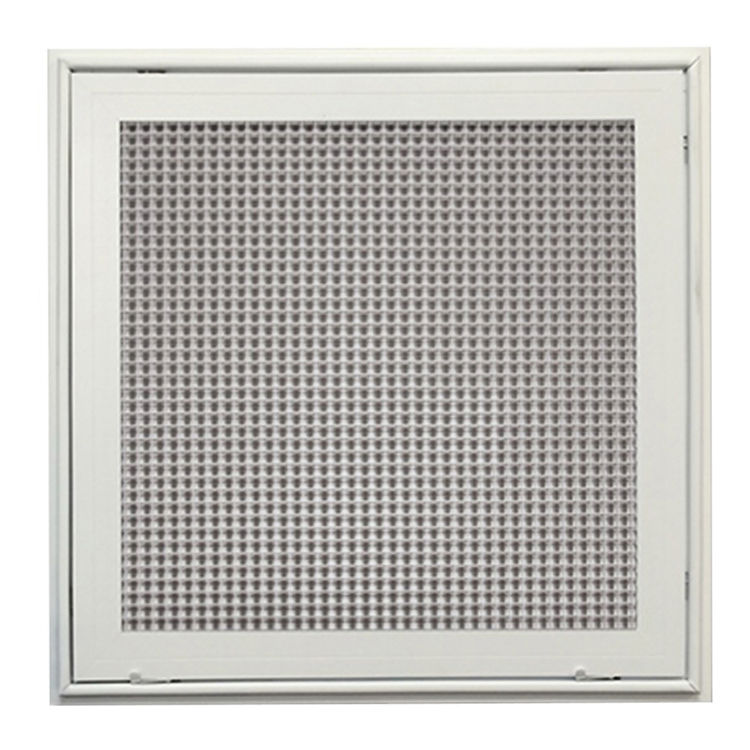

10-Inch Soft White Lattice Filter Grille T-Bar (Aluminum) - Shoemaker 600TFG

SKU: 136599

Ships From Price Qty
Order From Manufacturer
Available to Ship in 8-10 days

About the Shoemaker 600TFG-2X2-10

This Soft White 10"x10" Shoemaker 600TFG lattice filter grille features an extruded aluminum construction. The quality and simplicity of this filter grille are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. This Shoemaker 600TFG grille has an extruded aluminum surface mount frame with signature line marks installed in an outer T-bar filter grille frame. It has seismic support holes to fit the grille securely. It can hold a filter with a maximum thickness of 2” (purchase separately). A hand-operated lever is provided for easy access to the filter. The Shoemaker 600TFG Series is designed to conceal ductwork and to ensure a stable and controlled room temperature. The standard color of this grille is soft white but it is also available in driftwood tan color. A square collar design is available for a 20” x 20” duct. This lattice filter grille has an aluminum hinged removable surface. Shoemaker has a complete line of products designed for homes, offices, stores, and many other commercial applications. The Shoemaker Manufacturing Company leads the field in innovative air-grille design and it guarantees that its products are free from defective materials. Unlike other products, Shoemaker grilles have a baked-on textured polyester powder coat that can resist scratches and does not wear or fade out easily. Please note that the size of this Shoemaker 600TFG shown here is the vent opening size (10"x10") and not the actual grille dimension. Refer to the Specification Sheet for more information.

Product Details

Product: Vents and Terminations
Manufacturer: Shoemaker
Material: Aluminum
Use: Ducting and Venting
Type: T-Bar
Color: White
Mpn # 600TFG-2X2-10
Weight 4.00 lbs.

Product Features

  • Extruded aluminum face frame with signature line marks set in an outer T-Bar filter grille frame
  • Standard color soft white and driftwood tan
  • 1/2 x 1/2 x 1/2 aluminum lattice hinged removable face
  • Hand operated lever for easy filter access
  • Square collar designed for 20 inches x 20 inches duct
  • Seismic support holes
  • Holds up to a 2 inches filter (not included)
  • Square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead (600TFG-NLC)
  • Call us, if desired, to order 1x2 T-Bar (8 inches x 20 inches duct), 2x4 T-Bar (20 inches x 44 inches duct)
  • Call us, if desired, to order Fiber glass back plenum: preformed, contour molded fiberglass back with a foil barrier backing designed with a 20 inches x 20 inches x 1 inch filter (601TFG)
  • Call us, if desired, to order optional colors Almond- Black Velvet- Bronze- Camaro Silver- Coffee Tan- Navajo White- Vanilla Satin Anodized Finishes
