16X16-16 Soft White Lattice Return Air Grille in T-Bar Panel (Aluminum) - Shoemaker 700-600

SKU: 135808

$225.00/ea Free Shipping!

In Stock and Ready to Ship!

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

16X16-16 Soft White Lattice Return Air Grille in T-Bar Panel (Aluminum) - Shoemaker 700-600

SKU: 135808
$225.00/ea


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$225.00/ea

About the Shoemaker 700-600-16X16-16

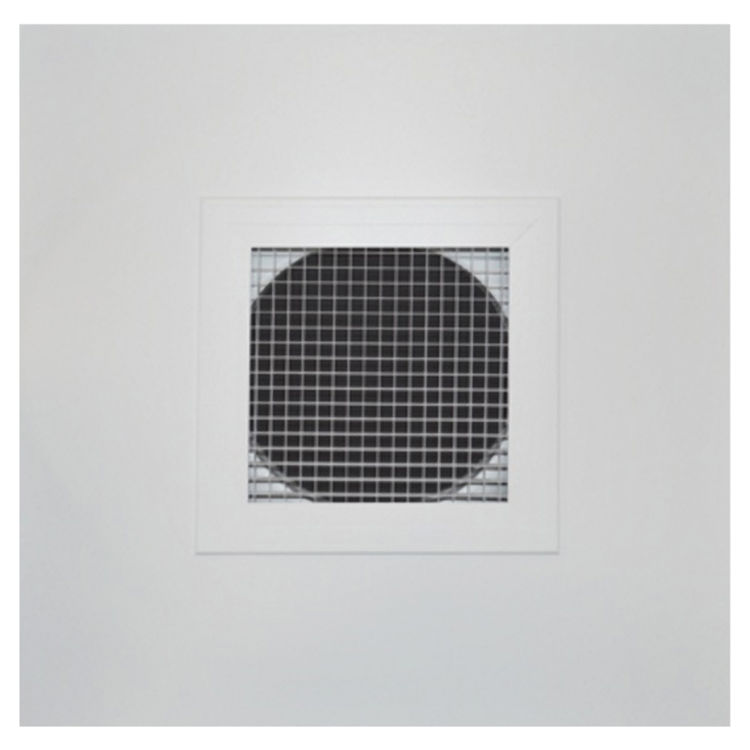

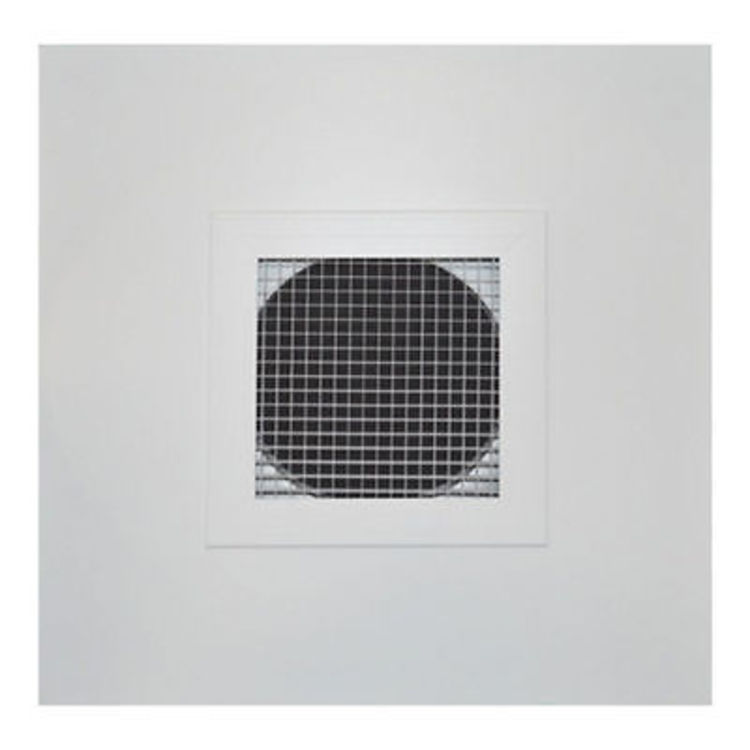

This Soft White 16"X16"-16 Shoemaker 700-600 Series comes equipped with a 2x2 steel panel with seismic support holes (700). It has an extruded aluminum filter frame with signature line marks and an internal ½" x ½" x ½" aluminum lattice return air grille (600). The Shoemaker 700-600 comes with a grille with sizes available from 6"x6" through 20"x20". The standard color of this grille is soft white only. The quality and simplicity of filter grille are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. Shoemaker has a complete line of products designed for homes, offices, stores, and many other commercial applications. The Shoemaker Manufacturing Company leads the field in innovative air-grille design and it guarantees that its products are free from defective materials. Unlike other products, Shoemaker grilles have a baked-on textured polyester powder coat that can resist scratches and does not wear or fade out easily. Please note that the size of this Shoemaker 700-600 shown here is the vent opening size (16"x16") and not the actual grille dimension. Refer to the Specification Sheet for more information.

Product Details

Product: Vents and Terminations
Manufacturer: Shoemaker
Material: Aluminum
Use: Ducting and Venting
Type: T-Bar
Size:
Color: White
Mpn # 700-600-16X16-16
Weight 10.24 lbs.

Product Features

  • Standard color soft white and driftwood tan
  • 2 x 2 steel panel with seismic support holes (700)
  • x x inch aluminum lattice return air grille in a extruded aluminum frame with signature line marks (600)
  • Grille available in sizes 6 inches x 6 inches through 20 inches x 20 inches
  • Square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead
  • Optional: Square Collar
  • Optional: inch x inch x 1 inch Lattice
  • Optional: 1 inch x 1 inch x 1 inch Lattice
  • Optional: TVB Thermal Vapor Blanket: 1 inch thick 2 x 2 foil faced insulation blanket
  • Optional: NGD Narrow Ceiling Grid Dimples for 9/16 inch T-Bar grid applications. Dimples will keep T-Bar centered in narrow grid, improving installation quality and time.
  • Call us, if desired, to order Recessed screwdriver operated Opposed Blade Damper (700-600-0)
