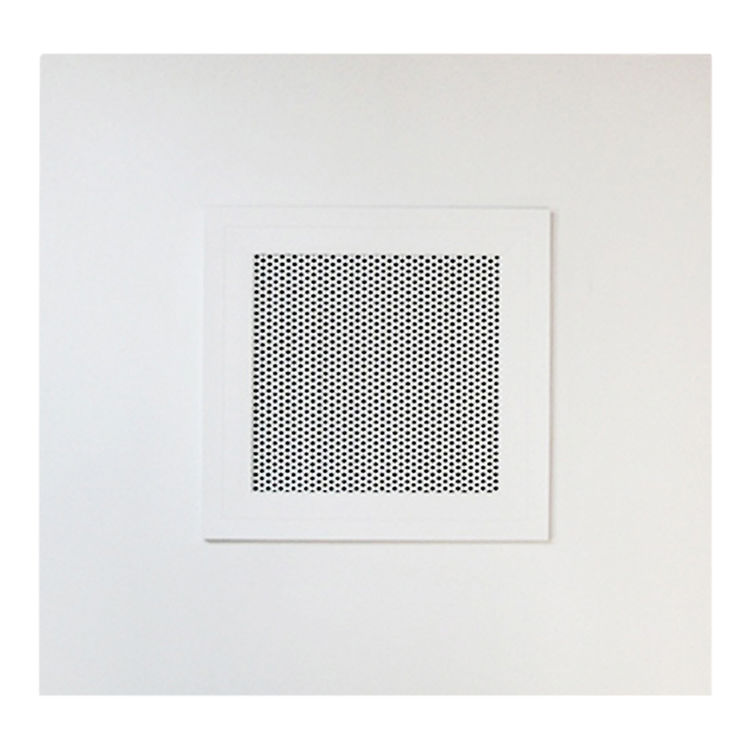

20X20-8 Soft White Perforated Return Air Grille in T-Bar Panel (Aluminum) - Shoemaker 700-600P

SKU: 136435
Minimum Quantity: 1

$253.00/ea Free Shipping!

In Stock and Ready to Ship!

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

20X20-8 Soft White Perforated Return Air Grille in T-Bar Panel (Aluminum) - Shoemaker 700-600P

SKU: 136435
$253.00/ea


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$253.00/ea

About the Shoemaker 700-600P-20X20-8

This Soft White 20"X20"-8 Shoemaker 700-600P Series comes equipped with a 2x2 steel panel with seismic support holes (700). It has a perforated return air grille in an extruded aluminum frame with signature line marks. It has 3/16” holes on 1/4" staggered centers. The Shoemaker 700-600P comes with a grille with sizes available from 6"x6" through 20"x20". The standard color of this grille is soft white only. The quality and simplicity of this filter grille are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. Shoemaker has a complete line of products designed for homes, offices, stores, and many other commercial applications. The Shoemaker Manufacturing Company leads the field in innovative air-grille design and it guarantees that its products are free from defective materials. Unlike other products, Shoemaker grilles have a baked-on textured polyester powder coat that can resist scratches and does not wear or fade out easily. Please note that the size of this Shoemaker 700-600 shown here is the vent opening size (20"X20") and not the actual grille dimension. Refer to the Specification Sheet for more information.

Product Details

Product: Vents and Terminations
Manufacturer: Shoemaker
Use: Ducting and Venting
Type: T-Bar
Material: Aluminum
Size:
Color: White
Mpn # 700-600P-20X20-8
Weight 16.00 lbs.

Product Features

  • Standard color soft white
  • 2 x 2 steel panel with seismic support holes (700)
  • Perforated return air grille in a extruded aluminum frame with signature line marks (600P)
  • 3/16 inch holes on 1/4 inch staggered centers
  • Grille available in sizes 6 inches x 6 inches through 20 inches x 20 inches
  • Square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead
  • Square Collar
  • TVB Thermal Vapor Blanket: 1 inch thick 2 x 2 foil faced insulation blanket
  • NGD Narrow Ceiling Grid Dimples for 9/16 inch T-Bar grid applications. Dimples will keep T-Bar centered in narrow grid, improving installation quality and time.
  • Call us, if desired, to order Recessed screwdriver operated Opposed Blade Damper (700-600P-0)
