Shoemaker 901-0-30X30 30

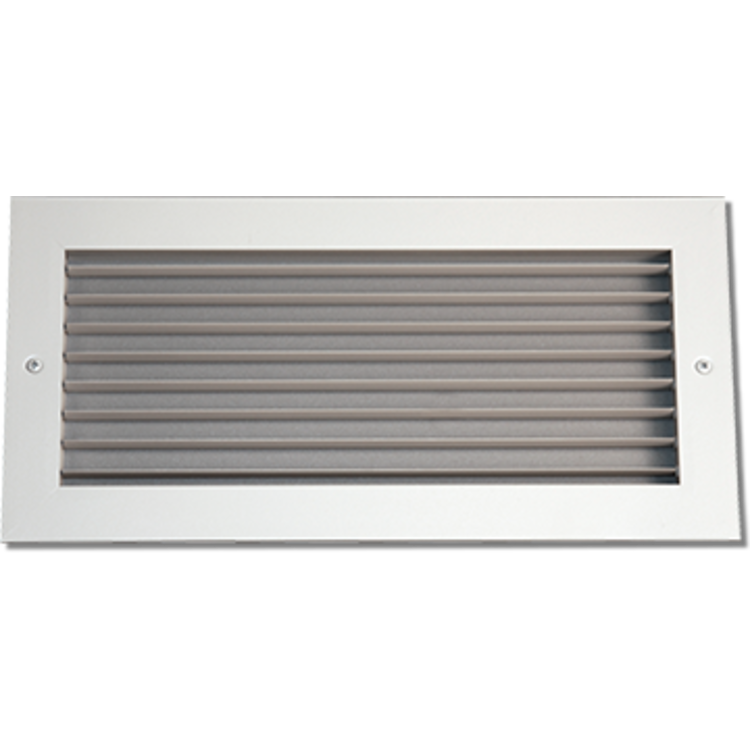

30" x 30" Single Deflection Adjustable Grille, Parallel to Long Dimension, Opposed Blade Damper, White - Shoemaker 901-0-30X30

SKU: 138692
$ 444.00 / ea
 Free Shipping!

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 2-3 weeks

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

30" X 30" Single Deflection Adjustable Grille, Parallel To Long Dimension, Opposed Blade Damper, White - Shoemaker 901-0-30X30

SKU: 138692
$444.00/ea


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$444.00/ea

About the 30" x 30" Single Deflection Adjustable Grille, Parallel to Long Dimension, Opposed Blade Damper, White - Shoemaker 901-0-30X30

Get a deal on the 30" x 30" Single Deflection Adjustable Grille, Parallel to Long Dimension, Opposed Blade Damper in white (Shoemaker 901-0-30X30) via PlumbersStock. We are known for great prices and rare parts. The airfoil aluminum blades are adjustable and run parallel to the longest dimension. It provides 2-way airflow on one plane. It runs quietly because of nylon bushings that prevent metal from rattling. The opposed blade damper is adjustable with the use of a screwdriver. Shoemaker is an industry leader for good reason. Contact us if you have any questions about this product or your project.

The Shoemaker 901-0 Series Aluminum Airfoil Blade Single Deflection Diffuser creates a 2-way air flow in a single plane. Its airfoil blades have nylon bushings for easy adjustment and quiet settings. It has an extruded aluminum surface mount frame with signature line marks. The adjustable louvers on this particular air-grille run parallel to the longest dimension The Shoemaker 901-0 Series vent cover comes with a recessed screwdriver-operated opposed blade damper. It is used to regulate the airflow through linked sections of adjacent blades that rotate in the opposite direction. Compared to other damper types, an opposed blade damper maintains a more even airflow. It also provides better control over the airflow in all operating positions. A recessed screwdriver-operated damper prevents any unnecessary adjustments to the damper setting. The standard color of this grille is soft white, but it is also available in driftwood tan and designer colors. Finishes in satin anodized and mill are optional.

The Shoemaker 901-0 Series Aluminum Airfoil Blade Single Deflection can be ordered with "F" Torx center pin tamper-proof screws for added security. Unlike other products, Shoemaker grilles have a baked-on textured polyester powder coat that can resist scratches and does not wear or fade out easily. The Shoemaker Manufacturing Company leads the field in innovative air-grille design, and it guarantees that its products are free from defective materials. Be sure to measure the hole opening size instead of measuring the face plate of your old grille. This grille is designed to fit over a 30" x 30" existing hole or duct. Refer to the Specification Sheet for more information.

Product: Vents and Terminations
  Air Grille and Registers
Manufacturer: Shoemaker
Use: Heating and A/C
  Ducting and Venting
Color: White
Mpn # 901-0-30X30
Weight 36.00 lbs.
  • 1331 & 1332 Series Stainless Steel Single Deflection
  • Soft White
  • Standard Color, Designer Color Or Satin Anodized Finish Available On This Product
  • Tamper Proof Screws
  • 901 O - With Recessed Screwdriver Operated Opposed Blade Damper
  • Airfoil Blades Are Parallel To Longest Dimension
  • Allows 2-Way Air Deflection On One Plane
  • Countersunk Mounting Holes For Flush Appearance With Color Matching Phillips Posi-Drive Screws
  • Aluminum .055 T6 Surface Mount Diffuser
  • Fractional Sizes, Inner Dimension And Outside Dimension Available
  • Nylon Bushings For Easy Adjustment And Quiet Setting Of Airfoil Blades
  • Isolated Deflection Diffuser With Movable Airfoil Blades
