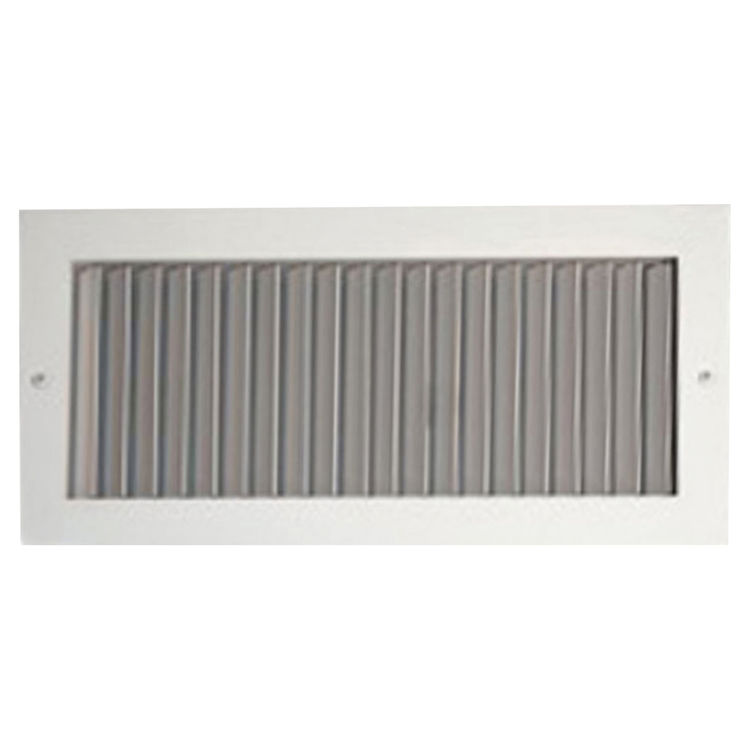

Shoemaker 902-0-48X48 48X48 White Vent Cover (Aluminum) - Shoemaker 902-0 Series

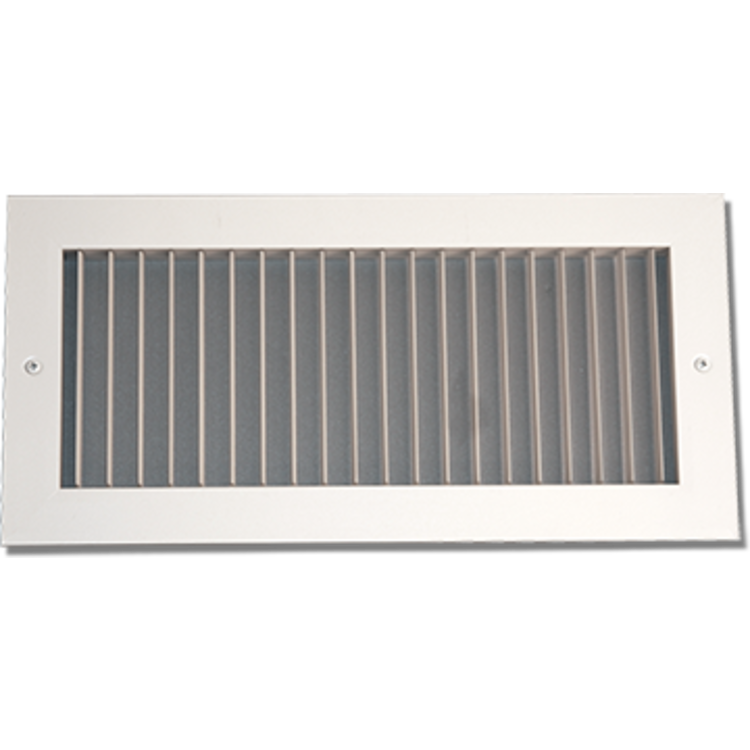

View 2 of Shoemaker 902-0-48X48 48X48 White Vent Cover (Aluminum) - Shoemaker 902-0 Series
View 3 of Shoemaker 902-0-48X48 48X48 White Vent Cover (Aluminum) - Shoemaker 902-0 Series

48X48 White Vent Cover (Aluminum) - Shoemaker 902-0 Series

SKU: 141947

This product is not currently available for purchase.

About the 48X48 White Vent Cover (Aluminum) - Shoemaker 902-0 Series

This White 48" x 48" Shoemaker 902-0 Series Vent Cover is designed to fit and cover a 48" wide by 48" high opening. Shoemaker has a complete line of products designed for homes, offices, stores, and many other commercial applications. The quality and simplicity of this air grille are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. The Shoemaker 902-0 Series vent cover comes with a recessed screwdriver-operated opposed blade damper. It is used to regulate the airflow through linked sections of adjacent blades that rotate in the opposite direction. Compared to other damper types, an opposed blade damper maintains a more even airflow. It also provides better control over the airflow in all operating positions. A recessed screwdriver-operated damper prevents any unnecessary adjustments of the damper setting. Be sure to measure the hole opening size instead of measuring the face plate of your old grille. This grille is designed to fit over a 48" x 48" existing hole or duct. Refer to the Specification Sheet for more information.

Product: Vents and Terminations
  Air Grille and Registers
Manufacturer: Shoemaker
Use: Heating and A/C
  Ducting and Venting
Color: White
Mpn # 902-0-48X48
Weight 92.16 lbs.
  • Optional tamper-proof screws are available
  • Optional square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead, available in square sizes only (902-NLC)
  • Optional heavy duty construction (902-HD)
  • Optional insect screen (902-IS)
  • Optional fractional I.D and O.D sizes available
  • Optional designer colors: almond, black velvet, bronze, Camaro silver, coffee tan, Navajo white, vanilla
  • Optional finishes available: satin anodized, mill
  • 902-O Recessed screwdriver operated opposed blade damper
  • Airfoil blades are parallel to the shortest dimension
  • Allows 2-way air deflection on one plane
  • Countersunk mounting holes for flush appearance with color matching Phillips posi-drive screws
  • Aluminum .055 T6 surface mount diffuser
  • Fractional sizes, inner dimension and outside dimension available
  • Nylon bushings for easy adjustment and quiet setting of airfoil blades
  • Isolated deflection diffuser with movable airfoil blades
  • Soft white
