Shoemaker 902-10X42 10X42 White Vent Cover (Aluminum) - Shoemaker 902 Series

10X42 White Vent Cover (Aluminum) - Shoemaker 902 Series

SKU: 133395

We are Sorry we no longer carry this item.

Check below for similar items!

About the 10X42 White Vent Cover (Aluminum) - Shoemaker 902 Series

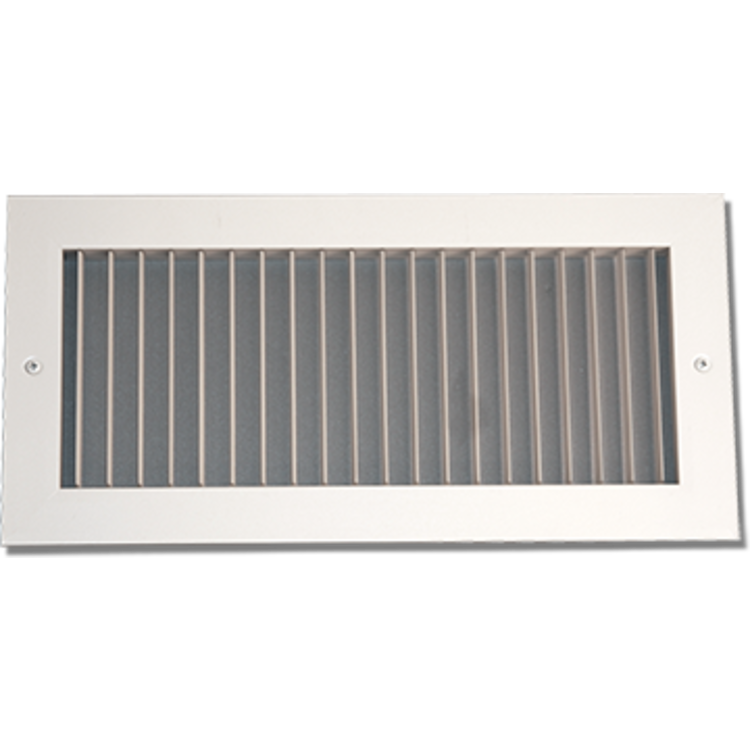

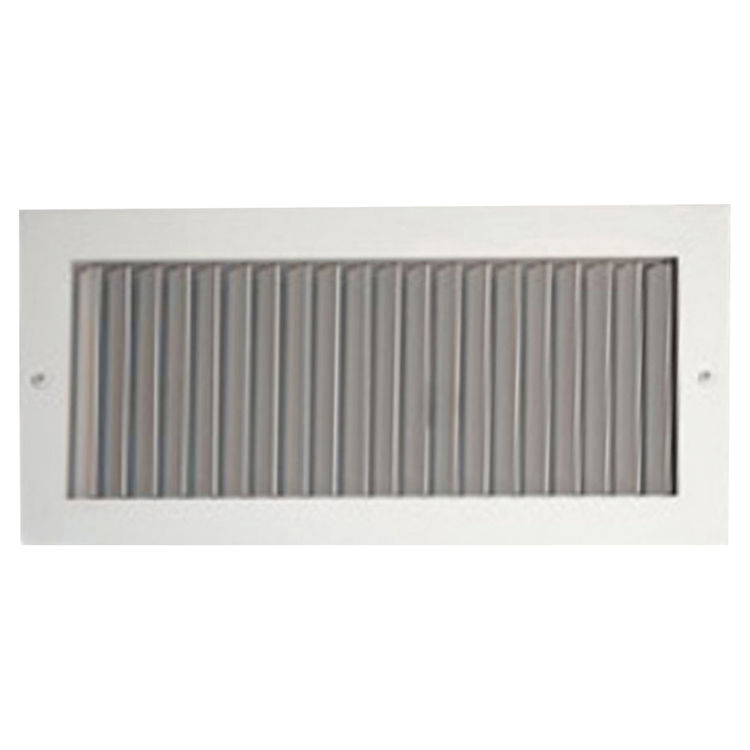

This White 10" x 42" Shoemaker 902 Series Vent Cover is designed to fit and cover a 10" wide by 42" high opening. Shoemaker has a complete line of products designed for homes, offices, stores, and many other commercial applications. The quality and simplicity of this airfoil blade single deflection diffuser are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. The Shoemaker 902 Series Aluminum Airfoil Blade Single Deflection Diffuser creates a 2-way air flow in a single plane. Its airfoil blades have nylon bushings for easy adjustment and quiet settings. The adjustable louvers on this particular air-grille run parallel to the shortest dimension. Its aluminum frame is extruded with signature line marks. Normally, vent covers are mounted in walls but this diffuser can be mounted in ceilings as well. The standard color of this grille is soft white but it is also available in driftwood tan. Optional designer colors, satin anodized aluminum and plain mill finishes are also available. The Shoemaker 902 Series Aluminum Airfoil Blade Single Deflection Diffuser can be ordered with "F" Torx center pin tamper-proof screws for added security. Be sure to measure the hole opening size instead of measuring the face plate of your old grille. This grille is designed to fit over a 10" x 42" existing hole or duct. Refer to the Specification Sheet for more information.

Product: Vents and Terminations
  Air Grille and Registers
Manufacturer: Shoemaker
Use: Heating and A/C
  Ducting and Venting
Color: White
Mpn # 902-10X42
Weight 16.80 lbs.
  • Optional tamper-proof screws are available
  • Optional recessed screwdriver operated opposed blade damper (902-O)
  • Optional square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead, available in square sizes only (902-NLC)
  • Optional heavy duty construction (902-HD)
  • Optional insect screen (902-IS)
  • Optional fractional I.D and O.D sizes available
  • Optional designer colors: almond, black velvet, bronze, Camaro silver, coffee tan, Navajo white, vanilla
  • Optional finishes available: satin anodized, mill
  • Airfoil blades are parallel to shortest dimension
  • Allows 2-way air deflection on one plane
  • Countersunk mounting holes for flush appearance with color matching Phillips posi-drive screws
  • Aluminum .055 T6 surface mount diffuser
  • Fractional sizes, inner dimension and outside dimension available
  • Nylon bushings for easy adjustment and quiet setting of airfoil blades
  • Isolated deflection diffuser with movable airfoil blades
  • Soft white
