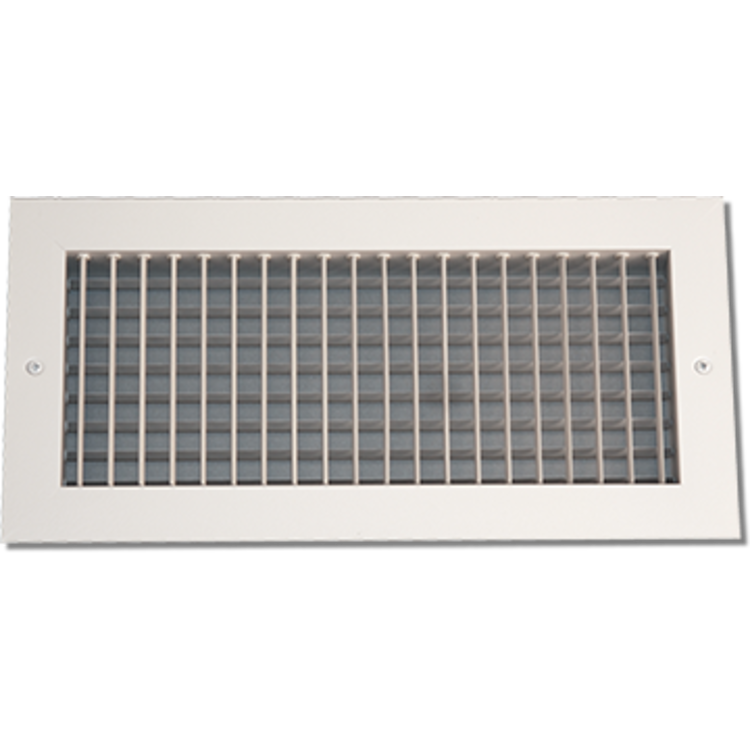

12" x 10" Double Deflection Adjustable Grille, Front Blades Parallel to Short Dimension, White - Shoemaker 904-12X10

SKU: 129345
$ 76.78 / ea
 Free Shipping!
Save 31% · Retail: $110.66

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 2-3 weeks

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

12" X 10" Double Deflection Adjustable Grille, Front Blades Parallel To Short Dimension, White - Shoemaker 904-12X10

SKU: 129345
$76.78/ea


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$76.78/ea

About the 12" x 10" Double Deflection Adjustable Grille, Front Blades Parallel to Short Dimension, White - Shoemaker 904-12X10

Act fast and order the 12" x 10" Double Deflection Adjustable Grille, Front Blades Parallel to Short Dimension in soft white (Shoemaker 904-12X10) with the experts at PlumbersStock. The 904 series airfoil aluminum blades are adjustable and run parallel to the shortest dimension. It provides 4-way airflow on one plane. It runs quietly because of nylon bushings that prevent metal from rattling. The front blades are parallel to the shortest dimension, and the back blades are parallel to the longest dimension. This grille does not come with a damper, you need to look to the 904-O series. Shoemaker is a name that heating and cooling professionals trust because of years of quality manufacturing.

Manufacturer: Shoemaker
Color: White
Material: Aluminum
Style: Parts
Product: Air Grille and Registers
Mpn # 904-12X10
Weight 4.80 lbs.
  • Optional tamper-proof screws are available
  • Optional insect screen (904-IS)
  • Optional heavy duty construction (904-HD)
  • Optional recessed screwdriver operated opposed blade damper (904-O)
  • Optional square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead, available in square sizes only (904-NLC)
  • Optional fractional I.D and O.D sizes available
  • Optional finishes available: satin anodized, mill
  • Optional designer colors: almond, black velvet, bronze, Camaro silver, coffee tan, Navajo white, vanilla
  • Front blades are parallel to shortest dimension
  • Back blades are parallel to longest dimension
  • Allows 4-way air deflection on one plane
  • Aluminum .055 T6 surface mount diffuser
  • Fractional sizes, inner dimension and outside dimension available
  • Nylon bushings for easy adjustment and quiet setting of airfoil blades
  • Countersunk mounting holes for flush appearance with color matching Phillips posi-drive screws
  • Standard colors: soft white, driftwood tan
