Shoemaker 904-30X4 30

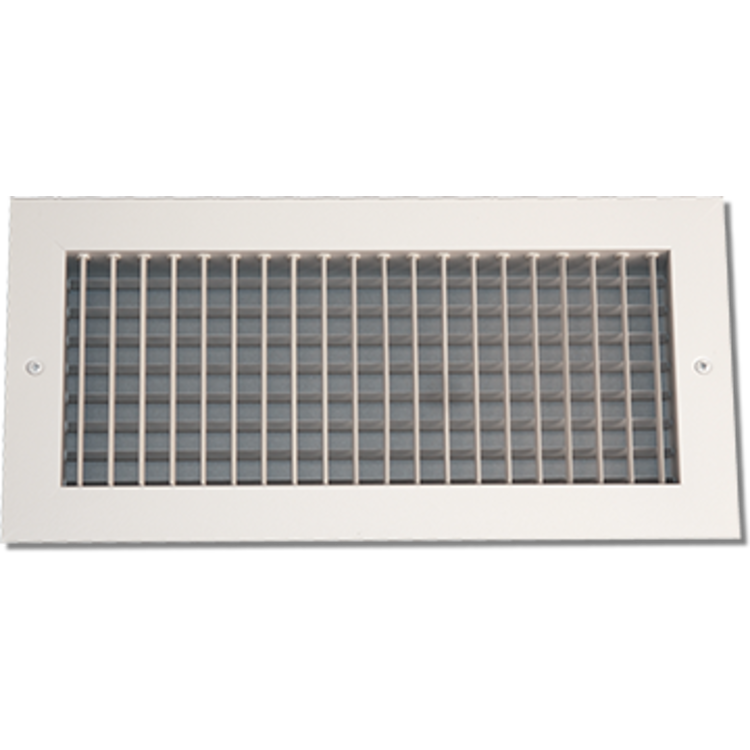

30" x 4" Double Deflection Adjustable Grille, Front Blades Parallel to Short Dimension, White - Shoemaker 904-30X4

SKU: 131387
$82.45/ea
 Free Shipping!

  Available to Ship in 2-3 weeks

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

30" X 4" Double Deflection Adjustable Grille, Front Blades Parallel To Short Dimension, White - Shoemaker 904-30X4

SKU: 131387
$82.45/ea


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$82.45/ea

About the Shoemaker 904-30X4

Get a bargain on the 30" x 4" Double Deflection Adjustable Grille, Front Blades Parallel to Short Dimension in soft white (Shoemaker 904-30X4) via PlumbersStock. We are known for great prices and rare parts. The 904 series airfoil aluminum blades are adjustable so you can diffuse the air how you please. It provides 4-way airflow on one plane. It runs quietly because of nylon bushings that prevent metal from rattling. The front blades are parallel to the shortest dimension, and the back blades are parallel to the longest dimension. This grille does not come with a damper, you need to look to the 904-O series. Shoemaker is known for heating and cooling reliability and innovative solutions.

Product: Vents and Terminations
  Air Grille and Registers
Manufacturer: Shoemaker
Style: Parts
Color: White
Mpn # 904-30X4
Weight 4.80 lbs.
  • Optional tamper-proof screws are available
  • Optional insect screen (904-IS)
  • Optional heavy duty construction (904-HD)
  • Optional recessed screwdriver operated opposed blade damper (904-O)
  • Optional square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead, available in square sizes only (904-NLC)
  • Optional fractional I.D and O.D sizes available
  • Optional designer colors: almond, black velvet, bronze, Camaro silver, coffee tan, Navajo white, vanilla
  • Optional finishes available: satin anodized, mill
  • Front blades are parallel to shortest dimension
  • Back blades are parallel to longest dimension
  • Allows 4-way air deflection on one plane
  • Aluminum .055 T6 surface mount diffuser
  • Fractional sizes, inner dimension and outside dimension available
  • Nylon bushings for easy adjustment and quiet setting of airfoil blades
  • Countersunk mounting holes for flush appearance with color matching Phillips posi-drive screws
  • Standard colors: soft white, driftwood tan
