Shoemaker 904-36X12 36

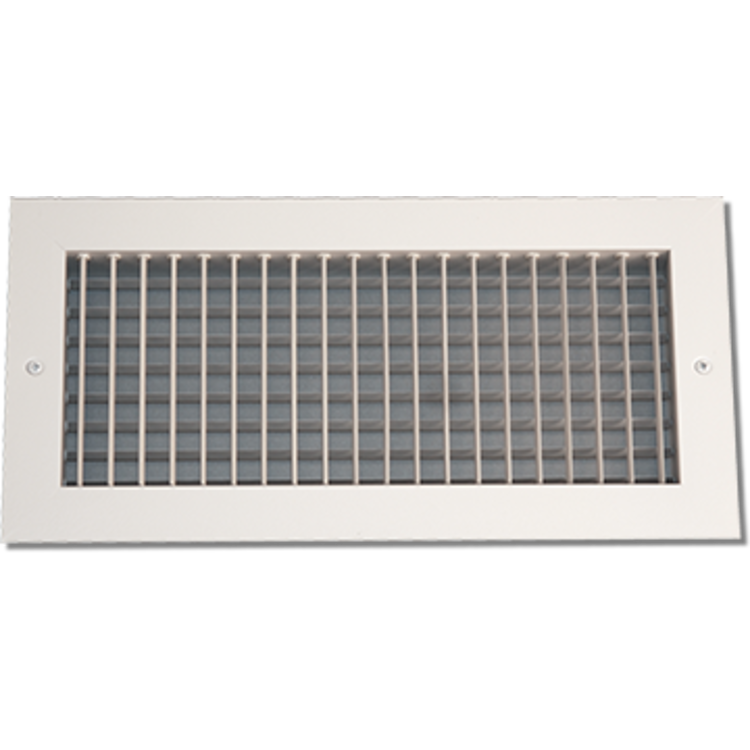

36" x 12" Double Deflection Adjustable Grille, Front Blades Parallel to Short Dimension, White - Shoemaker 904-36X12

SKU: 135536
$214.00/ea
 Free Shipping!

  Available to Ship in 2-3 weeks

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

36" X 12" Double Deflection Adjustable Grille, Front Blades Parallel To Short Dimension, White - Shoemaker 904-36X12

SKU: 135536
$214.00/ea


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$214.00/ea

About the Shoemaker 904-36X12

Get a discount on the 36" x 12" Double Deflection Adjustable Grille, Front Blades Parallel to Short Dimension in soft white (Shoemaker 904-36X12) and get a great solution for your setup. The 904 series airfoil aluminum blades are adjustable so you can diffuse the air how you please. It provides 4-way airflow on one plane. It runs quietly because of nylon bushings that prevent metal from rattling. The front blades are parallel to the shortest dimension, and the back blades are parallel to the longest dimension. This grille does not come with a damper, you need to look to the 904-O series. Shoemaker products will last you a long time, but parts will wear, and you can find replacements here when they do.

Manufacturer: Shoemaker
Material: Aluminum
Product: Air Grille and Registers
Color: White
Style: Parts
Mpn # 904-36X12
Weight 17.28 lbs.
  • Optional tamper-proof screws are available
  • Optional insect screen (904-IS)
  • Optional heavy duty construction (904-HD)
  • Optional recessed screwdriver operated opposed blade damper (904-O)
  • Optional square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead, available in square sizes only (904-NLC)
  • Optional fractional I.D and O.D sizes available
  • Optional finishes available: satin anodized, mill
  • Optional designer colors: almond, black velvet, bronze, Camaro silver, coffee tan, Navajo white, vanilla
  • Front blades are parallel to shortest dimension
  • Back blades are parallel to longest dimension
  • Allows 4-way air deflection on one plane
  • Aluminum .055 T6 surface mount diffuser
  • Fractional sizes, inner dimension and outside dimension available
  • Nylon bushings for easy adjustment and quiet setting of airfoil blades
  • Countersunk mounting holes for flush appearance with color matching Phillips posi-drive screws
  • Standard colors: soft white, driftwood tan
