Shoemaker 904-0-24X6 24

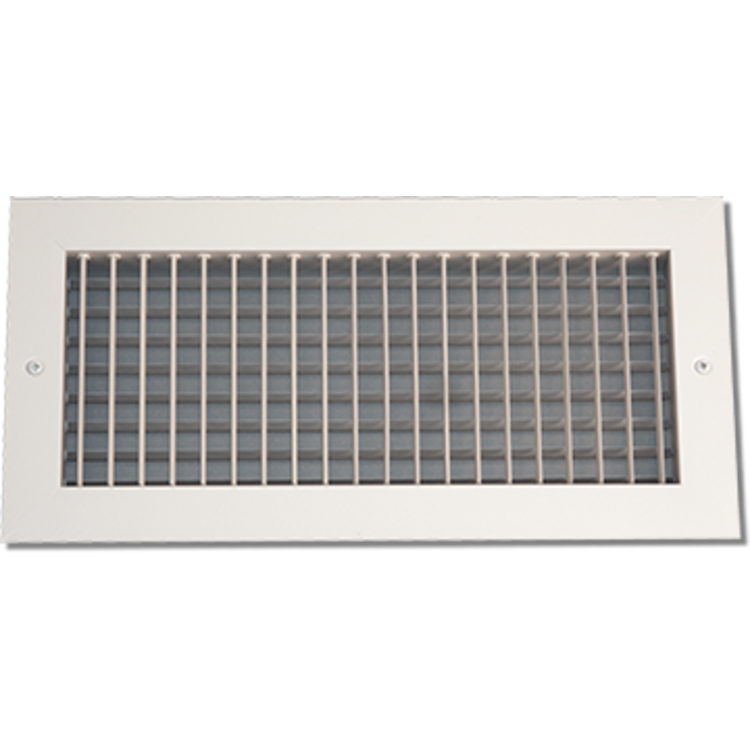

24" x 6" Double Deflection Adjustable Grille, Front Blades Parallel to Short Dimension, OB Damper, White - Shoemaker 904-0-24X6

SKU: 132943
$ 129.00 / ea
 Free Shipping!

  Available to Ship in 2-3 weeks

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

24" X 6" Double Deflection Adjustable Grille, Front Blades Parallel To Short Dimension, Ob Damper, White - Shoemaker 904-0-24X6

SKU: 132943
$129.00/ea


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$129.00/ea

About the Shoemaker 904-0-24X6

Act fast and order the 24" x 6" Double Deflection Adjustable Grille, Front Blades Parallel to Short Dimension with an Opposed Blade Damper in soft white (Shoemaker 904-0-24X6) and update your setup with a trusted option. The 904-O series airfoil aluminum blades are adjustable for your comfort and convenience. It provides 4-way airflow on one plane. It runs quietly because of nylon bushings that prevent metal from rattling. The front blades are parallel to the shortest dimension, and the back blades are parallel to the longest dimension. This grille does come equipped with an opposed blade damper. Shoemaker is a leader among HVAC manufacturers because they always deliver when it comes to reliability.

The Shoemaker 904-0 Series vent cover comes with a recessed screwdriver-operated opposed blade damper. It is used to regulate the airflow through linked sections of adjacent blades that rotate in the opposite direction. Compared to other damper types, an opposed blade damper maintains a more even airflow. It also provides better control over the airflow in all operating positions. It has an extruded aluminum surface mount frame with signature line marks.

Manufacturer: Shoemaker
Color: White
Material: Aluminum
Product: Air Grille and Registers
Mpn # 904-0-24X6
Weight 5.76 lbs.
  • Optional tamper-proof screws are available
  • Optional insect screen (904-IS)
  • Optional heavy duty construction (904-HD)
  • Optional square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead, available in square sizes only (904-NLC)
  • Optional fractional I.D and O.D sizes available
  • Optional designer colors: almond, black velvet, bronze, Camaro silver, coffee tan, Navajo white, vanilla
  • Optional finishes available: satin anodized, mill
  • 904-O recessed screwdriver operated opposed blade damper
  • Front blades are parallel to shortest dimension
  • Back blades are parallel to longest dimension
  • Allows 4-way air deflection on one plane
  • Aluminum .055 T6 surface mount diffuser
  • Fractional sizes, inner dimension and outside dimension available
  • Nylon bushings for easy adjustment and quiet setting of airfoil blades
  • Countersunk mounting holes for flush appearance with color matching Phillips posi-drive screws
  • Standard colors: soft white, driftwood tan
