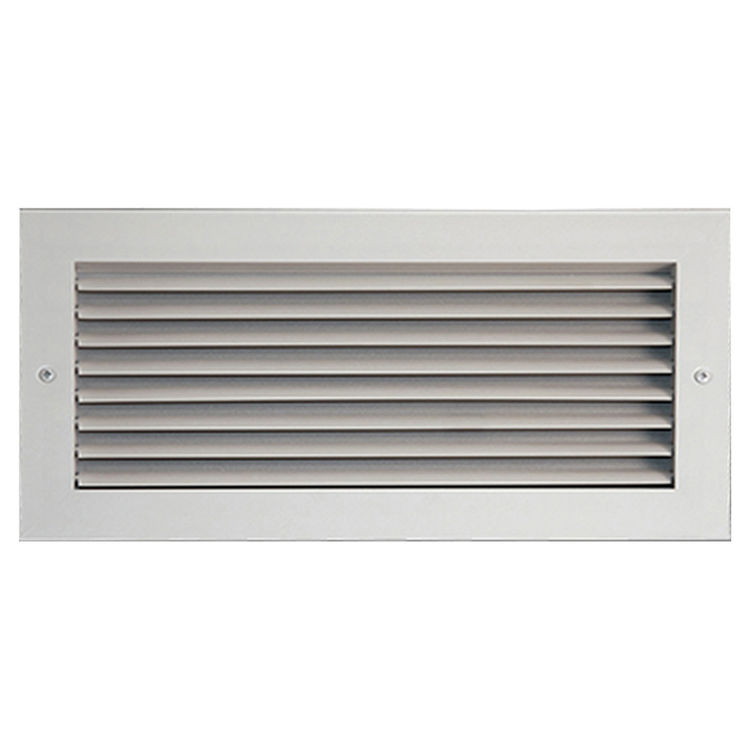

This White 22" x 14" Shoemaker 915-0 Series Vent Cover is designed to fit and cover a 22" wide by 14" high opening. Shoemaker has a complete line of products designed for homes, offices, stores, and many other commercial applications. The quality and simplicity of this bar blade grille are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. The Shoemaker 915-0 Series Fixed 45° Bar Blade Grille is designed with extruded aluminum rigid bar louvers at 45° that are parallel to the longest dimension, allowing a minimal view of the air duct. It has an extruded aluminum surface mount frame with signature line marks. For a streamlined continuous look, the center margins are placed on the backside of the grille. The Shoemaker 915-0 Series vent cover comes with a recessed screwdriver-operated opposed blade damper. It is used to regulate the airflow through linked sections of adjacent blades that rotate in the opposite direction. Compared to other damper types, an opposed blade damper maintains a more even airflow. It also provides better control over the airflow in all operating positions. A recessed screwdriver-operated damper prevents any unnecessary adjustments of the damper setting. The Shoemaker 915-0 Series Fixed 45° Bar Blade Grille can be ordered with "F" Torx center pin tamper-proof screws for added security. Be sure to measure the hole opening size instead of measuring the face plate of your old grille. This grille is designed to fit over a 22" x 14" existing hole or duct. Refer to the Specification Sheet for more information.
|Product:||Vents and Terminations|
|Use:||Heating and A/C|
|Ducting and Venting|
