8X48 White Vent Cover (Aluminum) – Shoemaker 916-0 Series

SKU: 136530
$258.00/ea Free Shipping!

   Available to Ship in 8-10 days

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

8X48 White Vent Cover (Aluminum) – Shoemaker 916-0 Series

SKU: 136530

Ships From Price Qty
Order From Manufacturer
Available to Ship in 8-10 days

About the Shoemaker 916-0-8X48

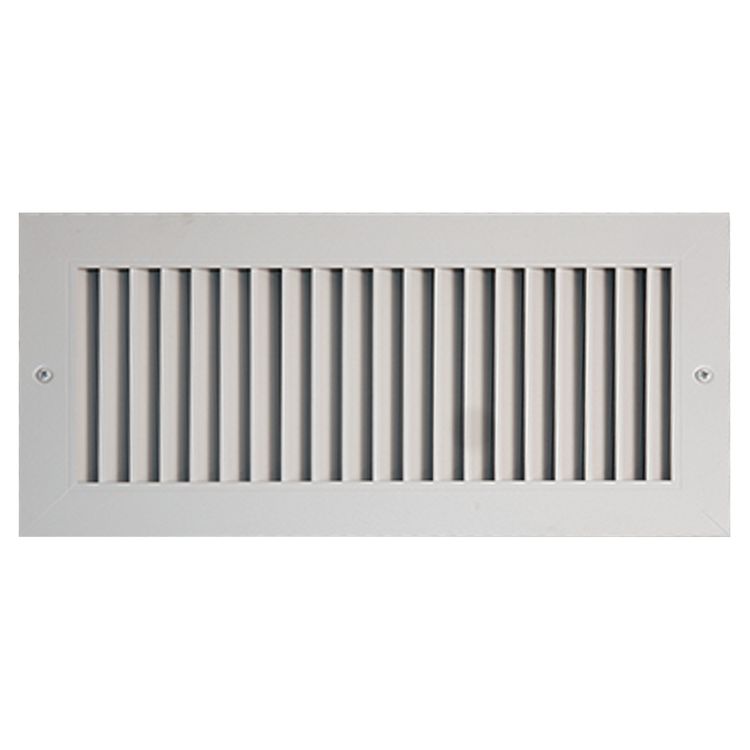

This White 8" x 48" Shoemaker 916-0 Series Vent Cover is designed to fit and cover an 8” wide by 48” high opening. Shoemaker has a complete line of products designed for homes, offices, stores, and many other commercial applications. The quality and simplicity of this bar blade grille are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. The Shoemaker 916-0 Series Fixed 45° Bar Blade Grille is designed with extruded aluminum rigid bar louvers at 45° that are parallel to the shortest dimension, allowing a minimal view of the air duct. It has an extruded aluminum surface mount frame with signature line marks. For a streamlined continuous look, the center margins are placed on the backside of the grille. The Shoemaker 916-0 Series vent cover comes with a recessed screwdriver-operated opposed blade damper. It is used to regulate the airflow through linked sections of adjacent blades that rotate in the opposite direction. Compared to other damper types, an opposed blade damper maintains a more even airflow. It also provides better control over the airflow in all operating positions. A recessed screwdriver-operated damper prevents any unnecessary adjustments of the damper setting. The Shoemaker 916-0 Series Fixed 45° Bar Blade Grille can be ordered with “F” Torx center pin tamper-proof screws for added security. Be sure to measure the hole opening size instead of measuring the face plate of your old grille. This grille is designed to fit over an 8" x 48" existing hole or duct. Refer to the Specification Sheet for more information.

Product Details

Product: Vents and Terminations
Manufacturer: Shoemaker
Use: Ducting and Venting
Material: Aluminum
Mpn # 916-0-8X48
Weight 15.36 lbs.

Product Features

  • Optional tamper-proof screws are available
  • Optional insect screen (916-IS)
  • Optional heavy duty construction (916-HD)
  • Optional square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead, available in square sizes only (916-NLC)
  • Optional fractional I.D and O.D sizes available
  • Optional finish in satin anodized is available
  • Optional designer colors: almond, black velvet, bronze, Camaro silver, coffee tan, Navajo white, vanilla
  • 916-O recessed screwdriver operated opposed blade damper
  • .055 T6 aluminum build surface mount return air grille
  • Minimal vision of the air duct
  • Blades parallel to shortest dimension
  • Can be mounted horizontally or vertically
  • Center margins are mounted on the backside of the grille for a streamline look
  • Countersunk mounting holes for flush appearance with color matching Phillips posi-drive screws
  • Standard colors: soft white, driftwood tan
