18X6 White Vent Cover (Stamped Steel One Piece Frame) – Shoemaker 932-0 Series

SKU: 128847

 Free Shipping!

Manufacturer stocks, ships quickly!

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

18X6 White Vent Cover (Stamped Steel One Piece Frame) – Shoemaker 932-0 Series

SKU: 128847

Ships From Price Qty
Order From Manufacturer
Manufacturer stocks, ships quickly!

About the Shoemaker 932-0-18X6

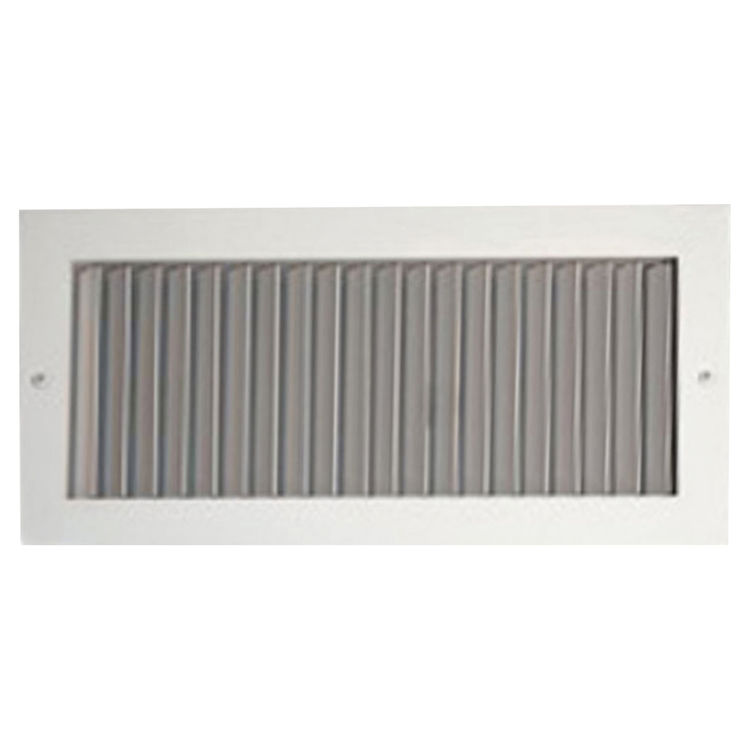

This White 18" x 6" Shoemaker 932-0 Series Vent Cover is designed to fit and cover an 18" wide by 6" high opening. Shoemaker has a complete line of products designed for homes, offices, stores, and many other commercial applications. The quality and simplicity of this airfoil blade single deflection diffuser are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. The Shoemaker 932-0 Series Steel Adjustable Blade Single Deflection Diffuser creates a 2-way air flow in a single plane. Its blades have nylon bushings for easy adjustment and quiet settings. The adjustable louvers on this particular air grille run parallel to the shortest dimension. For a smooth appearance, it has countersunk mounting holes with Phillips posi-drive screws with colors that match the vent cover. The Shoemaker 932-0 Series vent cover comes with a recessed screwdriver-operated opposed blade damper. It is used to regulate the airflow through linked sections of adjacent blades that rotate in the opposite direction. Compared to other damper types, an opposed blade damper maintains a more even airflow. It also provides better control over the airflow in all operating positions. A recessed screwdriver-operated damper prevents any unnecessary adjustments of the damper setting. The standard color of this grille is soft white. The Shoemaker 932-0 Series Steel Adjustable Blade Single Deflection Diffuser can be ordered with "F" Torx center pin tamper-proof screws for added security. Be sure to measure the hole opening size instead of measuring the face plate of your old grille. This grille is designed to fit over an 18" x 6" existing hole or duct. Refer to the Specification Sheet for more information.

Product Details

Product: Air Grille and Registers
Manufacturer: Shoemaker
Use: Ducting and Venting
Mpn # 932-0-18X6
Weight 4.32 lbs.

Product Features

  • Optional tamper proof screws are available
  • Optional lever operated opposed blade damper (L-932-O)
  • Optional square to round ADC compliant 2 No Labor Collar with roll formed retention bead, available in square sizes only (932-NLC)
  • 932-O recessed screwdriver operated opposed blade damper
  • Rust-resistant precoat with durable powder finish
  • Available in even sizes up to 30 x 30
  • Stamped steel one piece frame
  • Adjustable blades are parallel to shortest dimension
  • Allows 2-way air deflection on one plane
  • Countersunk mounting holes for flush appearance with color matching Phillips posi-drive screws
  • Nylon bushings for easy adjustment and quiet setting of airfoil blades
  • Standard colors: soft white
