12X4 White Vent Cover (Steel)–Shoemaker RS34-0 Series

SKU: 134029
$165.00/ea Free Shipping!

   Available to Ship in 8-10 days

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

12X4 White Vent Cover (Steel)–Shoemaker RS34-0 Series

SKU: 134029

Ships From Price Qty
Order From Manufacturer
Available to Ship in 8-10 days

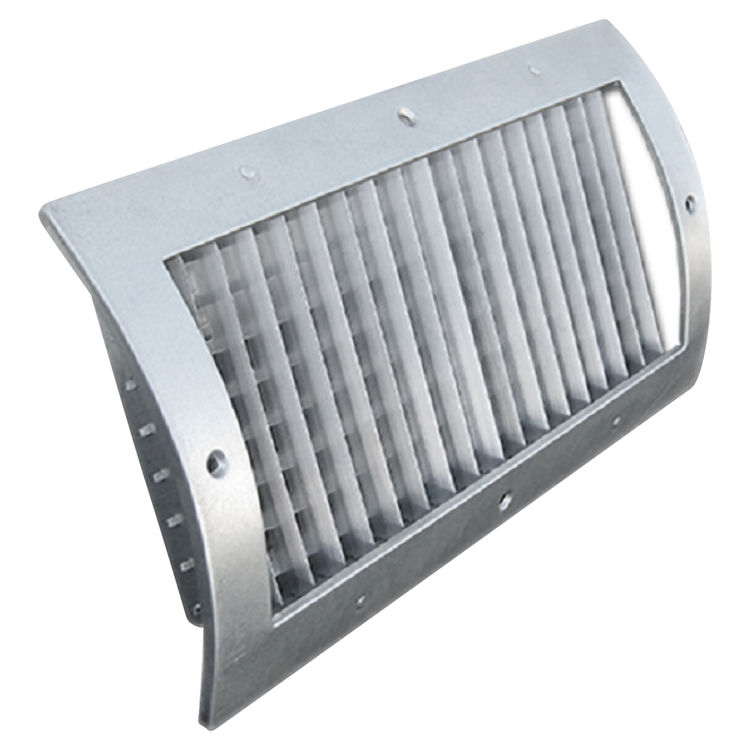

About the Shoemaker RS34-0-12X4

This White 12" x 4" Shoemaker RS34-0 Series Vent Cover is designed to fit and cover a 12” wide by 4” high opening. Shoemaker has a complete line of products designed for homes, offices, stores, and many other commercial and residential applications. The quality and simplicity of this double deflection diffuser are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. The Shoemaker RS34-0 Radius Spiral Pipe Diffuser (Double Deflection) is a radius mount spiral pipe diffuser. This diffuser is designed with a single-piece curved frame that has a foam gasket for a tight seal. Its blades have nylon bushings for easy adjustment and quiet settings. The front louvers on this particular air-grille run parallel to the shortest dimension while the back louvers run parallel to the longest dimension. This diffuser is available in sizes that will fit spiral pipe diameters of 8” – 48”. (The spiral pipe’s diameter must be 4” larger than the width of the diffuser.) The Shoemaker RS34-0 Series vent cover comes with a recessed screwdriver-operated opposed blade damper. It is used to regulate the airflow through linked sections of adjacent blades that rotate in the opposite direction. Compared to other damper types, an opposed blade damper maintains a more even airflow. It also provides better control over the airflow in all operating positions. A recessed screwdriver-operated damper prevents any unnecessary adjustments of the damper setting. The standard color of this grille is soft white but it is also available in driftwood tan. Optional designer colors and aluminum paint finishes are also available. Unlike other products, Shoemaker grilles have a baked-on textured polyester powder coat that can resist scratches and does not wear or fade out easily. The Shoemaker Manufacturing Company leads the field in innovative air-grille design and it guarantees that its products are free from defective materials. Be sure to measure the hole opening size instead of measuring the face plate of your old grille. The Shoemaker RS34-0 Series Grille is designed to fit over a 12" x 4" existing hole or duct. Refer to the Specification Sheet for more information.

Product Details

Product: Air Grille and Registers
Manufacturer: Shoemaker
Use: Ducting and Venting
Material: Steel
Mpn # RS34-0-12X4
Weight 1.92 lbs.

Product Features

  • Optional galvanized finish (RS-GALV)
  • Optional perforated radius spiral pipe diffuser (RSP)
  • Optional half-length screwdriver operated scoop extractor (RS34-SC)
  • Optional full-length screwdriver operated scoop extractor, 24 maximum length scoop (RS34-FS)
  • Optional designer colors: almond black velvet, bronze, Camaro silver, coffee tan, Navajo white, vanilla
  • Optional finish: Aluminum paint
  • RS34-O recessed screwdriver operated opposed blade damper
  • Double deflection transition box
  • 4-way airflow adjustment
  • Nylon bushing for easy adjustments
  • Single piece formed frame
  • Product sizes available to fit spiral pipe diameter within this range: 8 48
  • Spiral pipe diameter must be 4 larger than the diffusers width
  • Foam gasket for airtight fit
  • Front blades are parallel to shortest dimension
  • Back blades are parallel to longest dimension
  • Standard Colors: soft white, driftwood tan
