Shoemaker RS34-12X6G Shoemaker RS34-12X6G - Radius Spiral Pipe Grille 12

Product Options

Shoemaker RS34-12X6G - Radius Spiral Pipe Grille 12" x 6" (Double Deflection) - Galvanized

SKU: 131755
 Free Shipping!

  Available to Ship in 2-3 weeks

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

Shoemaker RS34-12X6G - Radius Spiral Pipe Grille 12" X 6" (double Deflection) - Galvanized

SKU: 131755

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Shoemaker RS34-12X6G

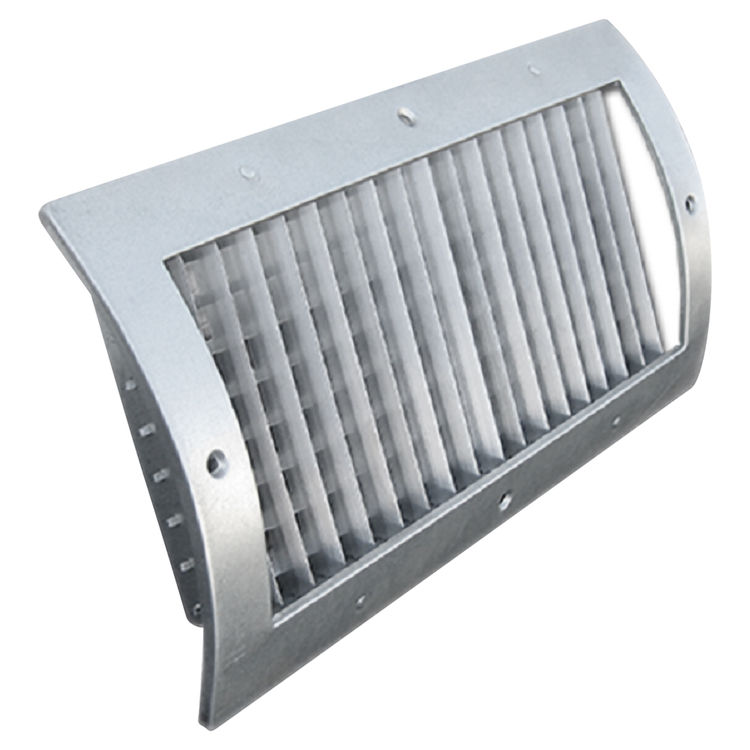

This galvanized 12" x 6" Shoemaker RS34-GALV Series Spiral Pipe Vent Cover is designed to fit and cover a 12" wide by 6" high opening. The quality and simplicity of this double deflection diffuser are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real-world applications.

The Shoemaker RS34-12X6G is manufactured from galvanized steel that went through a chemical process to keep it from corroding. The same process also gave the steel a more durable, hard to scratch finish. This diffuser is designed with a single-piece curved frame that has a foam gasket for a tight seal. Its blades have nylon bushings for easy adjustment and quiet settings. The front louvers on this particular air-grille run parallel to the shortest dimension while the back louvers run parallel to the longest dimension. This diffuser is available in sizes that will fit spiral pipe diameters of 8" – 48". (The spiral pipe's diameter must be 4" larger than the width of the diffuser.)

Unlike other competing products, Shoemaker grilles have a baked-on textured polyester powder coat that can resist scratches and does not wear or fade out easily. Be sure to measure the hole opening size instead of measuring the face plate of your old grille. The Shoemaker RS34-12X6G is designed to fit over a 12" x 6" existing hole or duct. Refer to the Specification Sheet for more information.

Manufacturer: Shoemaker
Product: Air Grille and Registers
Use: Ducting and Venting
Color: Galvanized
Air flow Direction: 4-Way
Type: Air Grille
Length: 12"
Width: 6"
Material: Steel
Shape: Curved
Mpn # RS34-12X6G
Weight 2.88 lbs.
  • Optional perforated radius spiral pipe diffuser (RSP)
  • Optional recessed screwdriver operated opposed blade damper (RS34-O)
  • Optional half-length screwdriver operated scoop extractor (RS34-SC)
  • Optional full-length screwdriver operated scoop extractor, 24 maximum length scoop (RS34-FS)
  • Optional designer colors: almond black velvet, bronze, Camaro silver, coffee tan, Navajo white, vanilla
  • Galvanized finish
  • Double deflection transition box
  • 4-way airflow adjustment
  • Nylon bushing for easy adjustments
  • Single piece formed frame
  • Product sizes available to fit spiral pipe diameter within this range: 8 48
  • Spiral pipe diameter must be 4 larger than the diffusers width
  • Foam gasket for airtight fit
  • Front blades are parallel to shortest dimension
  • Back blades are parallel to longest dimension
