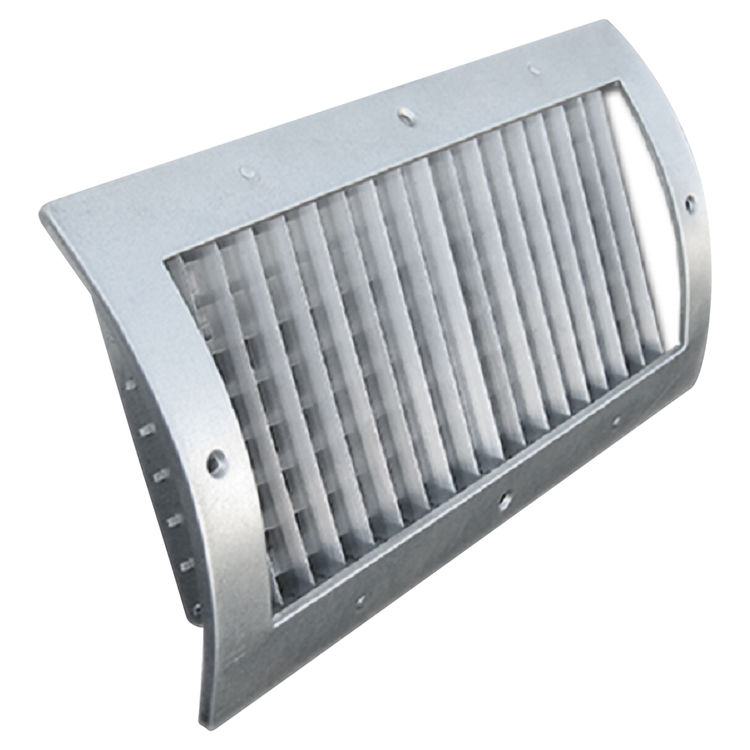

This White 12" x 4" Shoemaker RS34-SC Series Vent Cover is designed to fit and cover a 12” wide by 4” high opening. Shoemaker has a complete line of products designed for homes, offices, stores, and many other commercial and residential applications. The quality and simplicity of this double deflection diffuser are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. The Shoemaker RS34-SC Radius Spiral Pipe Diffuser (Double Deflection) is a radius mount spiral pipe diffuser. This diffuser is designed with a single-piece curved frame that has a foam gasket for a tight seal. Its blades have nylon bushings for easy adjustment and quiet settings. The front louvers on this particular air-grille run parallel to the shortest dimension while the back louvers run parallel to the longest dimension. This diffuser is available in sizes that will fit spiral pipe diameters of 8” – 48”. (The spiral pipe’s diameter must be 4” larger than the width of the diffuser.) The RS34-SC comes with a half-length screwdriver-operated scoop extractor which covers the half length of the diffuser. The scoop extractor provides a controlled and balanced air intake. Achieving air balance in a facility is imperative to air quality, safety and energy efficiency. The standard color of this grille is soft white but it is also available in driftwood tan. Optional designer colors and aluminum paint finishes are also available. Unlike other products, Shoemaker grilles have a baked-on textured polyester powder coat that can resist scratches and does not wear or fade out easily. The Shoemaker Manufacturing Company leads the field in innovative air-grille design and it guarantees that its products are free from defective materials. Be sure to measure the hole opening size instead of measuring the face plate of your old grille. The Shoemaker RS34-SC Series Grille is designed to fit over a 12" x 4" existing hole or duct. Refer to the Specification Sheet for more information.
|Product:||Air Grille and Registers|
|Use:||Ducting and Venting|
