18X12 White Vent Cover (Galvanized)–Shoemaker SD34-GALV-SC Series

SKU: 136197


Manufacturer, ships quickly!

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

18X12 White Vent Cover (Galvanized)–Shoemaker SD34-GALV-SC Series

SKU: 136197

Ships From Price Qty
Order From Manufacturer
Manufacturer, ships quickly!

About the Shoemaker SD34-SC-18X12G

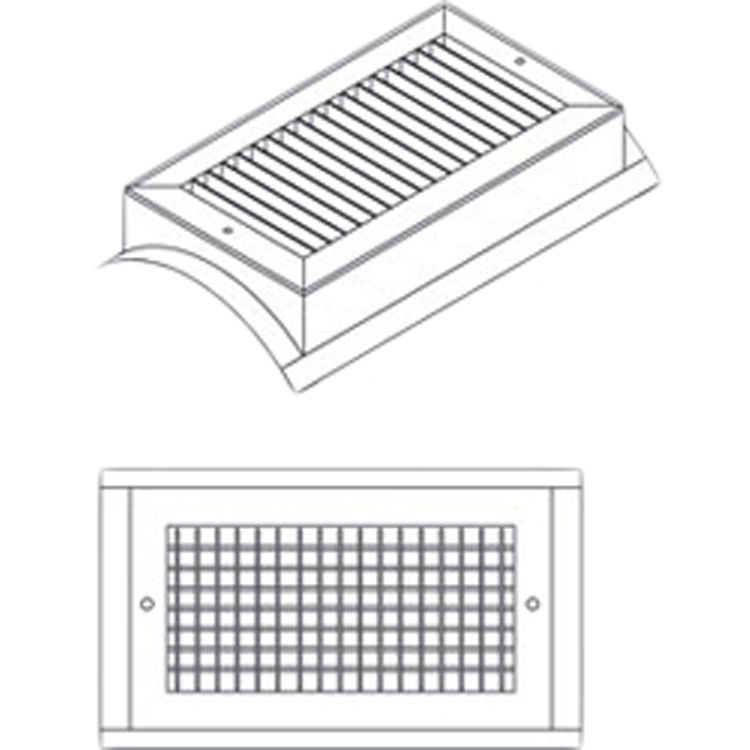

This White 18" x 12" Shoemaker SD34-GALV-SC Series Vent Cover is designed to fit and cover an 18" wide by 12" high opening. Shoemaker has a complete line of products designed for homes, offices, stores, and many other commercial and residential applications. The quality and simplicity of this double deflection diffuser are only two of the many reasons why Shoemaker Manufacturing leads the field in innovative air-grille design for real world applications. The SD34-GALV-SC Series Spiral Pipe Diffuser (Double Deflection) is manufactured from galvanized steel that went through a chemical process to keep it from corroding. The same process also gave the steel a more durable, hard to scratch finish. This diffuser is designed with a curved saddle that has a neoprene open-cell gasket for a tight seal. Its blades have nylon bushings for easy adjustment and quiet settings. The front louvers on this particular air-grille run parallel to the shortest dimension while the back louvers run parallel to the longest dimension. This diffuser is available in sizes that will fit spiral pipe diameters of 8" – 48". (The spiral pipe's diameter must be 4" larger than the width of the diffuser). The SD34-GALV-SC comes with a half-length screwdriver-operated scoop extractor which covers the half length of the diffuser. The scoop extractor provides a controlled and balanced air intake. Achieving air balance in a facility is imperative to air quality, safety and energy efficiency. The standard color of this grille is soft white. Optional designer colors and aluminum paint finishes are also available. Unlike other products, Shoemaker grilles have a baked-on textured polyester powder coat that can resist scratches and does not wear or fade out easily. The Shoemaker Manufacturing Company leads the field in innovative air-grille design and it guarantees that its products are free from defective materials. Be sure to measure the hole opening size instead of measuring the face plate of your old grille. This grille is designed to fit over an 18" x 12" existing hole or duct. Refer to the Specification Sheet for more information.

Product Details

Product: Air Grille and Registers
Manufacturer: Shoemaker
Use: Ducting and Venting
Mpn # SD34-SC-18X12G
Weight 8.64 lbs.

Product Features

  • All Blades Adjustable
  • Sd 600P - Perforated Diffuser In Transition Box
  • Sd34 O - With Recessed Screwdriver Operated Opposed Blade Damper
  • Sd34-Galv - Galvanized Finished
  • Sd34-Sc - Screwdriver Operated Air Scoop Extractor (Maximum Lenght 24")
  • Sdlf - Linear Diffuser In Transition Box
  • Soft White
  • Spiral Pipe Diffuser Has Radius Transition
  • Standard Color Or Designer Color Finish Available On This Product
  • Transition Box Style Spiral Mount Diffuser
  • Allows 4-Way Airflow Adjustment
  • Available In 8" Thru 36" Spiral Diameters (Note: Spiral Diameter Must Be 4" Larger Than Register Width)
  • Back Blades Are Parallel To Longest Dimension
  • Curved Saddle Fits Spiral Radius
  • Double Deflection Diffuser
  • Front Blades Are Parallel To Shortest Dimension
  • Neoprene Open Cell Gasket For Airtight Fit
  • Nylon Bushings For Easy Adjustment
