Sloan Regal 180 XL - Exposed Urinal Flushometer

SKU: 2761
$146.61/ea
 Free Shipping!
Save 34% · Retail: $222.20

  Available to Ship in 2-3 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$146.61/ea

About the Sloan 3082453

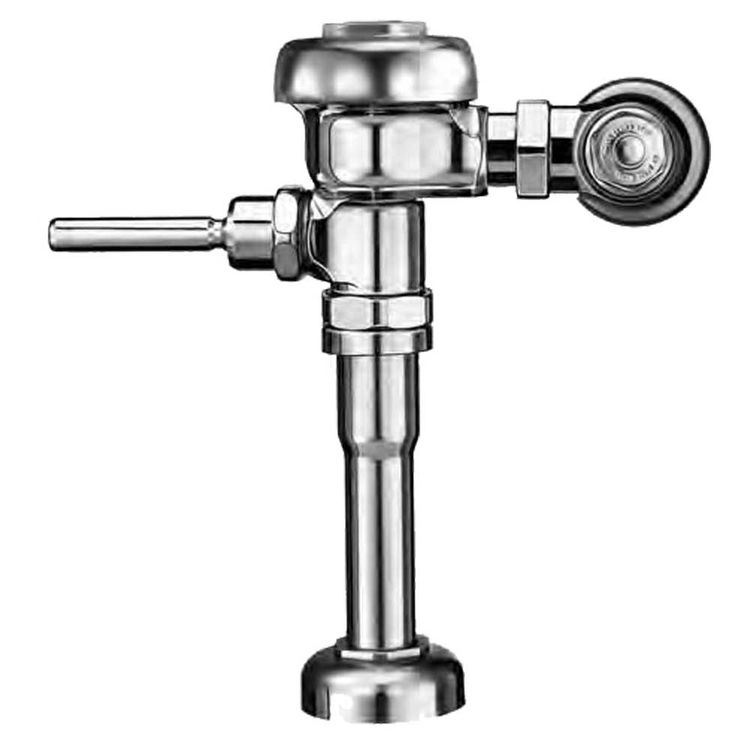

The Sloan Regal 180 XL is an exposed urinal flushometer for top spud bowls that are either on the floor or hanging on the wall. It has a flush cycle that uses 3.5 gallons per flush (13.2 liters per flush) and is controlled by Para-Flo Technology for low consumption flush precision. To assure water is low, this incorporates an ADA-compliant metal oscillating non-hold-open handle and no external volume adjustment. It also has the PERMEX flushometer diaphragm, which is a synthetic rubber diaphragm with dual filtered fixed bypass and is one of the industry's most advanced and innovative flushometer diaphragms. For chloramine resistance, this rubber compound is used in the handle packing, stop seat and vacuum breaker.


Included with the 180 XL flushometer are a control stop plugsweat solder adapter with a cover tube, an adjustable tailpiecespud coupling and spud flange for 1-1/4" top spud, a vacuum breaker flush connection, and a cast wall flange with a set screw, as well as a 1" I.P.S. screwdriver Bak-Chek Angle Stop. This flushometer is built of high copperlow zinc brass castings to ensure resistance to the dezincification process. The Sloan Regal 180 XL should have a minimum distance of 2-1/4" from its center to the finished wall upon installation. Overall, the valve body, cover, tailpiece, and control stop conform with ASTM Alloy Classification for Semi-Red Brass.


Sloan is the leading maker of water-saving products in the world. They've set the standard for water efficiency in the industry, with products that are made to last. Their commitment to safeguarding life's most valuable resource is demonstrated via increased levels of performance and accountability. At PlumbersStock, we want our clients to be able to experience Sloan's excellent discoveries, thus we sell their items at a low cost. We look forward to seeing your purchase from us. You may also check other bathroom products like bidet seats and accessories here. Add to cart now!

Product Details

Manufacturer: Sloan
Product: Top Spud Flush Valve
Product Collection: Regal
Type: Closet/ urinal
ADA: Yes
Style: Manual
Color: Chrome
Mount Type: Deck Mount
Material: Brass
Mpn # 3082453
Shipping Dimensions 9.8" x 4.3" x 9.0"
Weight 6.97 lbs.

Product Features

  • Exposed Diaphram Type Manual Flushometer
  • 1" IPS Screwdriver Stop
  • High Copper Low Zinc Brass Construction for Dezincification Resistance
  • PERMEX Molded Packing and Seats for Chloramine Resistance
  • Cast Wall Flange and Set Screw
  • Non-Hold open Handle for Water Conservation
  • Complies with ADA Requirements
  • Conventional Flush 3.5 GPF
