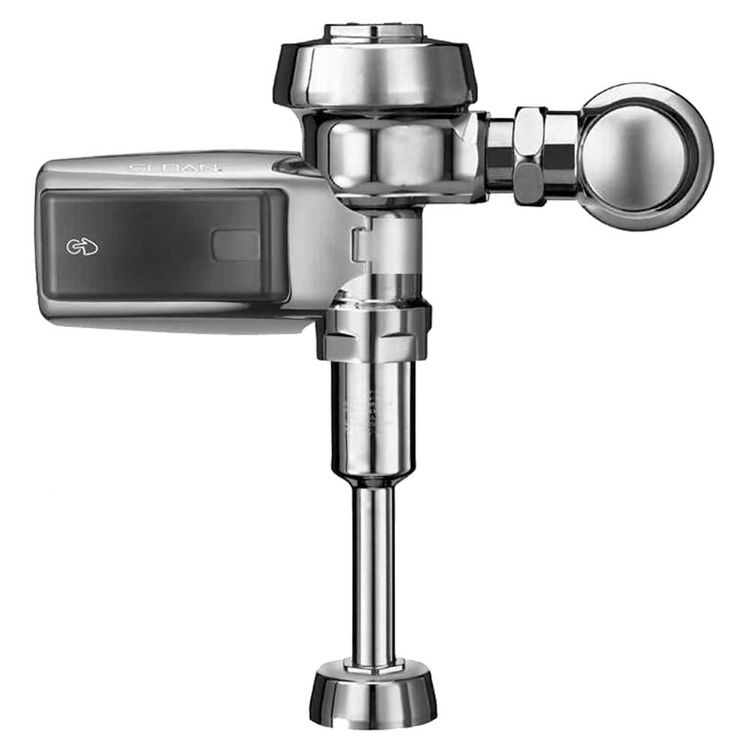

Sloan Royal 186 SMOOTH-1.5 Exposed Sensor Urinal Flushometer (3012660)
Sloan 3012660 Sloan Royal 186 SMOOTH-1.5 Exposed Sensor Urinal Flushometer (3012660)

Sloan Royal 186 SMOOTH-1.5 Exposed Sensor Urinal Flushometer (3012660)

SKU: 13685
$ 430.24 / ea
 Free Shipping!
Save 35% · Retail: $661.90

  Available to Ship in 2-3 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Sloan 3012660

Sloan 3012660

Manufacturer: Sloan
Product: Top Spud Flush Valve
Type: Closet/ urinal
ADA: Yes
Color: Chrome
Faucet Features: Battery Operated
Style: Sensor Operated
Mount Type: Deck Mount
Material: Metal
Mpn # 3012660
Weight 10.42 lbs.
  • 1.5 gpf (5.7 Lpf)
  • Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer
  • PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
  • 3/4" I.P.S. Screwdriver Bak-Chek Angle Stop
  • Free Spinning Vandal Resistant Stop Cap
  • Adjustable Tailpiece
  • High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
  • Spud Coupling and Flange for 3/4" Top Spud
  • Sweat Solder Adapter with Cover Tube and Cast Wall Flange with Set Screw
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Flush Accuracy Controlled by CID Technology
  • Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker molded from PERMEX Rubber Compound for Chloramine Resistance
  • ADA Compliant Optima SMOOTH Hardwired Infrared Sensor for automatic "Hands-free" operation
  • Sensor with Automatic Range Adjustment
  • Chrome Plated Metal Sensor Housing
  • Mechanical Manual Override Flush Handle
  • User in View Flashing LED
  • 25 to 80 psi Operating Range
