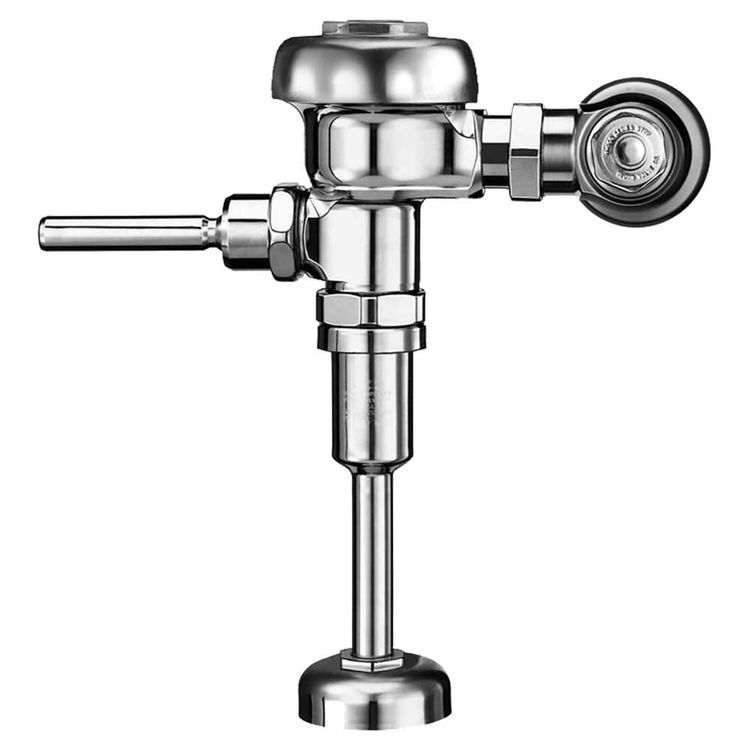

Sloan 3082653 Sloan Regal 186 XL Exposed Urinal Flushometer (1.5 gpf/5.7 Lpf)

Product Options

Printer friendly page

Sloan Regal 186 XL Exposed Urinal Flushometer (1.5 gpf/5.7 Lpf)

SKU: 2763
$112.78/ea
 Free Shipping!
Save 49% · Retail: $222.20

In Stock and Ready to Ship
More Buying Options


Ships From Price Qty
Spring Valley Nevada Warehouse
Ships in 4-6 days
$112.78/ea 12
Tennessee US Warehouse
Ships in 5-7 Days
$145.51/ea 37
Order From Manufacturer
Available to Ship in 2-3 weeks
$112.78/ea

About the Sloan 3082653

The Sloan Regal 186 XL is an exposed urinal flushometer for top spud bowls that are either on the floor or hanging on the wall. It has a flush cycle that uses 1.5 gallons per flush (5.7 liters per flush) and is controlled by Para-Flo Technology for low consumption flush precision. To assure water is low, this incorporates an ADA-compliant metal oscillating non-hold-open handle and no external volume adjustment. It also has the PERMEX flushometer diaphragm, which is a synthetic rubber diaphragm with dual filtered fixed bypass and is one of the industry's most advanced and innovative flushometer diaphragms. For chloramine resistance, this rubber compound is used in the handle packing, stop seat and vacuum breaker.


Included with the 186 XL flushometer are a control stop plugsweat solder adapter with a cover tube, an adjustable tailpiecespud coupling and spud flange for 3/4" top spud, a vacuum breaker flush connection, and a cast wall flange with a set screw, as well as a 3/4" I.P.S. screwdriver Bak-Chek Angle Stop. This flushometer is built of high copperlow zinc brass castings to ensure resistance to the dezincification process. The Sloan Regal 186 XL should have a minimum distance of 2-1/4" from its center to the finished wall upon installation. Overall, the valve body, cover, tailpiece, and control stop conform with ASTM Alloy Classification for Semi-Red Brass.


Sloan is the leading maker of water-saving products in the world. They've set the standard for water efficiency in the industry, with products that are made to last. Their commitment to safeguarding life's most valuable resource is demonstrated via increased levels of performance and accountability. At PlumbersStock, we want our clients to be able to experience Sloan's excellent discoveries, thus we sell their items at a low cost. We look forward to seeing your purchase from us. You may also check other bathroom products like bidet seats and accessories here. Add to cart now!

Product Details

Manufacturer: Sloan
Product: Flush Valve
Product Collection: Regal
Type: Closet/ urinal
ADA: Yes
Style: Manual
Color: Chrome
Mount Type: Deck Mount
Material: Brass
Mpn # 3082653
Shipping Dimensions 10.0" x 10.0" x 4.0"
Weight 6.46 lbs.

Product Features

  • 1.5 gpf / 5.7 Lpf Water Saver
  • 11-1/2" Rough-In
  • Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer
  • ADA Compliant Metal Oscillating Non-Hold-Open Handle
  • 3/4" I.P.S. Screwdriver Bak-Chek Angle Stop
  • Control Stop Plug
  • Sweat Solder Adapter with Cover Tube
  • Adjustable Tailpiece
  • Cast Wall Flange with Set Screw
  • Vacuum Breaker Flush Connection
  • Spud Coupling Wall and Spud Flange for 3/4" Top Spud
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Handle and No External Volume Adjustment to Ensure Water Conservation
  • Low Consumption flush accuracy controlled by Para-Flo Technology
  • Handle Packing, Stop Seat and Vacuum Breaker to be Molded from PERMEX Rubber Compound for Chloramine Resistance
  • ASSE 1037 Compliant
