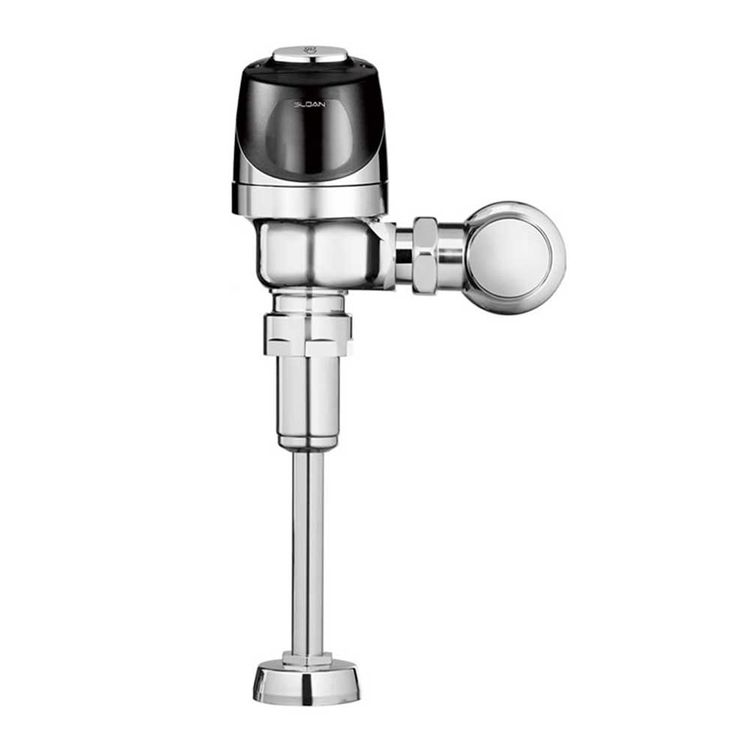

About the Sloan G2 Plus 8186-1.0 Exposed Sensor Urinal Flushometer (3250401)

Sloan 8186-1.0 Exposed Chrome Plated Battery Operated Sensor Operated Urinal Water Saver Flush Valve. The Sloan 8186-1.0 Complies with ADA Requirements, Low Consumption 1.0 Gallon Per Flush Diaphragm type Flushometer also features a 1" IPS Bak-Check Screwdriver Stop, Control Stop Plug and Has no External Water Adjustment to Ensure Water Conservation. The Sloan 8186-1.0 is constructed of a high copper, low Zinc Casting for dezincification resistance.

Product: Flush Valve
Style: Sensor Operated
Mount Type: Wall Mount
Manufacturer: Sloan
Mpn # 3250401
Shipping Dimensions 9.0" x 16.0" x 4.0"
Weight 8.00 lbs.
  • Optima Plus 1.0 gpf (3.8 Lpf)
  • Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer for either left or right hand supply
  • PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • Flex Tube Diaphragm designed for improved life and reduced maintenance
  • ADA Compliant OPTIMA Plus Battery Powered Infrared Sensor for automatic "No Hands" operation
  • Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
  • Latching Solenoid Operator
  • Engineered Metal Cover with replaceable Lens Window
  • Courtesy Flush Override Button
  • Four (4) Size AA alkaline Batteries included: Duracell with DURALOCK Power Preserve Technology-guaranteed for up to 10 years in storage
  • Low Battery Flashing LED
  • Infrared Sensor Range Adjustment Screw
  • Initial Set-up Range Indicator Light (first 10 minutes)
  • 3/4" I.P.S. Screwdriver Bak-Chek Angle Stop
  • Free Spinning, Vandal Resistant Stop Cap
  • Adjustable Tailpiece
  • High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
  • Spud Coupling and Flange for 3/4" Top Spud
  • Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Flush Accuracy Controlled by CID Technology
  • Diaphragm, Stop Seat and Vacuum Breaker to be molded from PERMEX Rubber Compound for Chloramine resistance
  • 100% of the energy used in manufacturing is offset with Renewable Energy Sources - Wind Energy
