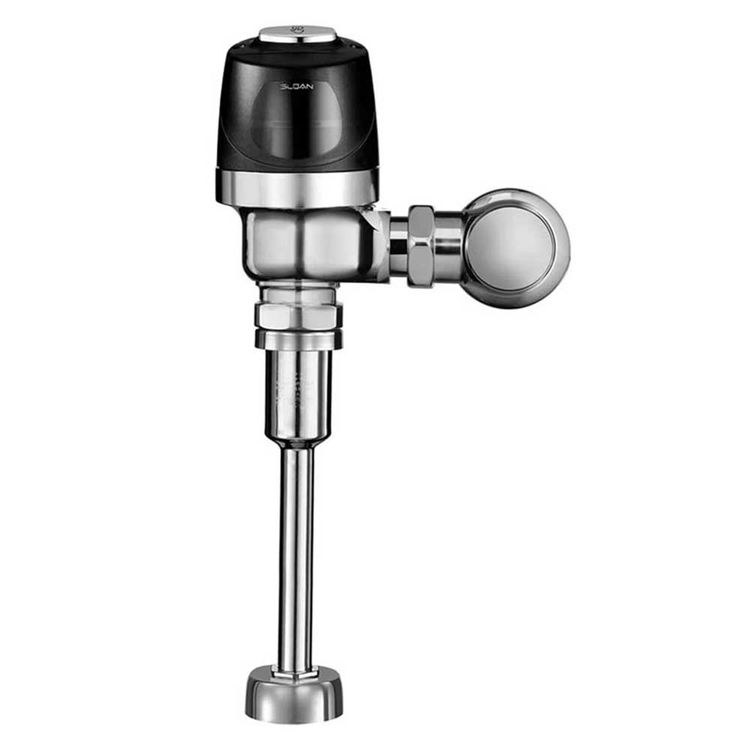

SLOAN ECOS 8186-0.5 3/4" TOP SPUD URINAL 0.5 GPF SENSOR FLUSH VALVE

SKU: 92714

$340.20/ea
Save 39% · Retail: $555.50

  Available to Ship in 2-3 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$340.20/ea

About the Sloan 3370431

S3370431 SLOANVALVECOMPANY 05 GPF EXP BATRY PWR URN FLSHMTR

Product Details

Product: Top Spud Flush Valve
Manufacturer: Sloan
Style: Sensor Operated
Product Collection: Ecos
Mount Type: Wall Mount
ADA: Yes
Color: Polished Chrome
Mpn # 3370431
Weight 8.62 lbs.

Product Features

  • 0.5 gpf (1.9 Lpf)
  • Quiet, Exposed, Chrome Plated Urinal flushometer for either left or right hand supplyFor flushing volumes 0.125 gpf and 0.25 gpf:
  • Pressure compensating cartridge assembly
  • Synthetic rubber seals for chloramine resistance For flushing volume 0.5 gpf:
  • PERMEX Synthetic Rubber Flex Tube Diaphragm with twin linear filtered bypass and vortex cleansing action
  • Flush Accuracy Controlled by CID Technology For all flushing volumes:
  • Latching Solenoid Operator
  • Engineered Metal Cover with replaceable Lens Window
  • User friendly three (3) second Flush Delay
  • Courtesy Flush Override Button (optional)
  • Four (4) Size AA alkaline Batteries included: Duracell with DURALOCK Power Preserve Technology-guaranteed for up to 10 years in storage
  • Low Battery Flashing LED
  • Infrared Sensor Range Adjustment Screw
  • Initial Set-up Range Indicator Light (first 10 minutes)
  • 3/4" I.P.S. Screwdriver Bak-Chek Angle Stop
  • Free Spinning, Vandal Resistant Stop Cap
  • Adjustable Tailpiece
  • Spud Coupling and Flange for 3/4" Top Spud
  • Reduces water usage up to 80% over standard sensor urinal
  • ADA Compliant Sloan ECOS Battery powered Infrared Sensor for automatic "No Hands" operation
  • Infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
  • High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
  • Sweat Solder Adapter with Cover Tube and Cast Wall Flange with Set Screw
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Stop Seat and Vacuum Breaker molded from PERMEX Rubber Compound for Chloramine resistance
