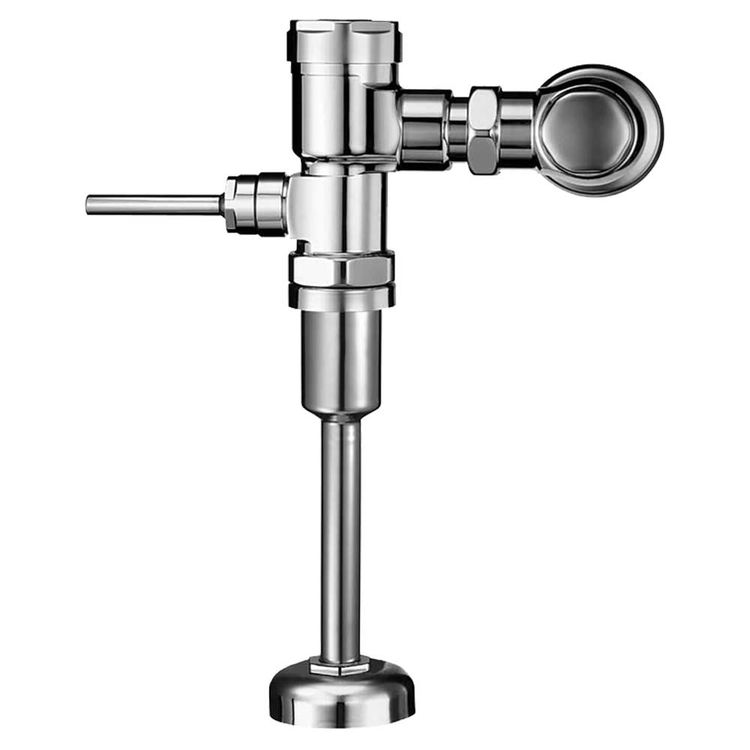

About the Sloan GEM 2 186-YBYC Exposed Urinal Flush Valve (3072604)

Sloan Gem 2 186-YBYC Exposed Urinal Flush Valve for Water Saver 1.5 Gallon Per Flush Urinals with 3/4" Top Spud. The Sloan Gem 2 186-YBYC features a Fixed Volume Piston with Filtered O-Ring Bypass a 3/4" IPS Screwdriver Bak Check Stop Valve With Vandal Resistant Cap, Sweat Solder Adapter, Cast Wall Flange with Set Screw and is Cast from High Copper and Low Zinc to Resist Dezincification. The Sloan Gem 2 186-YBYC Features a Non-hold Open Handle and has no External Volume Adjustmens to aid in Water Conservation. The Sloan Gem 2 186-YBYC uses PERMEX Rubber Compound in the Handle Packing, Main Seat, Stop Seat and Vacuum Breaker for increased Chloramine Resistance. Sloan Gem 2 186-YBYC Complies with ADA Requirements.

Flush Valve Type: Exposed
Faucet Features: ADA
Style: Manual
Manufacturer: Sloan
Product: Top Spud Flush Valve
Color: Chrome
Mpn # 3072604
Weight 5.51 lbs.
  • 11-1/2" Rough-In
  • Quiet, Exposed, Piston Type, Chrome Plated Urinal Flushometer
  • Fixed Volume Piston with Filtered O-ring Bypass
  • ADA Compliant Metal Oscillating Non-Hold-Open Handle
  • 3/4" I.P.S. Screwdriver Bak-Chek Angle Stop
  • Locking Vandal Resistant Stop Cap
  • Adjustable Tailpiece
  • Vacuum Breaker Flush Connection
  • Spud Coupling, Wall and Spud Flanges for 3/4" Top Spud
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Handle and No External Volume Adjustment to Ensure Water Conservation
  • Handle Packing, Stop Seat and Vacuum Breaker Molded from PERMEX Rubber Compound for Chloramine Resistance
  • Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME A112.19.2.
