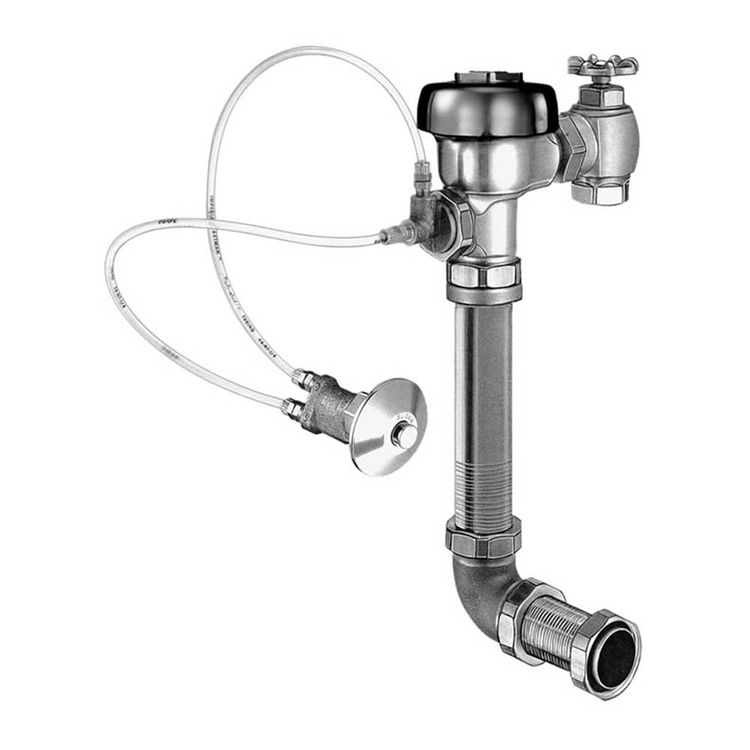

Sloan Regal 9603 XL - Hydraulic Prison Concealed Water Closet Flushometer

SKU: 93312

$167.96/ea
Save 35% · Retail: $258.40

  Available to Ship in 2-3 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$167.96/ea

About the Sloan 3988143

Sloan Regal 9603-XL Concealed Prison Chrome Plated Hydraulically Operated Closet Water Saver Flush Valve. The Sloan Regal 9603-XL Complies with ADA Requirements with the Non-Hold Open Push Button, Water Saving 3.5 Gallon Per Flush Hydraulic type Flushometer also features a 1" IPS Bak-Check Wheel Handle Stop, Control Stop Plug, and Has no External Water Adjustment to Ensure Water Conservation. The Sloan Regal 9603-XL is constructed of a high copper, low Zinc Casting for dezincification resistance.

Product Details

Product: Back Spud Flush Valve
Manufacturer: Sloan
Faucet Part Feature: Closet
Style: Prison Model
Faucet Features: ADA
Mpn # 3988143
Weight 8.92 lbs.

Product Features

  • 14-1/2" Rough-In
  • Quiet, Concealed, Diaphragm Type, Rough Brass Closet Flushometer for either left or right hand supply
  • ADA Compliant Non-Hold-Open feature type Actuator (specify Actuator type listed below)
  • 1" I.P.S. Wheel Handle Bak-Chek Angle Stop
  • Adjustable Tailpiece and Vacuum Breaker
  • Elbow Flush Connection and Coupling for 1-1/2" NPT Back Inlet (for connection in the pipe chase ? flush connection through the wall not provided by Sloan)
  • Exposed parts Chrome Plated
  • Sweat Solder Adaptor
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Push Button, Fixed Metering Bypass, No External Volume Adjustment to Ensure Water Conservation and Low Consumption Flush Accuracy
  • Handle Packing, Stop Seat and Vacuum Breaker molded from PERMEX Rubber Compound for Chloramine Resistance
  • Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037.

Resources

Reviews

4.5 out of 5 rating is our rating for PlumbersStock, we got that rating because we have lots of experience and great people with expertise in plumbing. BUT WE WANT YOUR HELP. This product doesn't have any reviews yet, and we don't want to write our own reviews. It is more valuable to us that the customers get to share their experience with our products. Please, if you have any experience with this product, take a moment to share and help someone else who is trying to make a decision. Thank you!

Questions & Answers

*PLUMBERSSTOCK EXPERT* responded:

Good day! We appreciate your interest in our Sloan Regal 9603 XL Closet Flush Valve. Yes, this Sloan 3988143 Hydraulic Prison Regal Floushometer comes with the push button assembly and the hydraulic lines. It also comes with the actuator and the vacuum breaker. Here is the product specification sheet for more information that you may need. If you wish to make a purchase, just click Add To Cart and fill in the required fields and you're good to go! Should you have further questions, please let us know. We are not here to just make a sale. We want YOU to be confident and happy in your PlumbersStock purchases. Thank you for trusting plumbersstock.com!
