Sloan Regal 9603-3.5-XL-MBMP Concealed Manual Water Closet Hydraulic Flushometer w/ XL Sweat Solder Adapter Kit - 3.5 gpf, Sloan 3988118

SKU: 93314
$313.69/ea
 Free Shipping!
Save 35% · Retail: $482.60

  Available to Ship in 2-3 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$313.69/ea

About the Sloan 3988118

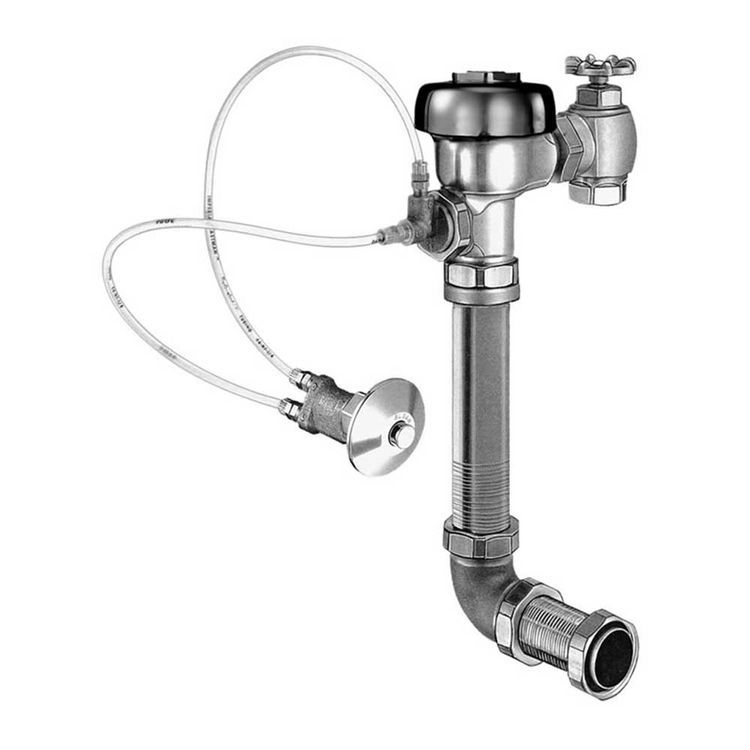

Sloan Regal 9603-XL-MBMP Concealed Prison Chrome Plated Hydraulically Operated Closet Water Saver Flush Valve. The Sloan Regal 9603-XL-MBMP Complies with ADA Requirements with the Non-Hold Open Metal Button Panel Mounted, Water Saving 3.5 Gallon Per Flush Hydraulic type Flushometer also features a 1" IPS Bak-Check Wheel Handle Stop, Control Stop Plug, and Has no External Water Adjustment to Ensure Water Conservation. The Sloan Regal 9603-XL-MBMP is constructed of a high copper, low Zinc Casting for dezincification resistance.

Product Details

Flush Valve Type: Concealed
Faucet Features: ADA
Style: Prison Model
  Impact Drill
Faucet Part Feature: Closet
Manufacturer: Sloan
Product: Back Spud Flush Valve
  Medical
Product Collection: Regal
Mpn # 3988118
Weight 9.77 lbs.

Product Features

  • Flush Volume: 3.5 gpf (13.2 Lpf)
  • Finish: Rough Brass (RB)
  • Valve: Diaphragm
  • Valve Body Material: Semi-red Brass
  • Fixture Type: Water Closet
  • Fixture Connection: Rear
  • Rough-In Dimension: 16" (406mm)
  • Spud Coupling: 1 " (38mm)
  • Supply Pipe: 1" (25mm)
  • Adapter: XL Sweat Solder Adapter Kit (XL)
  • ADA Compliant Non-Hold-Open Actuator (specify Actuator type listed below)
  • Vacuum Breaker
  • Non-Hold-Open Push Button, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Handle Packing, Stop Seat and Vacuum Breaker Molded from PERMEX Rubber Compound for Chloramine Resistance
  • 1 I.P.S. Wheel Handle Bak-Chek Angle Stop
  • Elbow Flush Connection and Coupling for 112 NPT Back Inlet (for connection in the pipe chase flush connection through the wall not provided by Sloan)
  • Actuator not included, order separately. Specify actuator type based on Hydraulic Push Button Options
