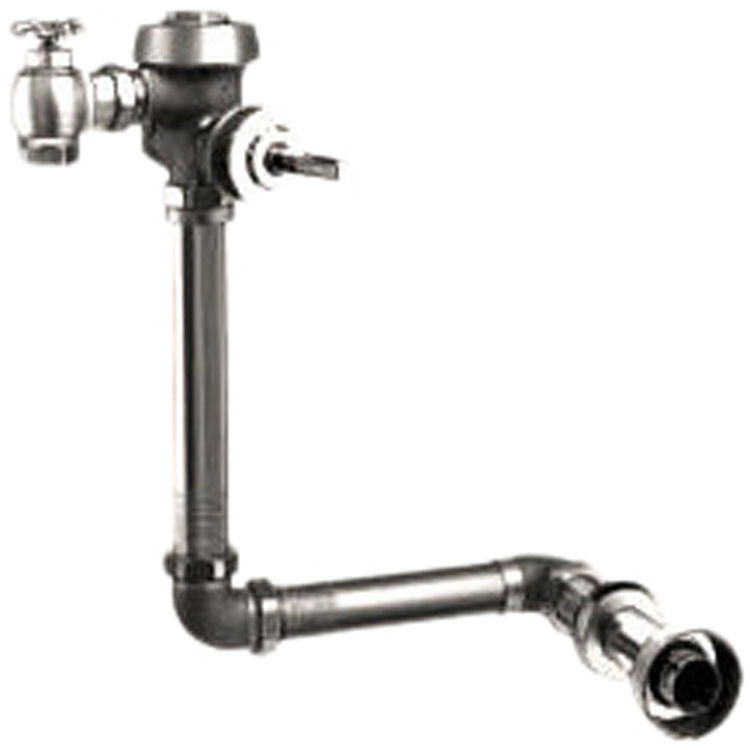

Sloan 3451113 Sloan Royal 140 ESS-1.6-OR-W/BOX-11-12-3/4-LDIM-HW Concealed Sensor Hardwired Water Closet Flushometer (3451113)

Product Options

Printer friendly page

Sloan Royal 140 ESS-1.6-OR-W/BOX-11-12-3/4-LDIM-HW Concealed Sensor Hardwired Water Closet Flushometer (3451113)

SKU: 93433
 Free Shipping!
Save 35% · Retail: $1,294.70

  Available to Ship in 2-3 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Sloan 3451113

Sloan Royal 140-1.6-WB-ES-S Concealed Chrome Plated Electronically Operated Closet Low Consumption Flush Valve. The Sloan Royal 140-1.6-WB-ES-S Complies with ADA Requirements with Infrared Sensor, Water Saving 1.6 Gallon Per Flush Diaphram type Flushometer also features a 1" IPS Bak-Check Screwdriver Stop, Control Stop Plug, and Has no External Water Adjustment to Ensure Water Conservation. The Sloan Royal 140-1.6-WB-ES-S is constructed of a high copper, low Zinc Casting for dezincification resistance.

Product Details

Product: Medical
  Back Spud Flush Valve
Faucet Part Feature: Closet
Style: Billiard Table
  Sensor Operated
Faucet Features: ADA
Manufacturer: Sloan
Product Collection: Royal
Mpn # 3451113
Weight 21.81 lbs.

Product Features

  • 11-3/4" 12-3/4" L Dimension
  • 1.6 gpf (6.0 Lpf)
  • Quiet, Concealed, Diaphragm Type, Rough Brass Closet Flushometer
  • PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • Optima EL-1500-L Self-Adaptive Infrared Sensor with Indicator Light
  • User friendly three (3) second Flush Delay
  • Courtesy Flush Override Button
  • Non-Hold-Open Integral Solenoid Operator
  • 13" x 17" EASY ACCESS Wall Box with Stainless Steel Access Panel and
  • Vandal Resistant Screws
  • 1" I.P.S. Wheel Handle Bak-Chek Angle Stop
  • Adjustable Tailpiece
  • High Back Pressure Vacuum Breaker Flush Connection, Spud Coupling and Flanges for 1-1/2" Exposed Back Spud
  • Sweat Solder Adapter
  • Chrome Plated Exposed Flushometer Parts
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Integral Solenoid Operator, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Flush Accuracy Controlled by CID Technology
  • Diaphragm, Stop Seat and Vacuum Breaker to be molded from PERMEX Rubber Compound for Chloramine Resistance
