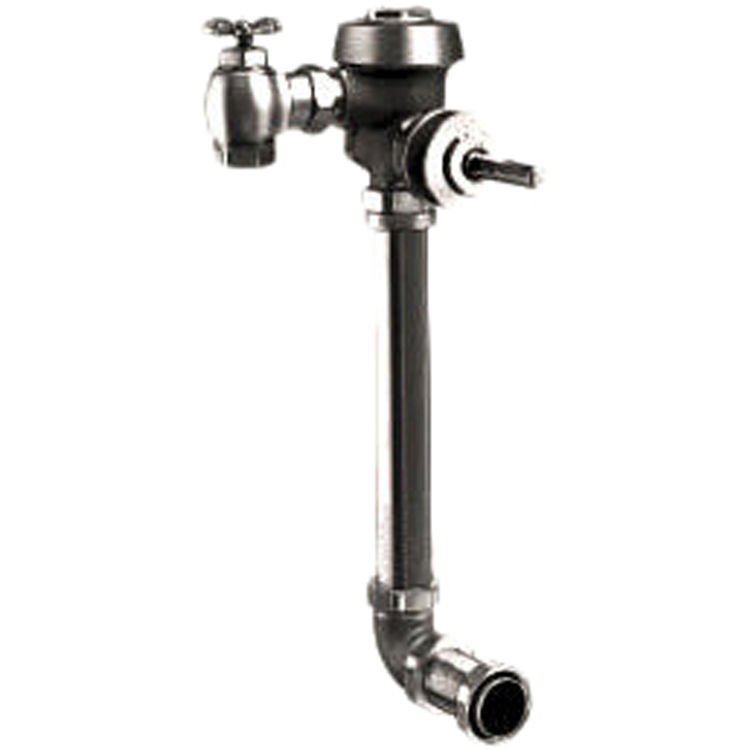

Sloan 3913025 Sloan Royal 190-3.5-12-3/4-LDIM Concealed Manual Urinal Flushometer (3913025)
View 2 of Sloan 3913025 Sloan Royal 190-3.5-12-3/4-LDIM Concealed Manual Urinal Flushometer (3913025)
View 3 of Sloan 3913025 Sloan Royal 190-3.5-12-3/4-LDIM Concealed Manual Urinal Flushometer (3913025)

Product Options

Sloan Royal 190-3.5-12-3/4-LDIM Concealed Manual Urinal Flushometer (3913025)

SKU: 93613
Manufacturer Image
-35.0%
$ 255 .26 / ea
$ 392 .70 / ea
visa mastercard american-express discover paypal crypto
local_shipping Free Shipping
Qty
remove
add
inventory_2 Unlimited Availability
add_shopping_cart Add To Cart
local_shipping Available to Ship in 2-3 weeks
factory Orders from the Manufacturer

About the Sloan Royal 190-3.5-12-3/4-LDIM Concealed Manual Urinal Flushometer (3913025)

Sloan Royal 190 is a Concealed Urinal Flushometer for 1 1/4" back spud urinals. 12 3/4" from center of valve to finished wall. Quiet, Concealed, Diaphragm Type, Rough Brass Urinal Flushometer for either left or right hand supply. Sloan Royal 190 has 3.5 gpf and also is ADA Compliant.

Product: Medical
  Back Spud Flush Valve
Manufacturer: Sloan
Style: Armoire Entertainment
  Manual
Faucet Features: ADA
Product Collection: Royal
Mpn # 3913025
Weight 11.12 lbs.
  • 14-1/2" Rough-In
  • 10-3/4" L Dimension
  • Quiet, Concealed, Diaphragm Type, Rough Brass Urinal Flushometer for either left or right hand supply
  • PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
  • 1" I.P.S. Wheel Handle Bak-Chek Angle Stop
  • Adjustable Tailpiece
  • High Back Pressure Vacuum Breaker
  • Spud Coupling for 1-1/4 Concealed Back Spud Urinals
  • Sweat Solder Adapter
  • Elbow Flush Connection
  • Exposed parts Chrome Plated
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Flush Accuracy Controlled by CID Technology
  • Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker to be molded from PERMEX Rubber Compound for Chloramine Resistance
  • Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME 112.19.6, and Military Specification V-29193.
