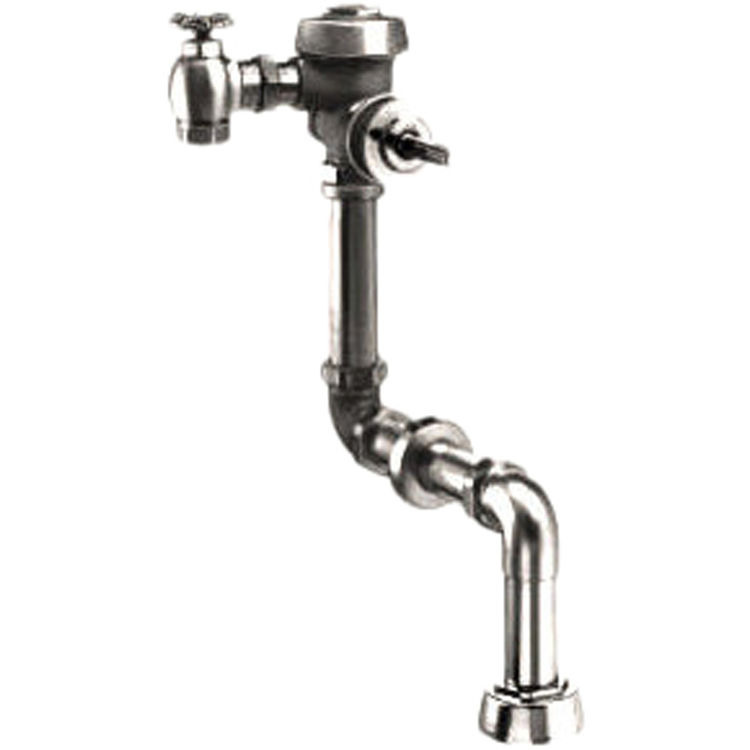

Sloan Royal 192-1.0-8-3/4-LDIM Concealed Manual Urinal Flushometer (3912927)

SKU: 93643
Manufacturer Image
-35.0%
$ 389 .77 / ea
$ 599 .65 / ea
visa mastercard american-express discover paypal crypto
local_shipping Free Shipping
Qty
inventory_2 Unlimited Availability
add_shopping_cart Add To Cart
local_shipping Available to Ship in 2-3 weeks
factory Orders from the Manufacturer

Product Details

Product: Educational
  Top Spud Flush Valve
Manufacturer: Sloan
Style: Armoire Entertainment
  Manual
Faucet Features: ADA
Product Collection: Royal
Mpn # 3912927
Weight 11.42 lbs.

About the Sloan Royal 192-1.0-8-3/4-LDIM Concealed Manual Urinal Flushometer (3912927)

Sloan Royal 192 is a Concealed Urinal Flushometer, for 1 1/4" top spud urinals. 1.0 gpf and ADA Compliant. Sloan 192 is a Quiet, Concealed, Diaphragm Type, Rough Brass Urinal Flushometer for either left or right hand supply.

  • 14-1/2" Rough-In
  • 8-3/4" L Dimension
  • Quiet, Concealed, Diaphragm Type, Rough Brass Urinal Flushometer for either left or right hand supply
  • PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
  • 1" I.P.S. Wheel Handle Bak-Chek Angle Stop
  • Adjustable Tailpiece
  • High Back Pressure Vacuum Breaker
  • Spud Coupling, Wall and Spud Flanges for 1-1/4 Exposed Top Spud Urinals
  • Sweat Solder Adapter
  • Elbow Flush Connection
  • Exposed parts Chrome Plated
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Flush Accuracy Controlled by CID Technology
  • Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker to be molded from PERMEX Rubber Compound for Chloramine Resistance
  • Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME 112.19.6, and Military Specification V-29193.
