Sloan 3913319 Sloan Royal 197-1.0-11-3/4-LDIM Concealed Manual Urinal Flushometer (3913319)

Product Options

Sloan Royal 197-1.0-11-3/4-LDIM Concealed Manual Urinal Flushometer (3913319)

SKU: 93702
Manufacturer Image
-35.0%
$ 396 .60 / ea
$ 610 .15 / ea
visa mastercard american-express discover paypal crypto
local_shipping Free Shipping
Qty
remove
add
inventory_2 Unlimited Availability
add_shopping_cart Add To Cart
local_shipping Available to Ship in 2-3 weeks
factory Orders from the Manufacturer

About the Sloan Royal 197-1.0-11-3/4-LDIM Concealed Manual Urinal Flushometer (3913319)

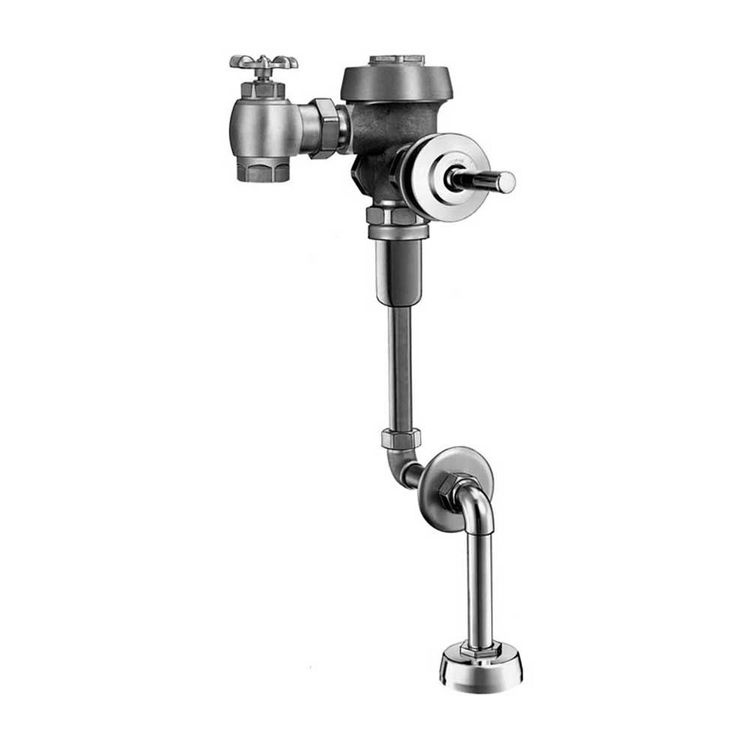

Sloan Royal 197 is a Concealed Urinal Flushometer, for 3/4" top spud urinals.1.0 gpf, ADA Compliant. 11 3/4" from center of valve to finished wall. Sloan Royal 197 is a Quiet, Concealed, Diaphragm Type, Rough Brass Urinal Flushometer for either left or right hand supply.

Product: Educational
  Top Spud Flush Valve
Manufacturer: Sloan
Style: Armoire Entertainment
  Manual
Faucet Features: ADA
Product Collection: Royal
Mpn # 3913319
Weight 10.79 lbs.
  • 11-3/4" L Dimension
  • Quiet, Concealed, Diaphragm Type, Rough Brass Urinal Flushometer for either left or right hand supply
  • PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
  • 3/4" I.P.S. Wheel Handle Bak-Chek Angle Stop
  • Adjustable Tailpiece
  • High Back Pressure Vacuum Breaker
  • Spud Coupling for 3/4" Exposed Top Spud Urinals
  • Sweat Solder Adapter
  • Elbow Flush Connection
  • Exposed parts Chrome Plated
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Flush Accuracy Controlled by CID Technology
  • Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker to be molded from PERMEX Rubber Compound for Chloramine Resistance
  • Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME 112.19.2.
